- Regular price
- $4,499.00
NOTE: TechForge Direct is an authorized dealer for Full Spectrum Laser within the United States. This product is sold new, in original manufacturer packaging, with applicable manufacturer warranty, and is available for sale within the United States only.
Estimated shipping time
Estimated shipping time
Order cutoff: 5:00 PM Eastern Time
Handling time: 1 to 3 business days
Transit time: 3 to 7 business days
Total delivery time: 4 to 10 business days
These are estimates, not guarantees. We do not hold stock — your equipment is ordered from the manufacturer once you order. If your item is on back-order, or the manufacturer confirms a longer lead time, we will contact you promptly and you may cancel for a full refund with no fee.
Free shipping is curbside or dock-to-dock delivery to a commercial address, or parcel delivery for smaller items. Liftgate, residential, limited-access and inside delivery, and rigging, are not included — typically $150 to several hundred dollars, quoted in writing and charged only with your prior approval.
Freight deliveries require a scheduled appointment and someone must be present to sign. Need a firm date before you buy? Call (720) 575-1376 or email support@techforgedirect.com with the model number.
What is your Return Policy?
What is your Return Policy?
30 days to request a return from the date you receive your order. Email support@techforgedirect.com with your order number and reason. We will assess your request and, once approved, send you an RMA number and detailed instructions. Do not ship anything back before you have an RMA number.
1. Return shipping costs
You as the customer are responsible for paying the return shipping costs of the items in your order. On freight-shipped equipment this can be substantial — we quote the exact amount in writing before you commit, so you decide with the full figure in front of you.
2. Preparing your return
Download and print the return shipping label provided in our email and affix the label to the outside of the package. The item must be unopened, unused and in delivery condition, including all original packaging and accessories, in a condition such that it can be re-sold as new. Machines must not have been powered on or put into service. Photographic evidence is required.
3. Restocking fee
Change-of-mind returns carry a 25% restocking fee, deducted from your refund. On an $8,000 machine that is $2,000.
4. Damaged or incorrect products
Note it immediately when signing for delivery and send photographs to support@techforgedirect.com the day of delivery. We will ensure you get the correct product you ordered, undamaged, as soon as possible, at no cost to you — no return shipping charge and no restocking fee.
5. Refunds
Processed within 7 days of your returned item being received and inspected.
6. Cancellations
Cancel any time before your order ships for a full refund with no fee.
See our full Return and Refund Policy and Cancellation Policy.
Weight: 150.0 lbs
Dimensions: 38.0" × 27.0" × 15.0"
Product Description
CO2 Laser Applications
CO2 lasers operate at 10.6 μm wavelength which is strongly absorbed by organic materials. This makes them the default choice for cutting and engraving wood, acrylic, leather, fabric, paper, rubber, foam, and stone. Engraving quality on wood is outstanding and CO2 is the only practical way to cleanly cut clear acrylic. CO2 is also excellent at removing paint from tumblers and coated surfaces — the beam ablates the coating while leaving the metal substrate untouched.
Best Fit
- Signage, awards, gifts, and personalization shops
- Prototyping and production cutting of sheet materials
- Tumbler and drinkware customization
Common Materials
- Wood, plywood, MDF, bamboo
- Acrylic, delrin, mylar, and most plastics (not PVC)
- Leather, fabric, felt, paper, cardstock, foam, rubber
Typical Outputs
- Cut parts, engraved wood signs, and acrylic displays
- Leather goods, fabric patterns, and paper crafts
- Tumbler paint removal, glass engraving, stone etching
Why Teams Choose CO2
- Cuts wood, acrylic, leather, fabric, paper, foam, and rubber
- Excellent engraving quality on wood — photo-realistic detail
- Removes paint and coatings from tumblers without damaging metal underneath
- Most applications on non-metals; for metals use UV or fiber

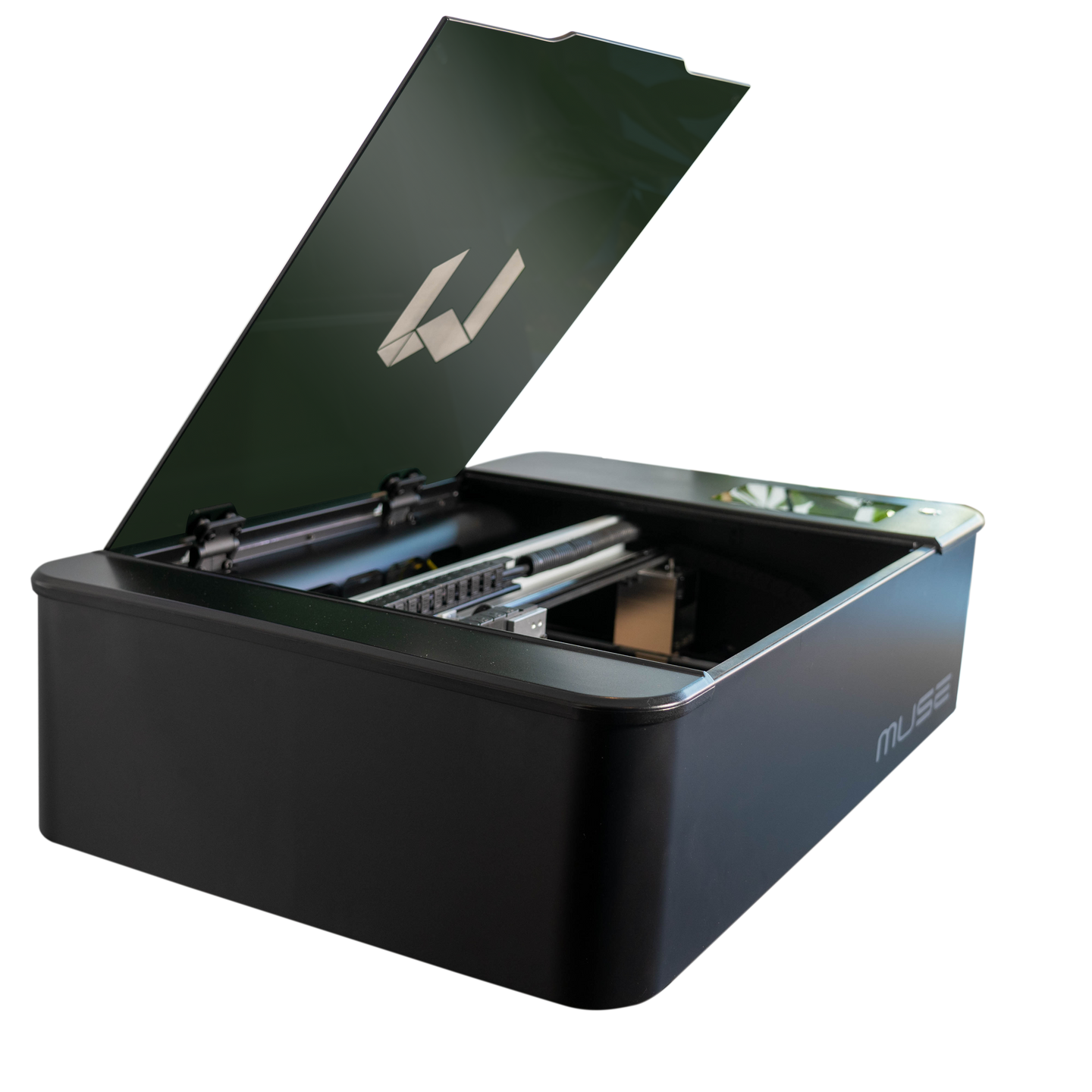

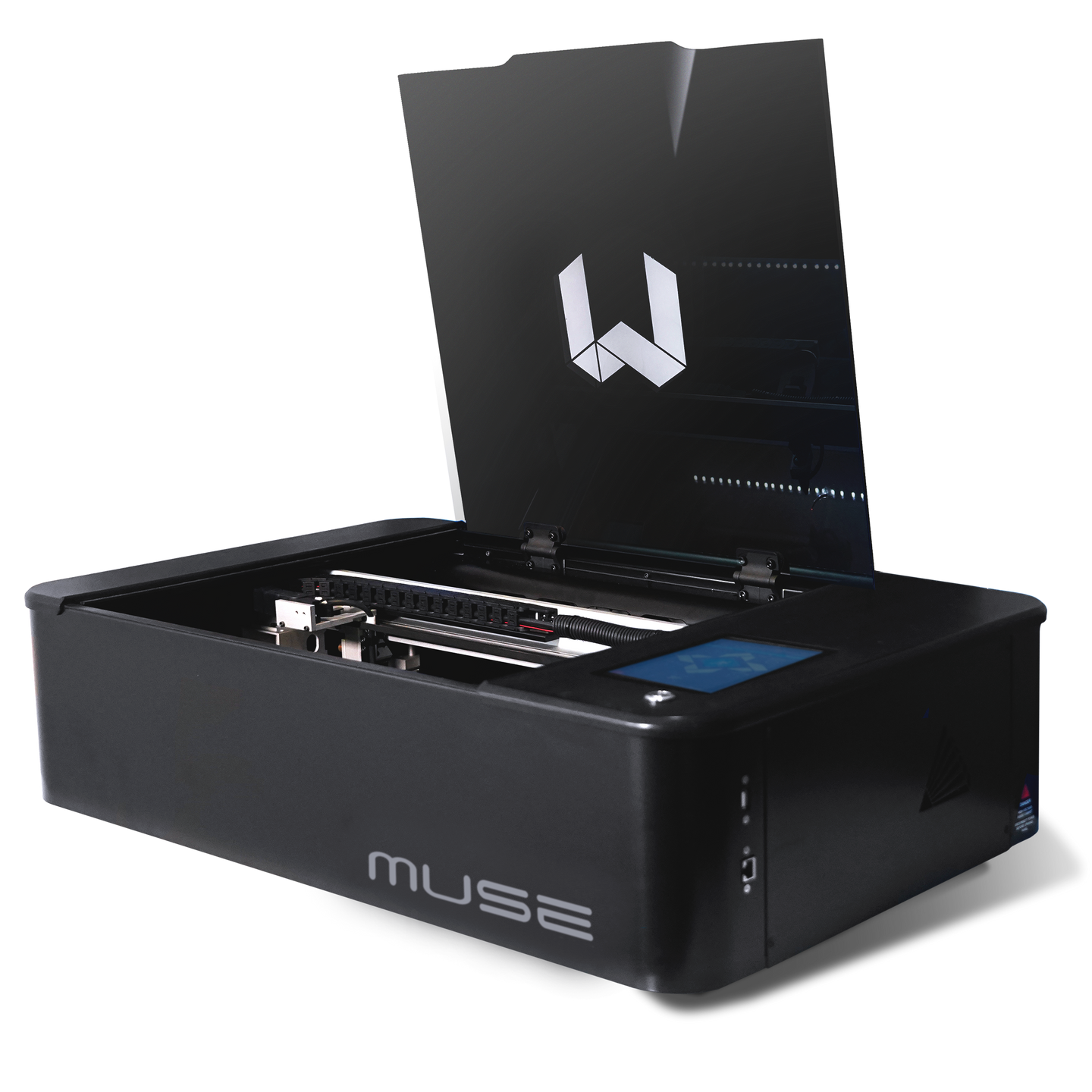

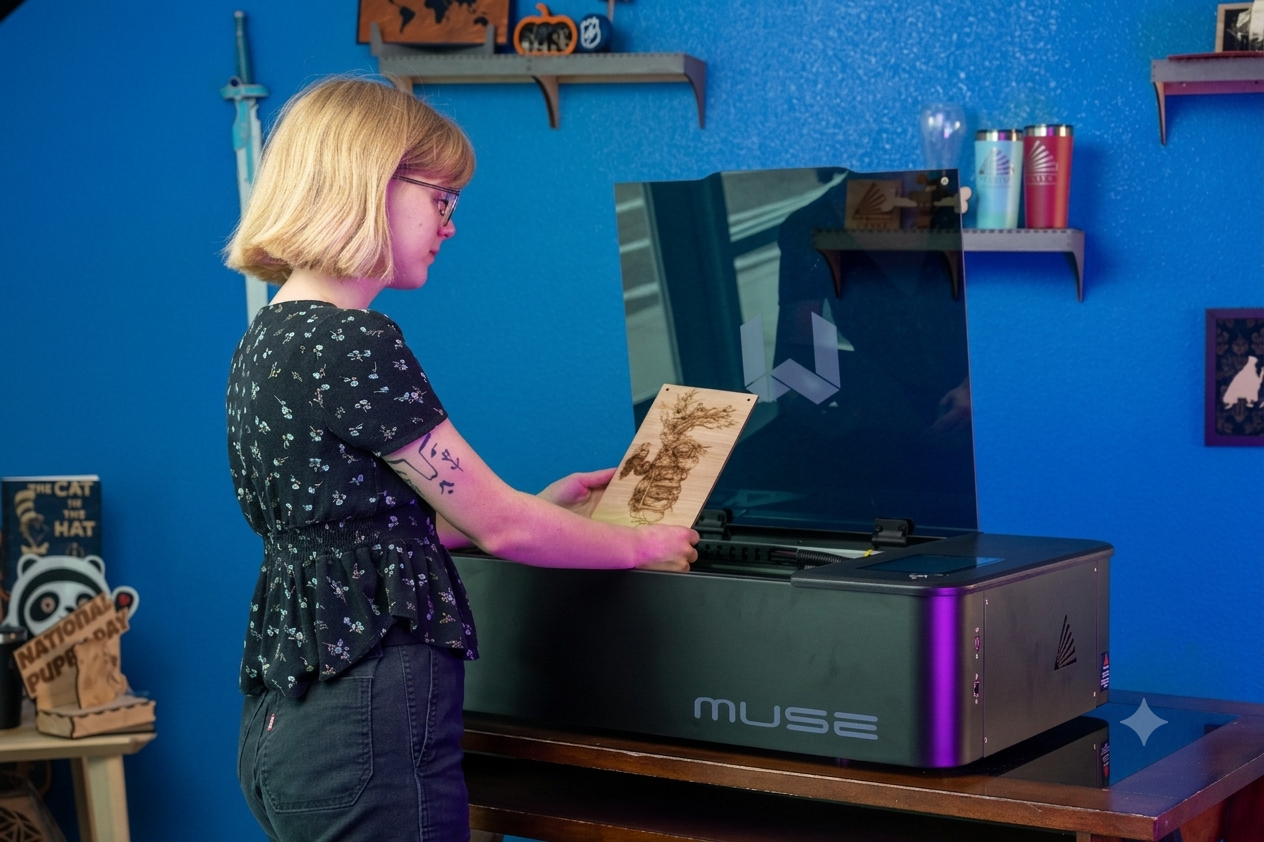

Muse 3D Autofocus 20"x12" Desktop CO2 Laser
With a removable floor, industry leading software, and sturdy metal construction, the Muse 3D/Coolbox laser cutting and engraving machine bundle will allow you to easily take your creations to the next level using the 3D Camera and Auto-focus capabilities. Pair Muse 3D with an Air Exhaust Option and Optional Rotary for even more capabilities!
- BROWSER BASED SOFTWARE - Windows, Mac and Linux compatible.

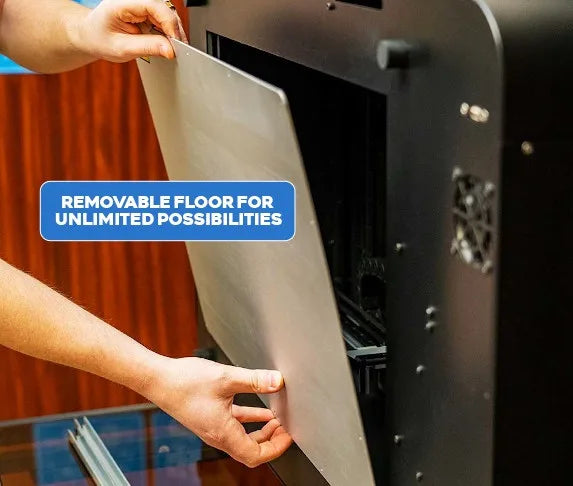

- REMOVABLE FLOOR - enables users to engrave objects larger than the machine itself.
- ROTARY ATTACHMENT - (optional) allows for cylindrical objects such as cups to be engraved.

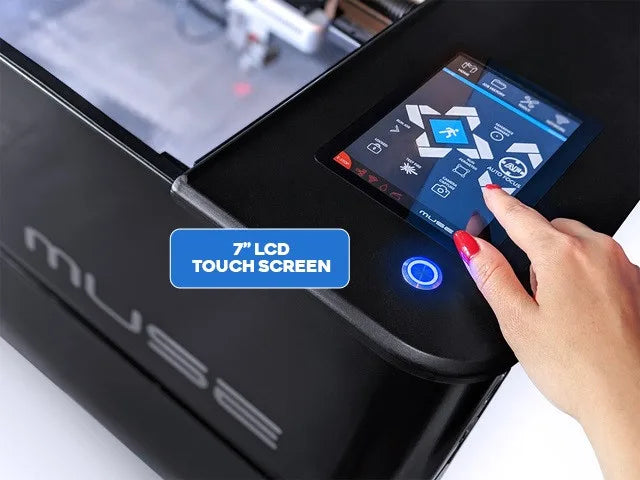

- 7" LCD TOUCH SCREEN - allows users to control major functions right from the machine.
- 3D CAMERA - takes 3D images of what's inside your laser for extremely accurate design placement, saving you money on materials.
- AUTO FOCUS - Motorized Z Axis focuses for you before every engraving
- TECHNICAL SUPPORT via phone and email.
- 1 YEAR WARRANTY
Tech Specs
Working Area
| Engraving Area | 20" x 12" (508mm x 305mm) |
| Z-Height | 2.5" |
Weight & Dimensions

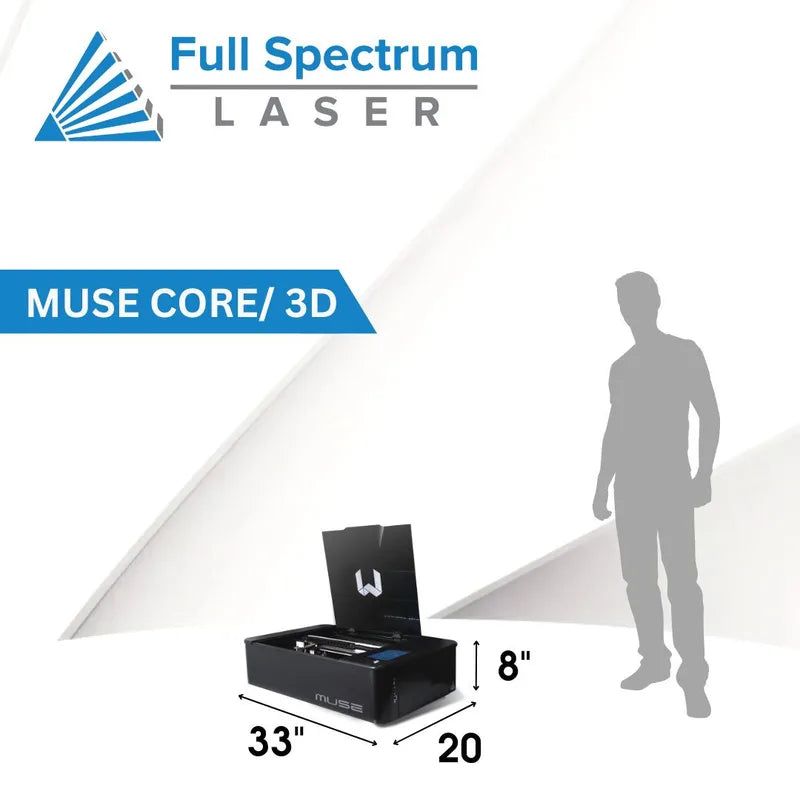

| Machine Dimensions | Width: 32.3" x Depth: 20.3" x Height: 8.5" (820mm x 515mm x 215mm) |
| Weight | 54 lbs (24.5 kg) |
Laser
| Laser Classification | Class 3 |
| Laser Type | Sealed CO2 Laser Tube |
| Laser Power | 40W |
| Focus Lens Included | 2" |
| Beam | Integrated Red Guiding Laser and Beam Combiner |
| Resolution | Up to 1000 dpi |
Power
| Power Supply | AC 110V native |
| Gross Power | < 1000W |
System
| Operation Modes | Precision Raster, Vector or Combined Modes |
| Motion Control | High-speed, High-precision stepper motors |
| Operating Temperature | 0C - 45C |
Materials
| Material | Cuts | Engraves |
|---|---|---|
| Acrylic | ✓ | ✓ |
| Coated Metals | × | ✓ |
| Fabric | ✓ | ✓ |
| Glass | × | ✓ |
| Leather | ✓ | ✓ |
| Paper | ✓ | ✓ |
| Rubber | ✓ | ✓ |
| Stone | × | ✓ |
| Wood | ✓ | ✓ |
Software
| Software | RetinaEngrave v3.0 |
| Compatibility | PC, Mac & Linux |
| Browser Compatibility | Google Chrome (recommended), Safari, Firefox, Edge |
| File Import Options | JPG, PNG, BMP, TIFF, SVG, DXF, DWG |
| Minimum Screen Resolution | 1024 x 768 Pixels |
| Wireless Compatibility | 802.11n |
What's Included
- Internal Exhaust Fan
- Air Compressor (Coolbox)
- Honeycomb Table
- Basic Water Cooling Solution (Coolbox)
Inspire. Design. Create.
Muse is the best desktop laser on the market and keeps getting better with 3D camera features, autofocus, LCD touchscreen functions and the powerful, yet easy-to-use, self-hosted browser based RetinaEngrave v3.0 laser control and design software. From creating original art to starting your own small business, Muse offers the best, most innovative technology in the desktop laser market.
Key Features
- Patented Removable floor to engrave on material larger than the internal work area
- RetinaEngrave v3.0 self-hosted browser-based laser control and design software
- Intel RealSense™ 3D Camera option 3D scans every pixel for precision XY and focus position
- Motorized Autofocus
- Sleek onboard LCD touchscreen control
- Cuts up to 1/4 inch material
- Engraves up to 1000 dpi resolution

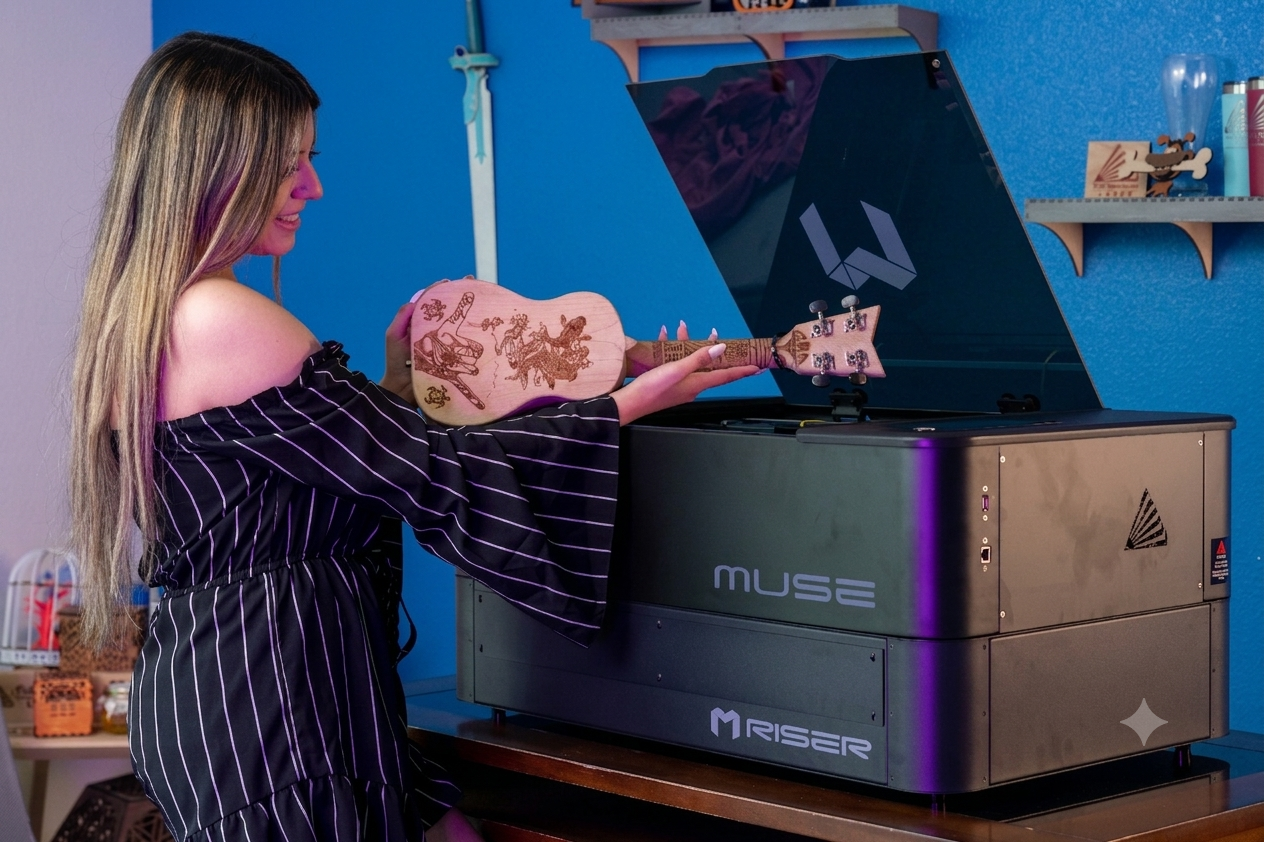

- Optional accessories like the rotary and riser engrave on rounded or larger objects
Motorized Autofocus
A clever mechanical sensor built into the laser head itself provides backup height data when 3D camera data is unavailable. This allows for different focus points to be set ahead of time on materials of varied thickness. This will help you move more quickly between engravings giving you time to get more accomplished.
Intel RealSense™ 3D Camera
2D camera technology can only be used for flat surfaces and cannot compensate for curved or warped surfaces or varying heights. Muse 3D Vision with Autofocus utilizes Intel's 3D RealSense technology to accurately map millions of 3D data points.
Watch your jobs on mobile devices and more! A live view of the camera is available on the touchscreen, within RE3 and on mobile devices.
The Best Laser Control Software on the Market!
The powerful, easy-to-use RetinaEngrave v3.0 software lives right on your laser and is accessed using your favorite web browser and operating system. Simply input the IP address of your machine into your browser address bar and you are ready to go. Best part? There's nothing to download, ever.
Welcome to the future of laser control & design software!
Muse Desktop Laser at a Glance
| Standard Laser Tube | 40W CO2 |
| Laser Tube Upgrades | 45W CO2 |
| X-Y Working Area | 20" x 12" |
| Working Z-Height | 2.5" |
| Removable Floor | Yes |
| Rotary Available | Yes |
| Power Requirements | 120V AC |
The Perfect Accessories
Upgrade your cooling system for peak performance of the laser.
Engrave curved objects with a rotary attachment. Work with tumblers, glassware and more.
Increase your laser tube power to accelerate cutting speed and marking ability.
...plus fume extractors, specialty focus lenses and more!
Shipping
Weight: 150.0 lbs | Dimensions: 38.0" × 27.0" × 15.0"
Designed & built in Las Vegas, USA
Applications
Three Muse CO2 Models to Meet your Needs
