Product Description

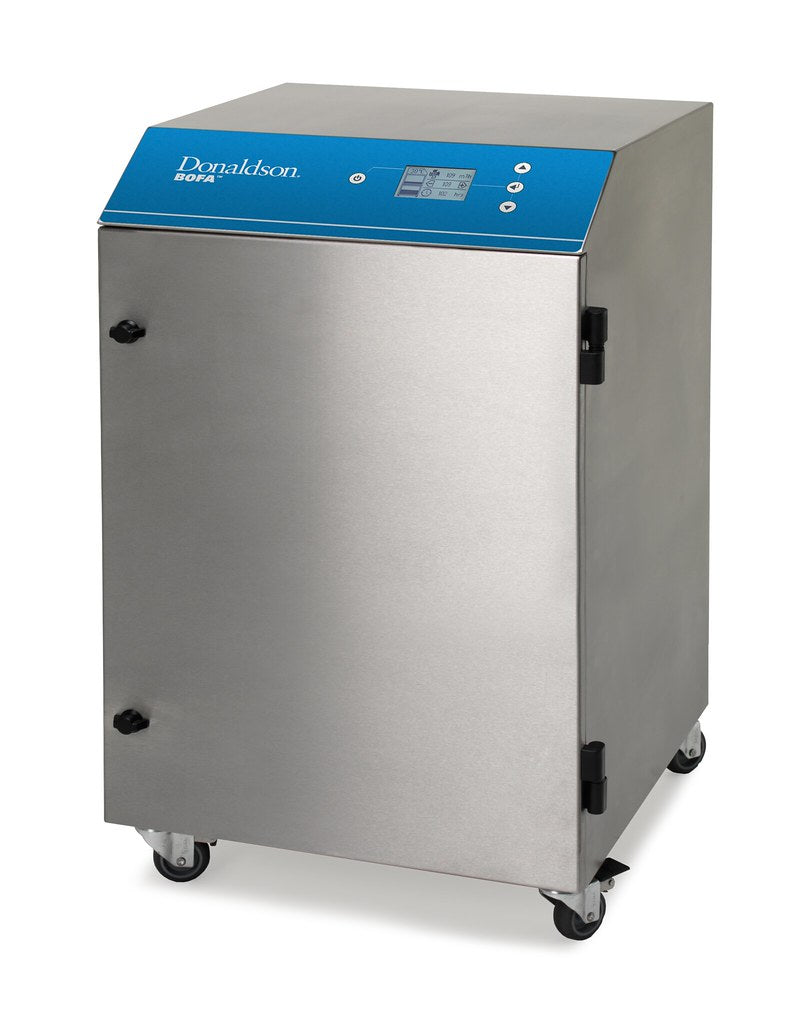

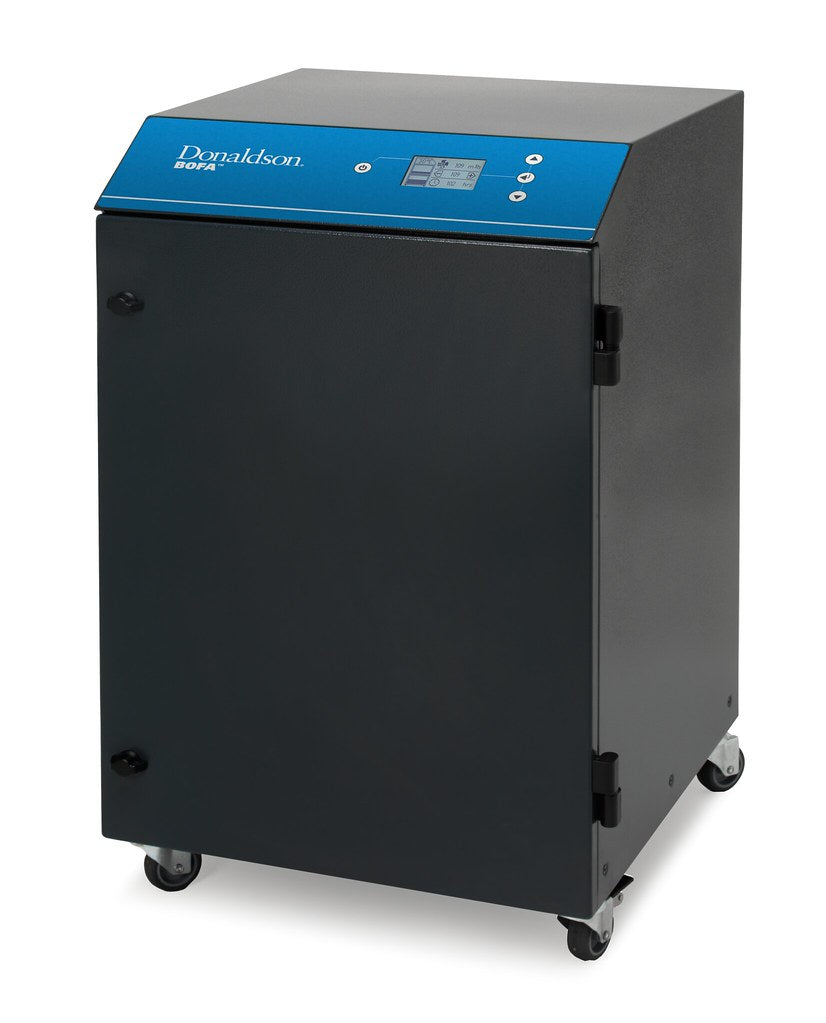

A mid-sized fume extraction system for lighter-use laser applications — laser engraving, laser cutting, laser coding and marking. The AD Oracle SA iQ combines Donaldson BOFA's Intelligent Operating System (iQ) into a single mid-sized unit, with a smaller pre-filter than the AD Oracle iQ but the same feature set, making it well suited to lighter-duty use.

Key Features

  • High contrast display
  • Real-time airflow reading
  • Independent filter condition monitoring
  • Remote diagnostics via USB
  • Low-cost replacement filters
  • Low noise levels
  • Lockable castors

Technical Specifications

Specification Imperial Metric
Dimensions (H×W×D) 29.13 × 17.72 × 20.28" 740 × 450 × 515 mm
Weight 128 lbs 58 kg
Airflow / Pressure 223 cfm / 96 mbar 380 m³/hr / 96 mbar
Noise Level < 60 dBA < 60 dBA
Cabinet Brushed stainless steel / powder-coated mild steel

Electrical Data

Voltage (V) Frequency (Hz) Current (A)
115-230 50/60 12.5

Compliance & Approvals

UKCA, CE, cUL, UL.

Replacement Filters

The AD Oracle SA iQ uses two replacement filters, both available from TechForge Direct:

Documentation

Datasheet (US) | User Manual (US)
