Product Description

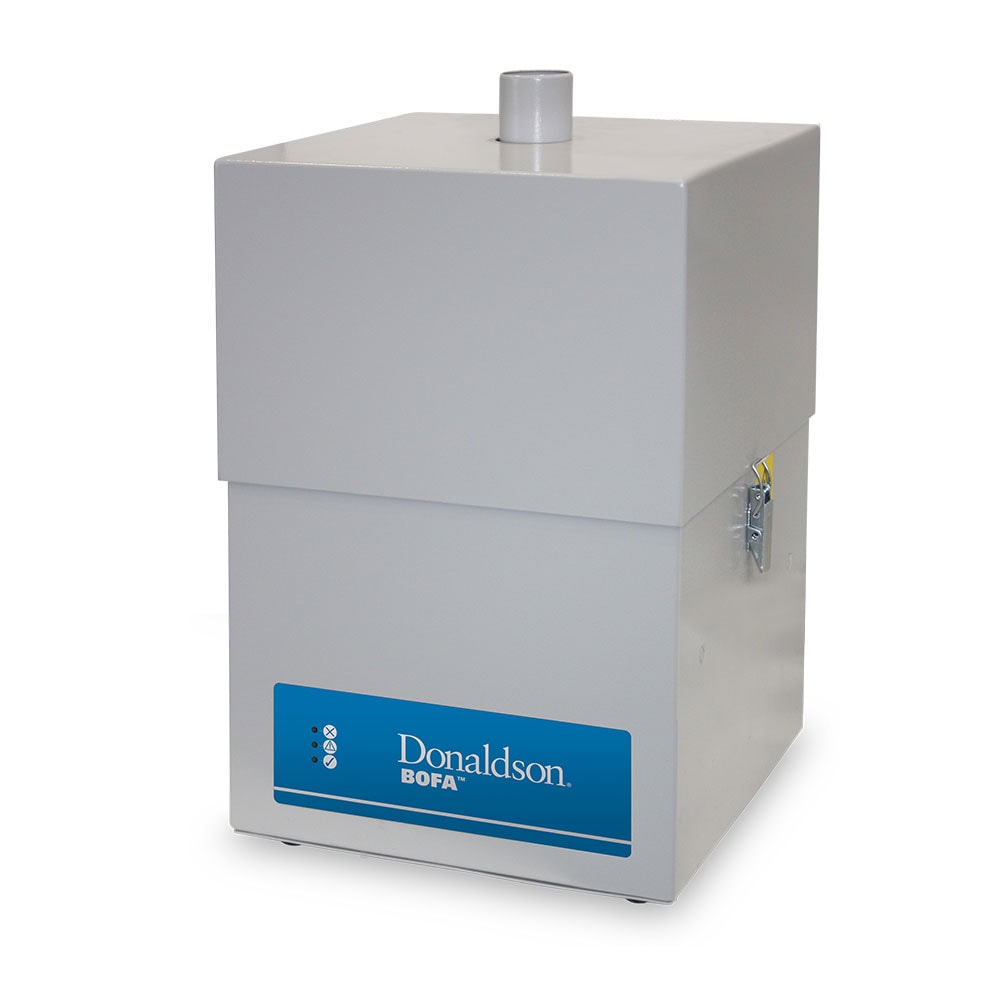

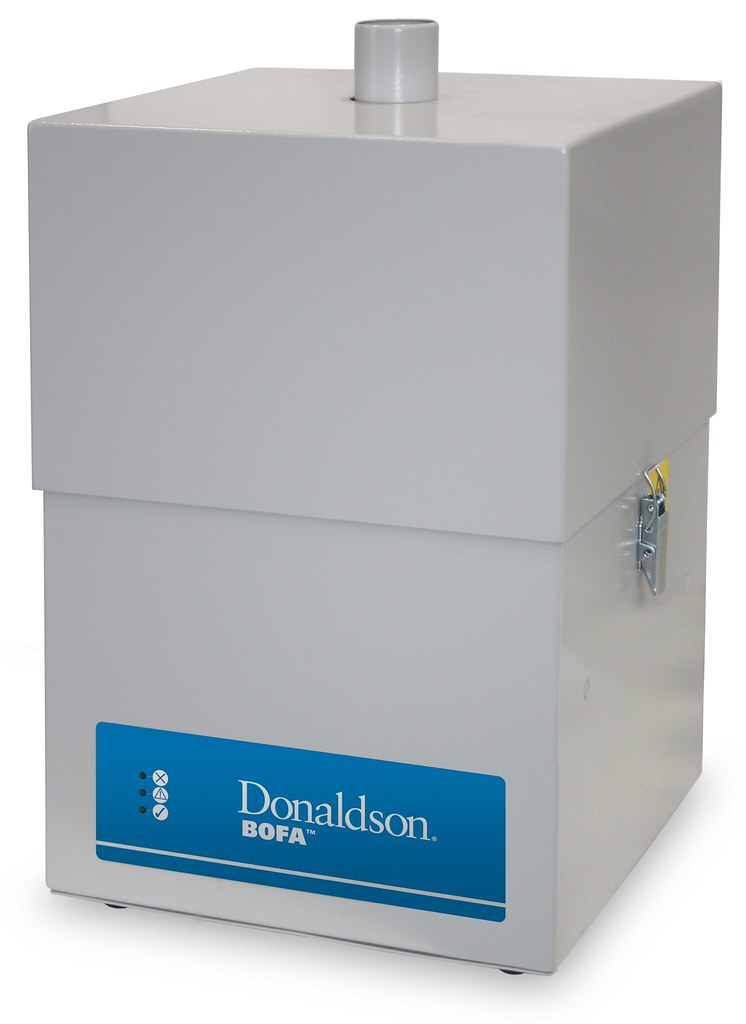

Donaldson BOFA AD Access Fume Extractor

A compact fume extraction system for light-duty laser applications, suited to laser cutting, engraving, coding, and marking. The AD Access delivers low noise operation, a small footprint, and affordable filter replacement for entry-level laser fume extraction needs.

Key Features

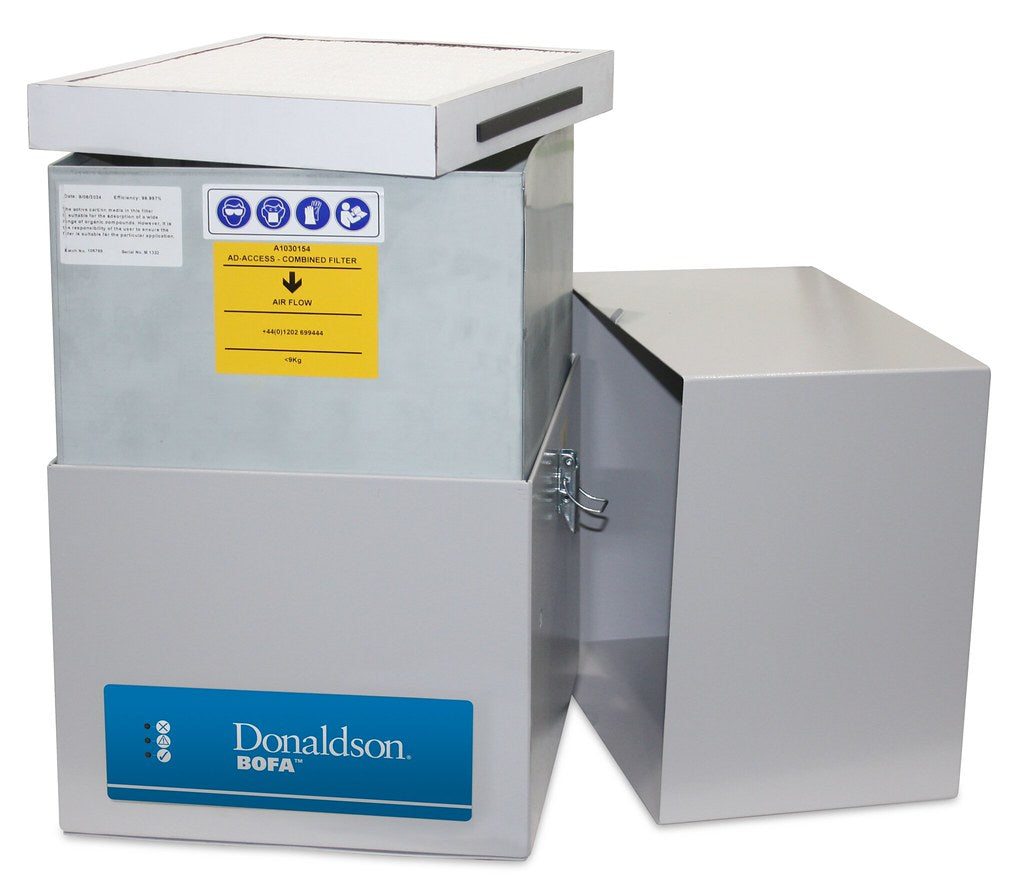

  • DeepPleat Pre-Filter — pleated design increases surface area within a compact volume for extended filter life
  • HEPA Filter — rated to filter 99.995% of particles at 0.3 microns
  • Advanced Carbon Filters — captures contaminants and odors with industry-specific carbon types
  • System OK Signal (optional) — alerts to faults and blocked filters
  • Remote Stop/Start Signal (optional) — operates only during machine use to reduce running costs
  • VOC Sensor (optional) — monitors volatile organic compounds and alerts when thresholds are exceeded

Technical Specifications

Specification Imperial Metric
Dimensions (H×W×D) 19.88 × 13.19 × 12.40" 505 × 335 × 315 mm
Weight 53 lbs 24 kg
Airflow / Pressure 106 cfm / 30 mbar 180 m³/hr / 30 mbar
Noise Level < 61 dBA < 61 dBA
Cabinet Powder-coated mild steel

Electrical Data

Voltage (V) Frequency (Hz) Current (A)
115 50/60 1.5
230 50/60 0.9

Compliance & Approvals

UKCA and CE; cUL and UL (tested to appropriate standards; certain configurations may affect certification).
