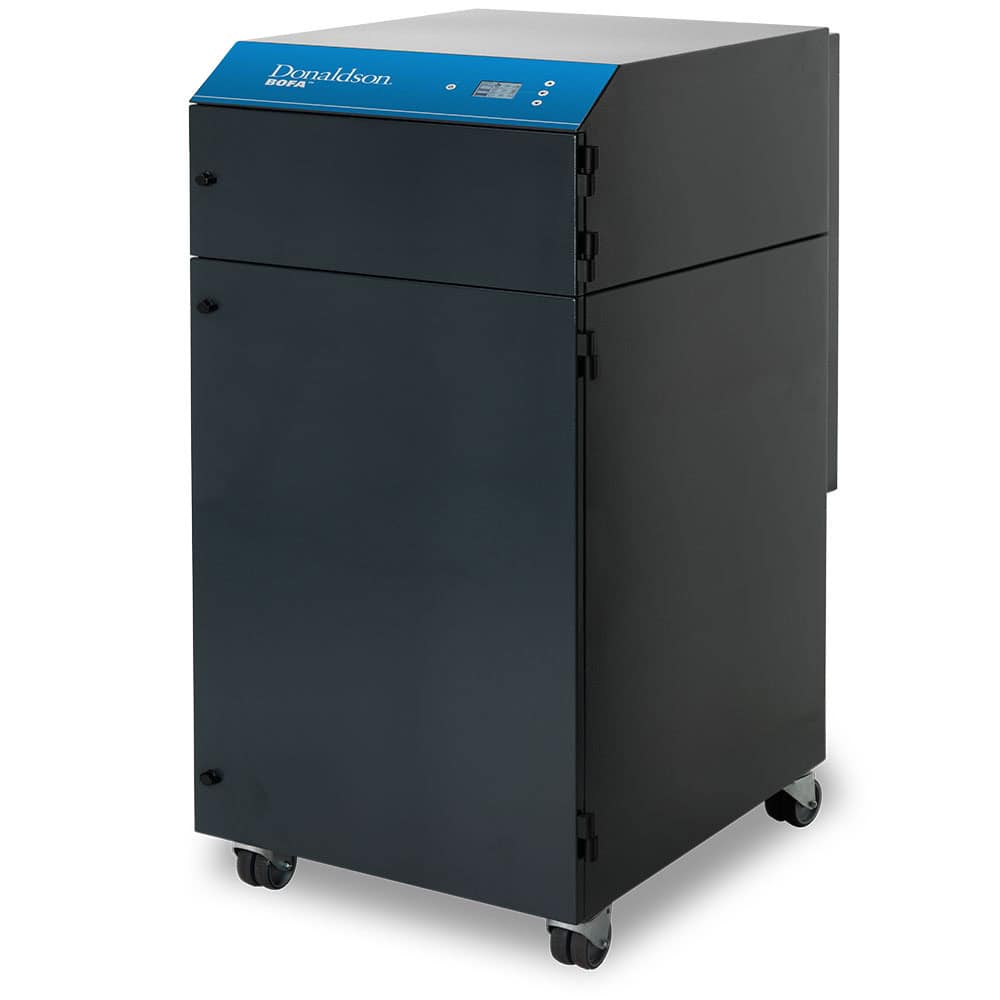

Donaldson BOFA AD 500 iQ

Product Description

A fume extraction system for medium-duty laser applications that produce significant amounts of particulate — selective laser sintering, selective laser melting, laser engraving, laser cutting, laser coding and marking. The AD 500 iQ offers a large filter capacity along with high airflow and pressure rates.

Key Features

  • Real-time airflow reading
  • Independent filter condition monitoring
  • High contrast display
  • Remote diagnostics via USB
  • Long-life, low-cost replacement filters

Technical Specifications

Specification Imperial Metric
Dimensions (H×W×D) 47.44 × 24.41 × 31.10" 1205 × 620 × 790 mm
Weight 292 lbs 142 kg
Airflow / Pressure 324 cfm / 100 mbar 550 m³/hr / 100 mbar
Noise Level < 60 dBA < 60 dBA
Cabinet Powder-coated mild steel

Electrical Data

Voltage (V) Frequency (Hz) Current (A)
115 50/60 14.8
230 50/60 9.5

Compliance & Approvals

UKCA, CE, cUL, UL.

Documentation

Datasheet (US) | User Manual (US)
