Product Description

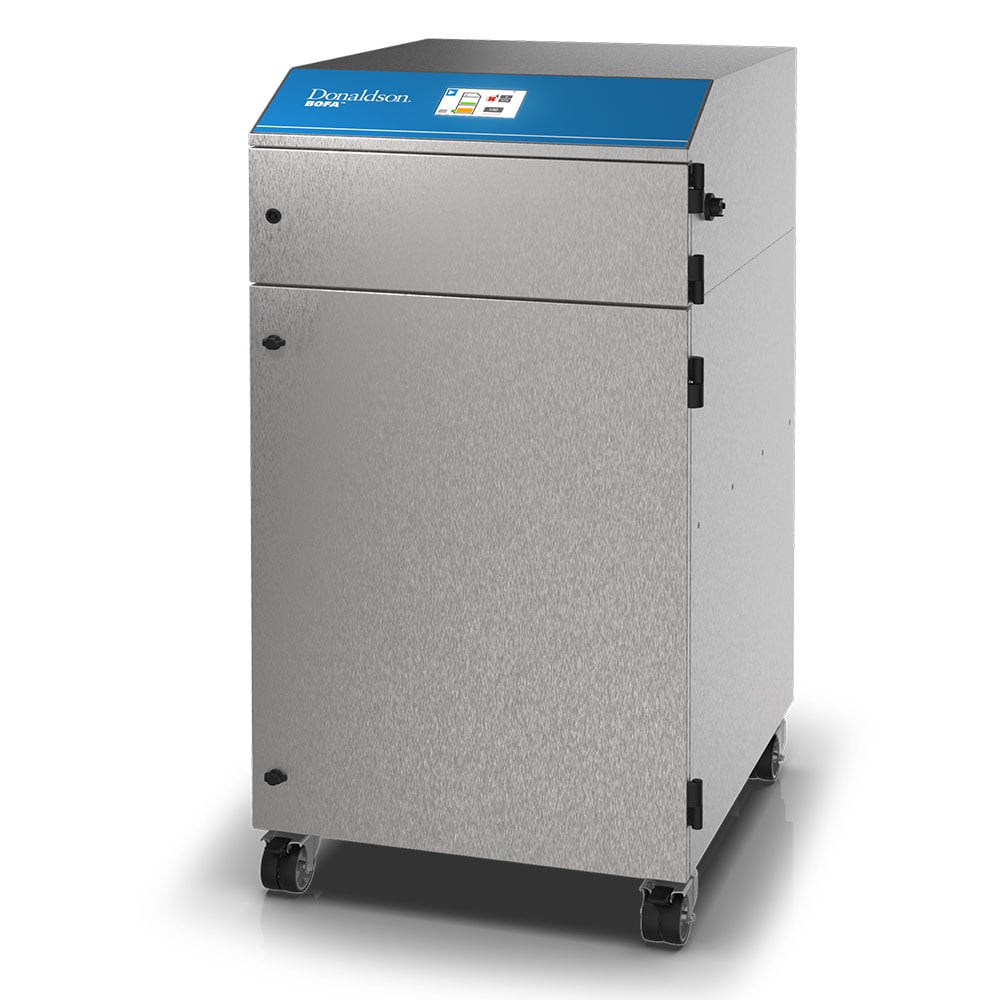

The Donaldson BOFA AD 1000 Pro OS Connect fume extraction system is an ideal choice for applications that generate high levels of particulate. Equipped with our new, innovative Pro OS software platform, this intuitive system takes productivity to the next level.

Key Features

  • Two-way data stream
  • Color touch screen
  • Real-time system status
  • Multi-language software
  • Customizable branding

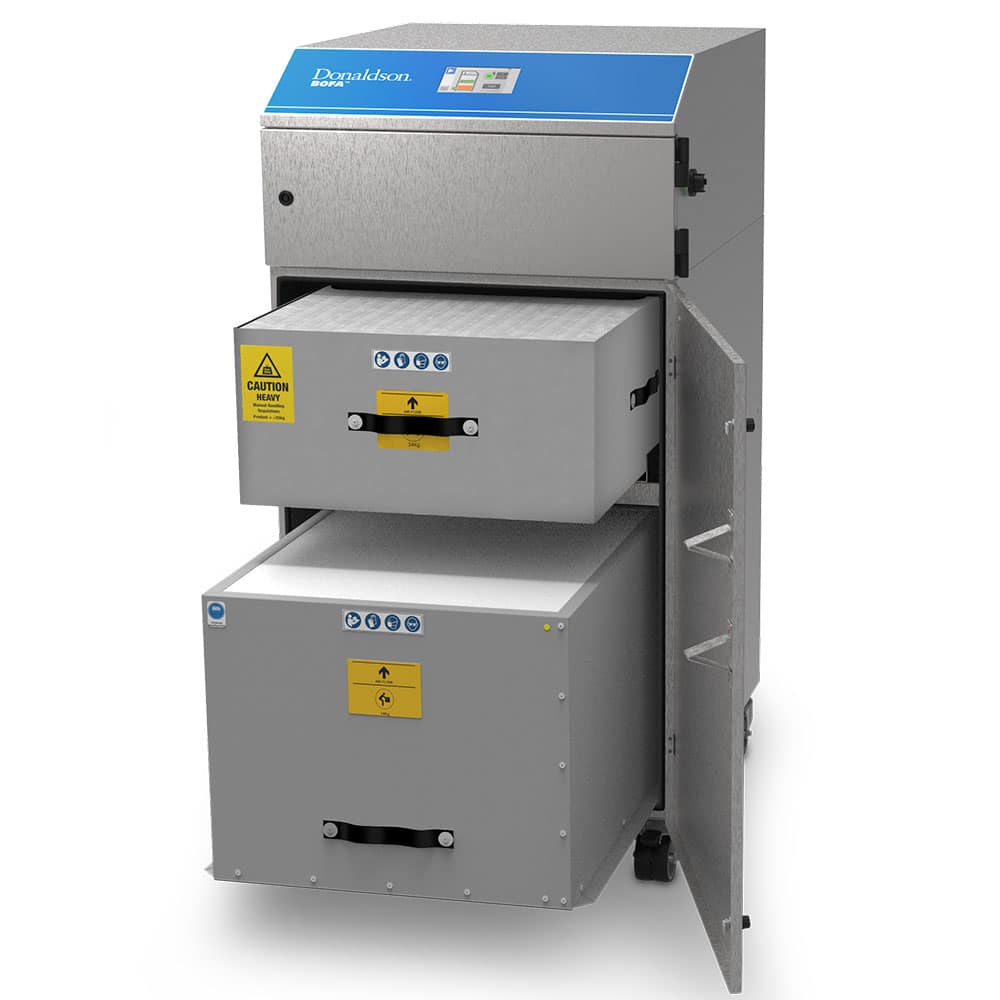

  • Filter life monitor
  • Pressure sensors
  • Alert configurations
  • USB lock screen

Technical Specifications

Specification Imperial Metric
Dimensions (H×W×D) 47.4 × 24.6 × 31.7" 1205 × 625 × 805 mm
Weight 309 lbs 140 kg
Airflow / Pressure 515 cfm / 60 mbar 875 m³/hr / 60 mbar
Noise Level < 70 dBA < 70 dBA

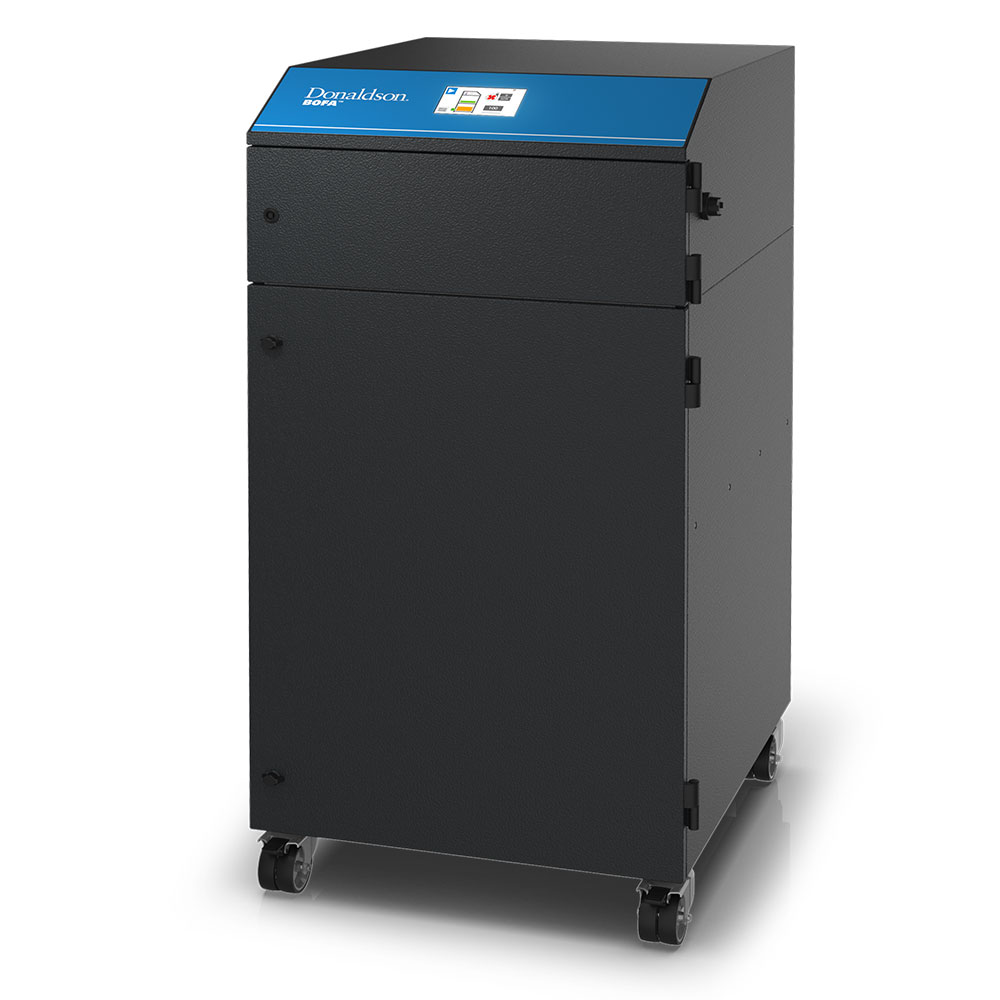

Cabinet Brushed stainless steel / powder-coated mild steel

Electrical Data

Voltage (V) Frequency (Hz) Current (A)
115 50/60 19.5
230 50 12.8

Compliance & Approvals

UKCA, CE, UL.

Documentation

Datasheet (US) | User Manual (US)
