Dake Corporation
Dake B:7X Horizontal Bandsaw – 2HP, 6.69″ Capacity, Cutting Fluid System
- Regular price
- $1,869.00
NOTE: TechForge Direct is an authorized dealer for this manufacturer. This product is sold new, in original manufacturer packaging, with applicable manufacturer warranty, and is available for sale within the United States only.
- Regular price
- $1,869.00
Estimated shipping time
Estimated shipping time
Order cutoff: 5:00 PM Eastern Time
Handling time: 1 to 3 business days
Transit time: 3 to 7 business days
Total delivery time: 4 to 10 business days
These are estimates, not guarantees. We do not hold stock — your equipment is ordered from the manufacturer once you order. If your item is on back-order, or the manufacturer confirms a longer lead time, we will contact you promptly and you may cancel for a full refund with no fee.
Free shipping is curbside or dock-to-dock delivery to a commercial address, or parcel delivery for smaller items. Liftgate, residential, limited-access and inside delivery, and rigging, are not included — typically $150 to several hundred dollars, quoted in writing and charged only with your prior approval.
Freight deliveries require a scheduled appointment and someone must be present to sign. Need a firm date before you buy? Call (720) 575-1376 or email support@techforgedirect.com with the model number.
What is your Return Policy?
What is your Return Policy?
30 days to request a return from the date you receive your order. Email support@techforgedirect.com with your order number and reason. We will assess your request and, once approved, send you an RMA number and detailed instructions. Do not ship anything back before you have an RMA number.
1. Return shipping costs
You as the customer are responsible for paying the return shipping costs of the items in your order. On freight-shipped machinery this can be substantial — we quote the exact amount in writing before you commit, so you decide with the full figure in front of you.
2. Preparing your return
Download and print the return shipping label provided in our email and affix the label to the outside of the package. The item must be unopened, unused and in delivery condition, including all original packaging and accessories, in a condition such that it can be re-sold as new. Machinery must not have been wired in or powered on. Photographic evidence is required.
3. Restocking fee
Change-of-mind returns carry a 25% restocking fee, deducted from your refund. On a $10,000 machine that is $2,500.
4. Damaged or incorrect products
Note it immediately when signing for delivery and send photographs to support@techforgedirect.com the day of delivery. We will ensure you get the correct product you ordered, undamaged, as soon as possible, at no cost to you — no return shipping charge and no restocking fee.
5. Refunds
Processed within 7 days of your returned item being received and inspected.
6. Cancellations
Cancel any time before your order ships for a full refund with no fee.
See our full Return and Refund Policy and Cancellation Policy.
Product Description

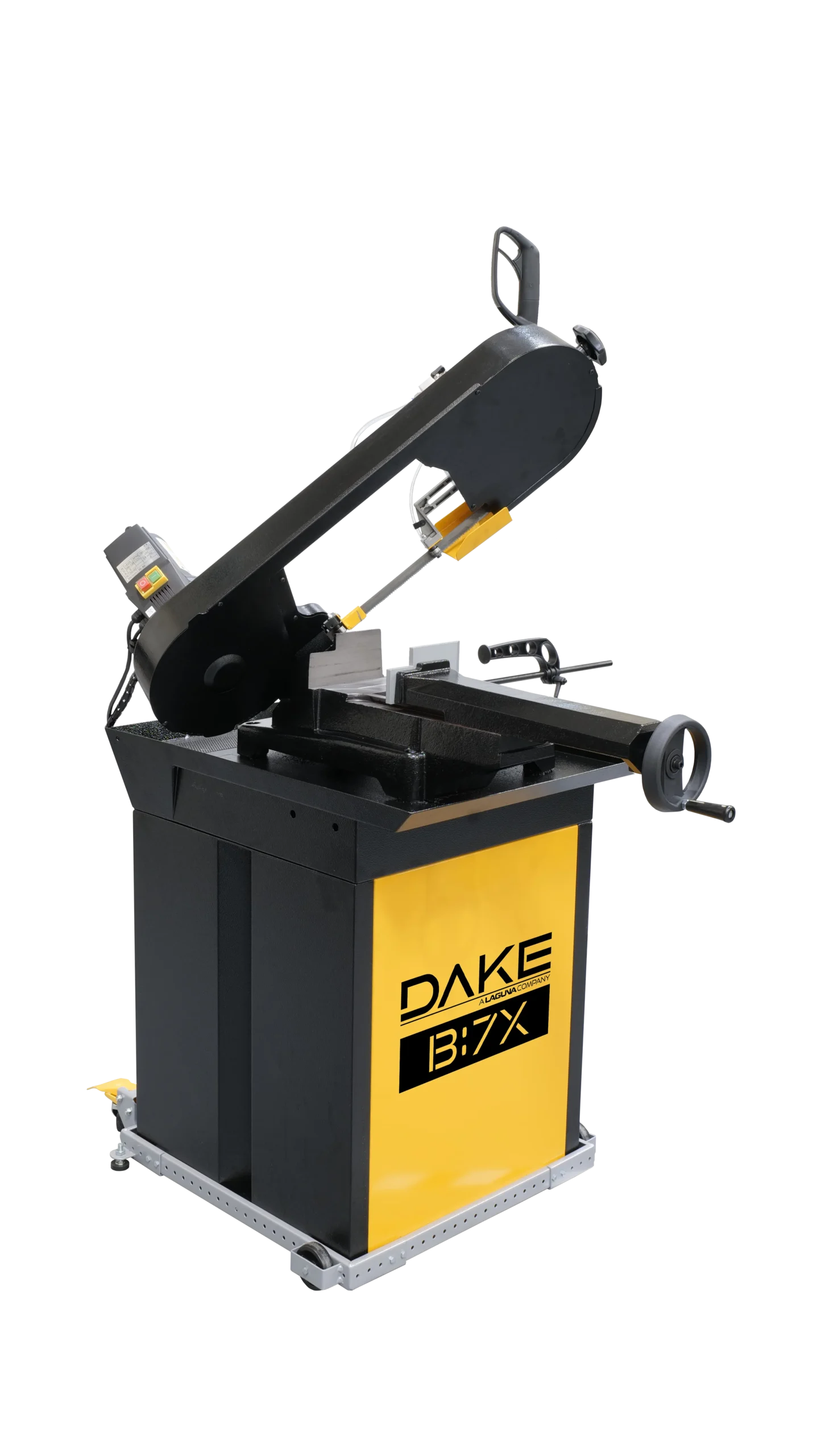

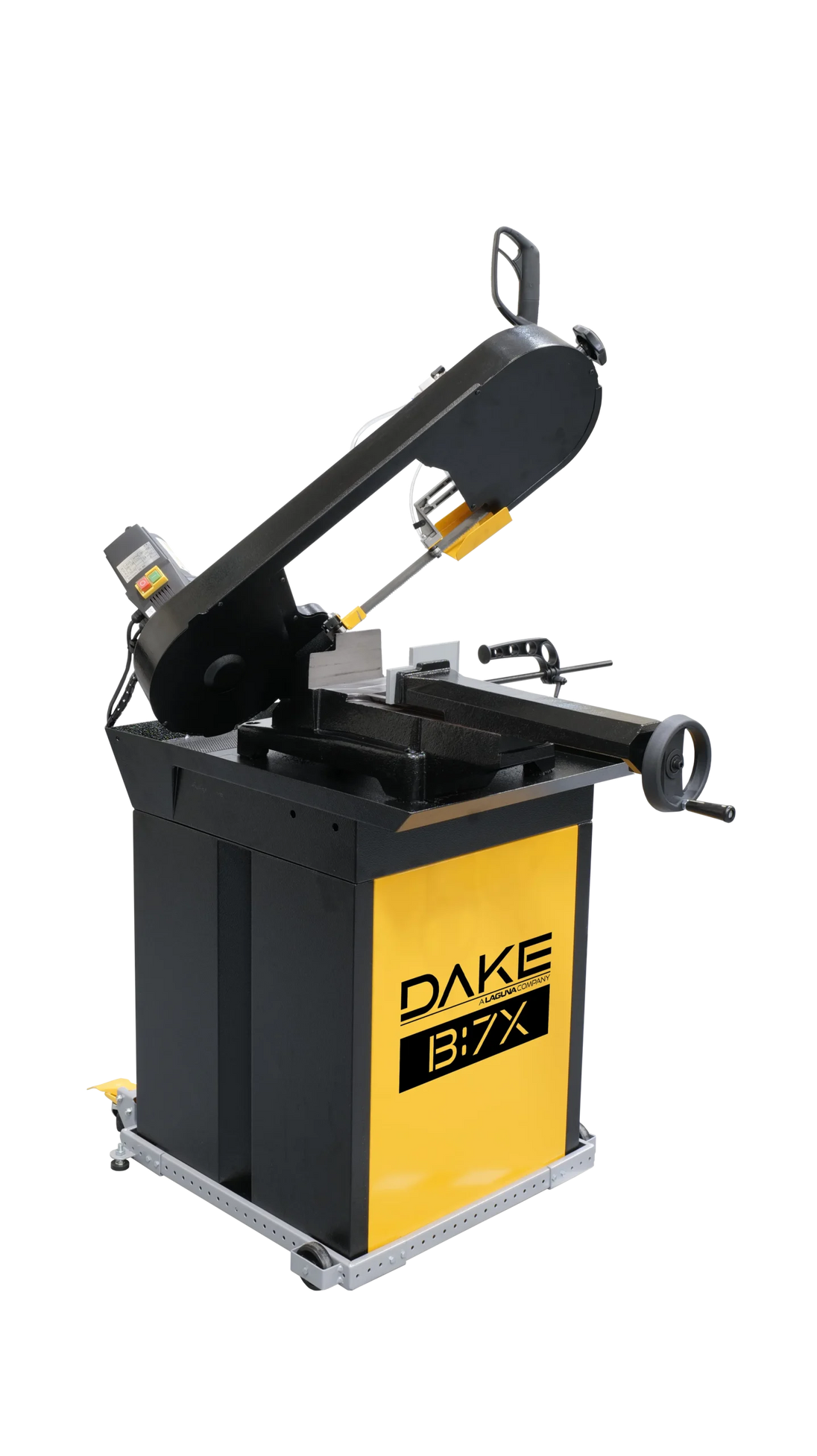

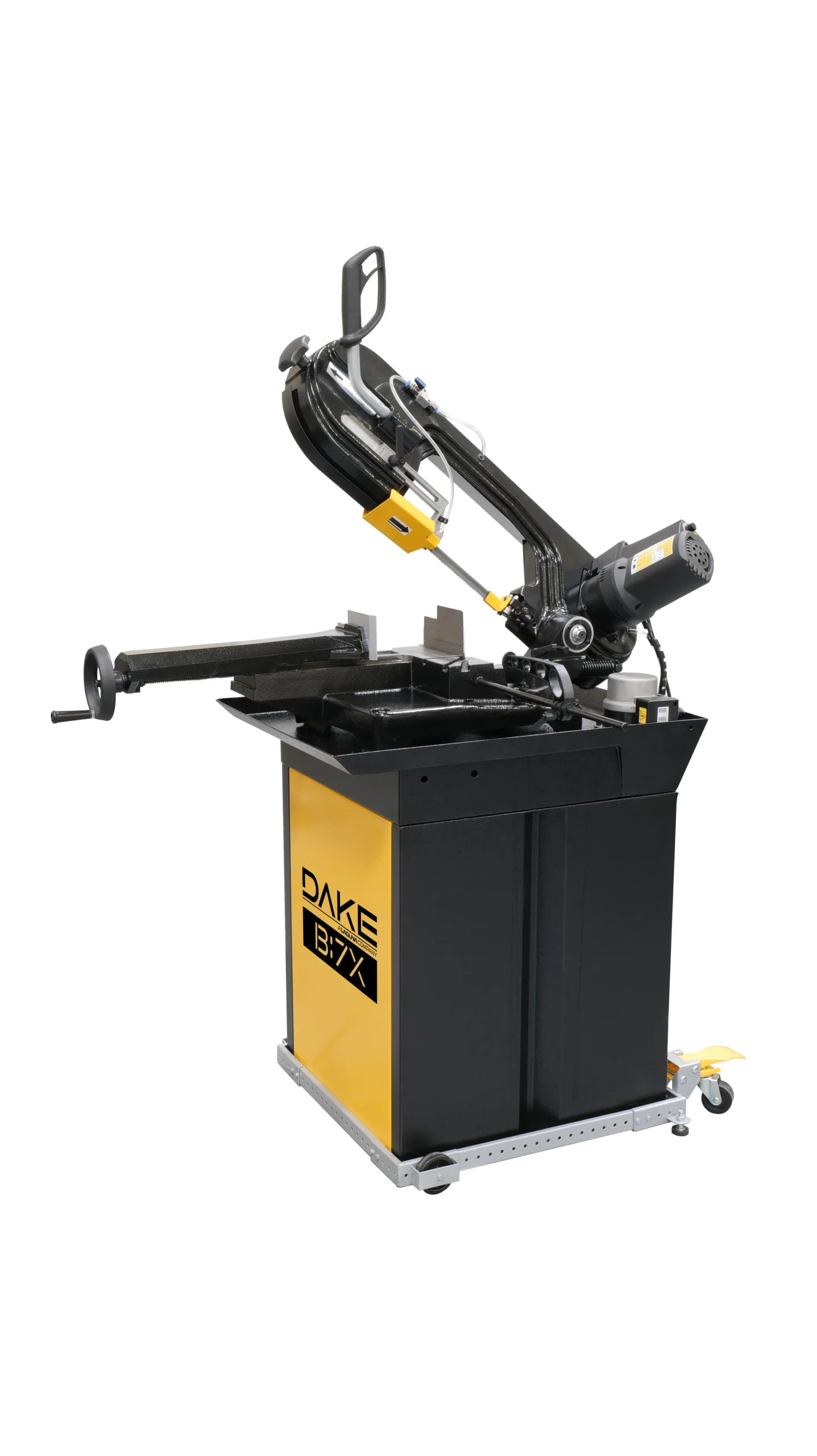

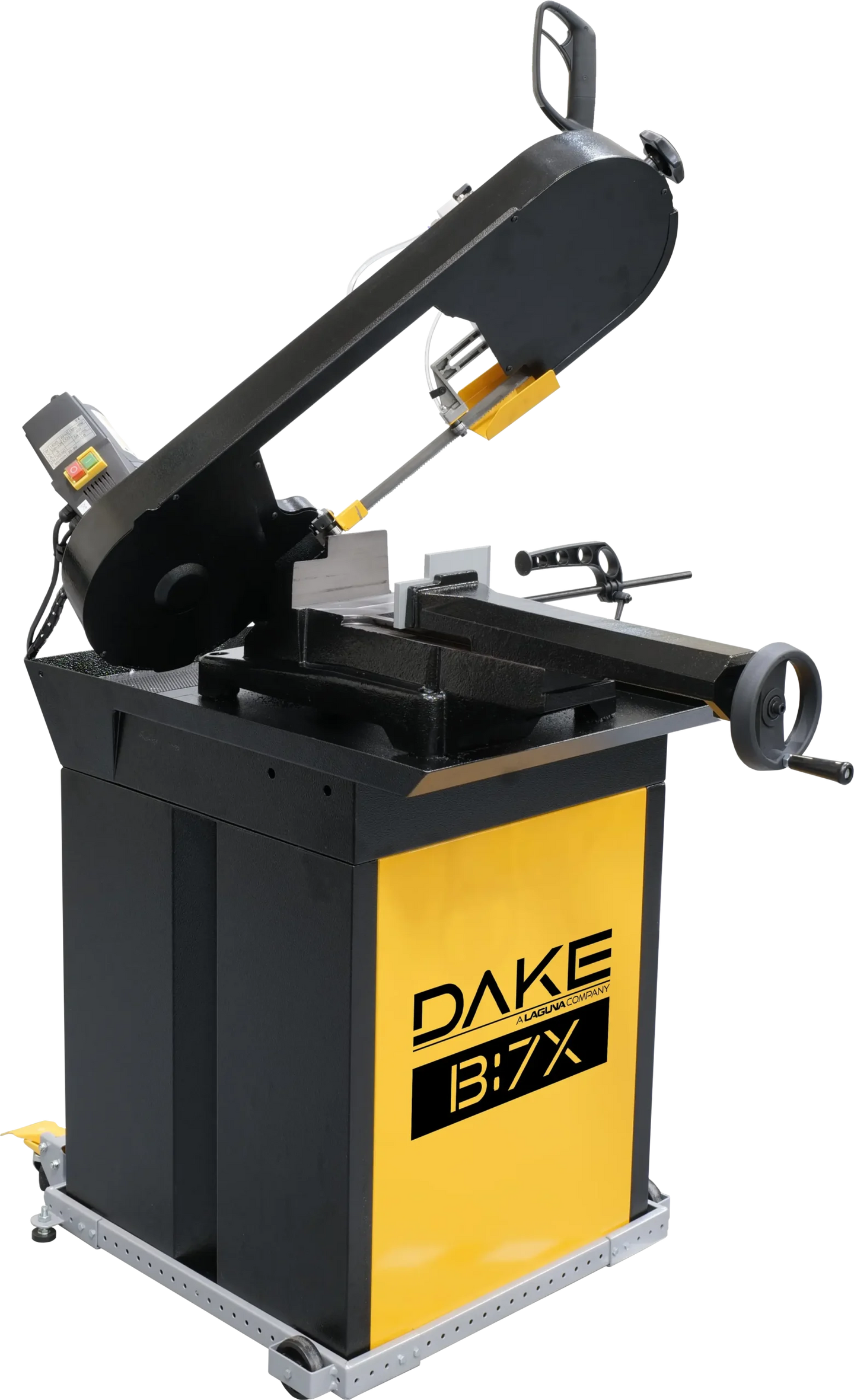

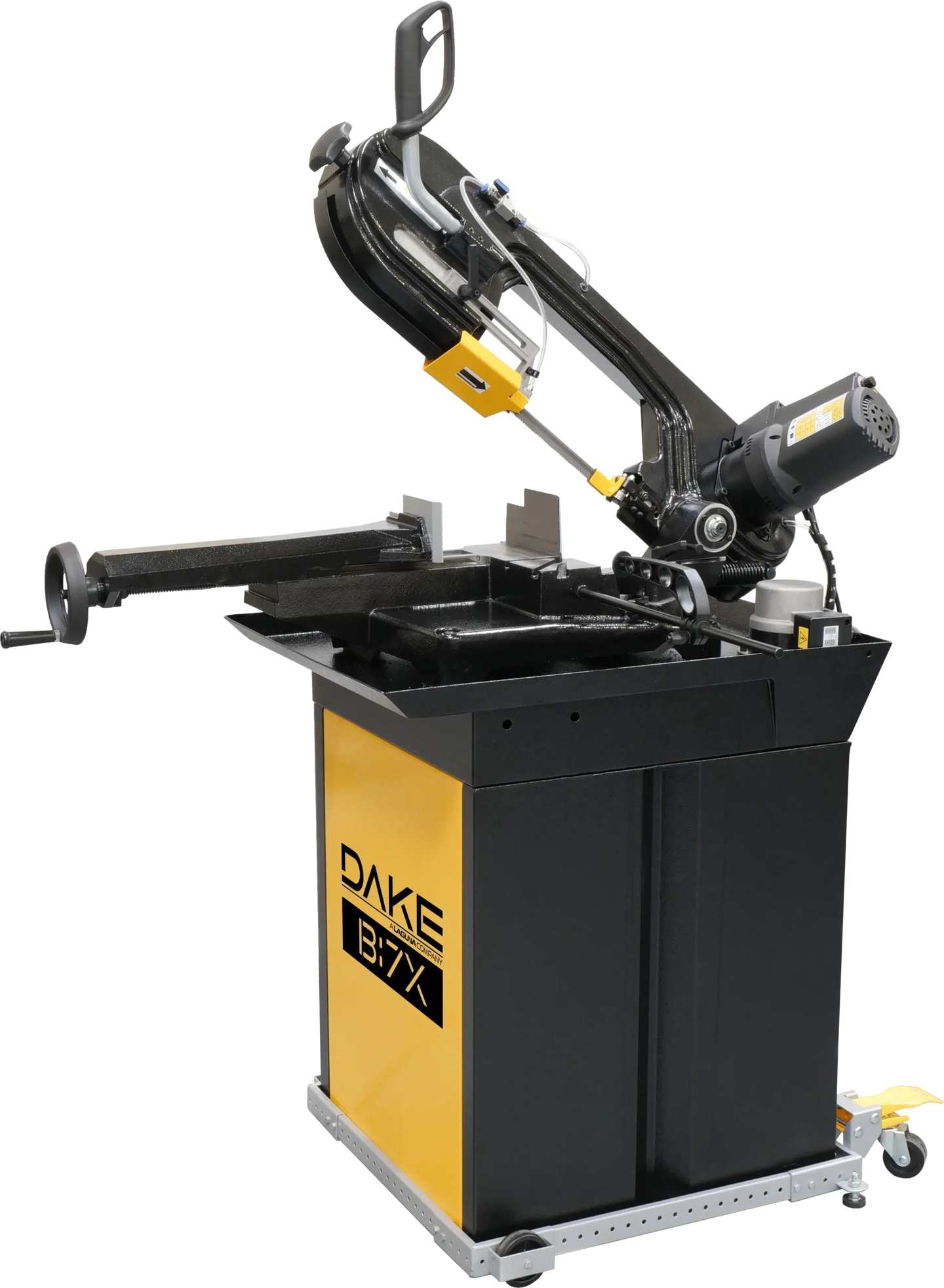

The B:7X Horizontal Bandsaw is a floor-standing, industrial-grade metal cutting saw built for shops that demand higher capacity and longer production runs. Powered by a 2HP motor and featuring a built-in recirculating cutting fluid system, the B:7X tackles steel, iron, copper alloys, aluminum, and stainless steel with confidence – cut after cut.
Specs & Details
Motor & Power
- 2HP motor running on standard 120V — doubles the power of the bench-top B:5
- Variable blade speed 98–262 FPM via front-panel speed adjustment dial
- Thermal protector and CE-rated electrical system for operator safety
Cutting Performance
- 90° capacity: 6.69″ round bar, 6.69″ × 6.69″ rectangular stock
- 45° capacity: 4.92″ round and rectangular stock
- 60° capacity: 2.95″ round, 2.95″ × 2.96″ rectangular stock

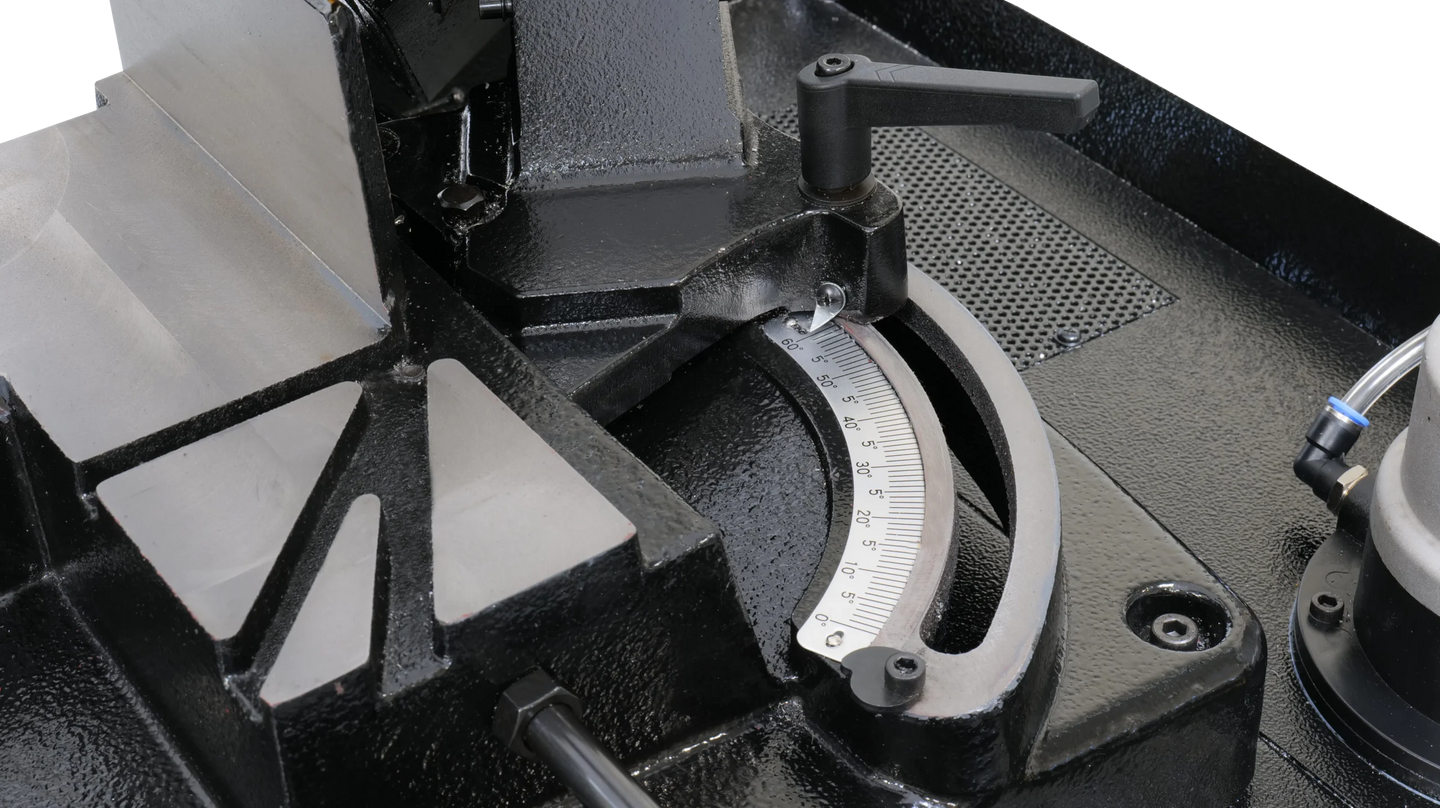

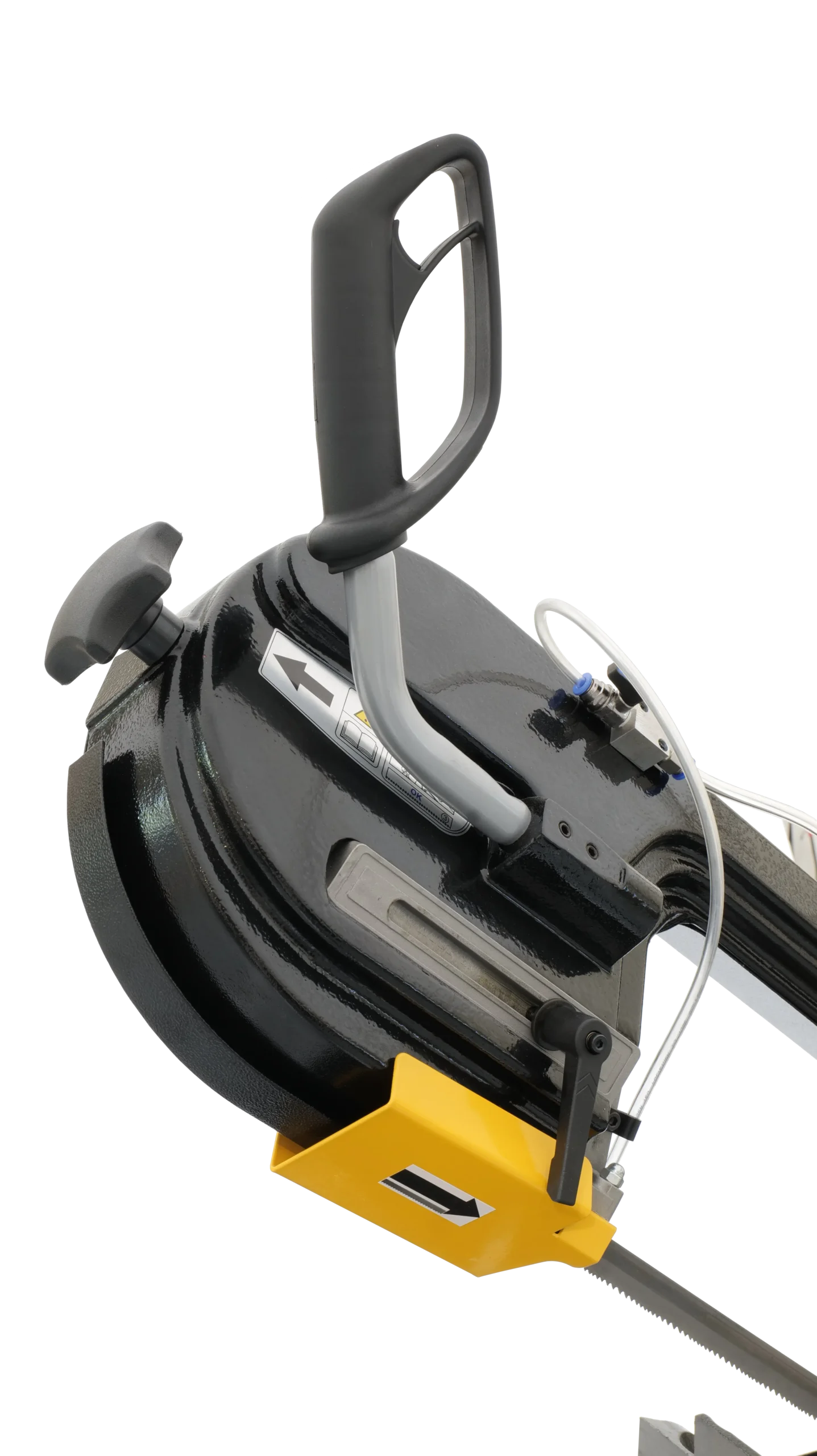

- Cutting angle adjustable from 0° to 60° via locking handle
Cutting Fluid System
- Integrated recirculating cutting fluid pump and fluid hose deliver fluid directly to the blade
- Removable drip tray collects fluid during cuts for easy cleanup
- Drain plug and drain plate allow straightforward fluid changes
- Monthly fluid change schedule recommended; reservoir monitored daily
Vise & Workholding
- Heavy-duty vise with swivel jaw that auto-adjusts to any stationary jaw position
- Supports 90° straight cuts and angled cuts from 0° to 60°

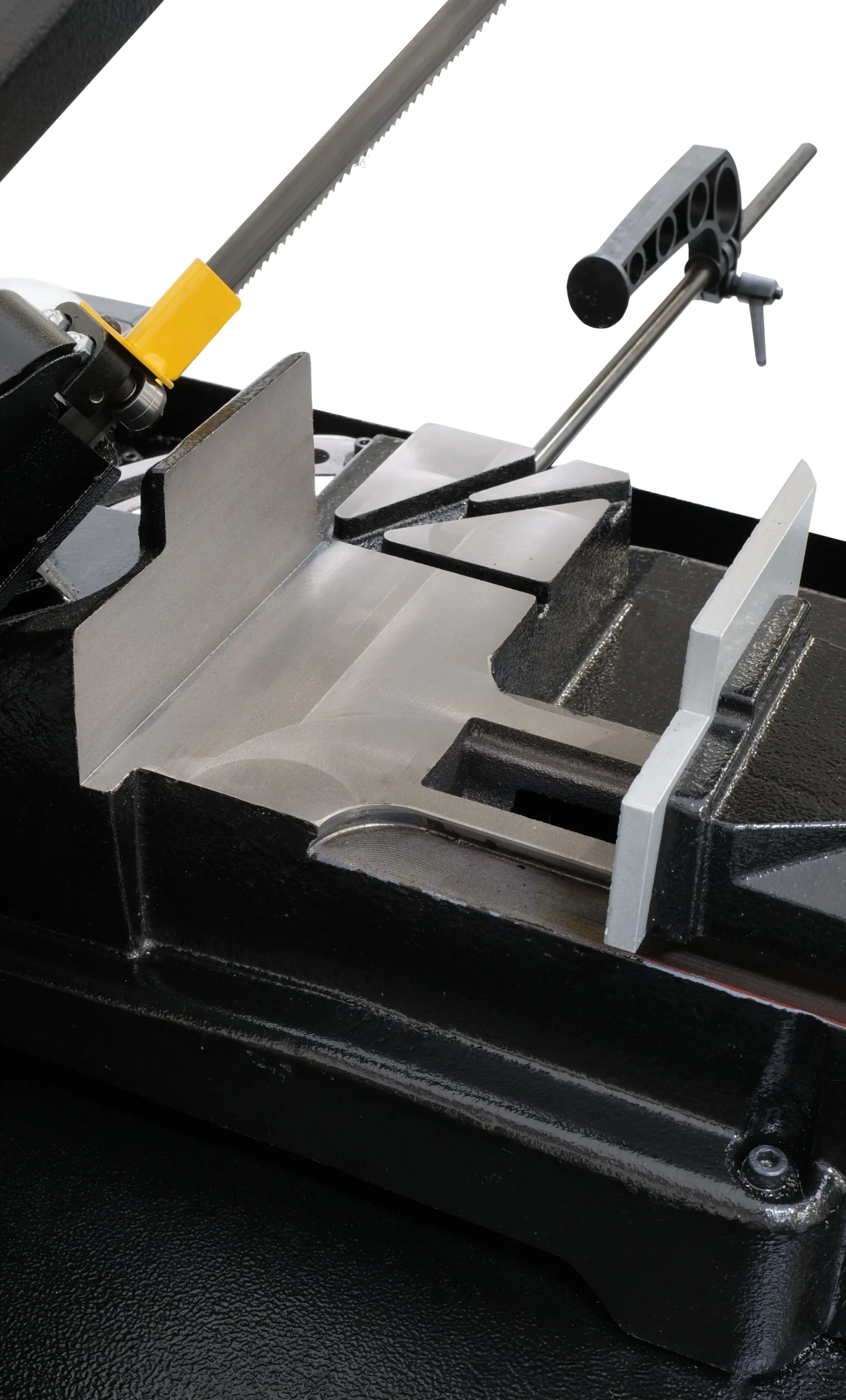

- Work stop rod and handle assembly for repeatable length cuts
Blade System
- Blade size: 80.12 × 0.035 × 0.787 in
- Aluminum bow-saw frame maintains blade stability under heavier cutting loads

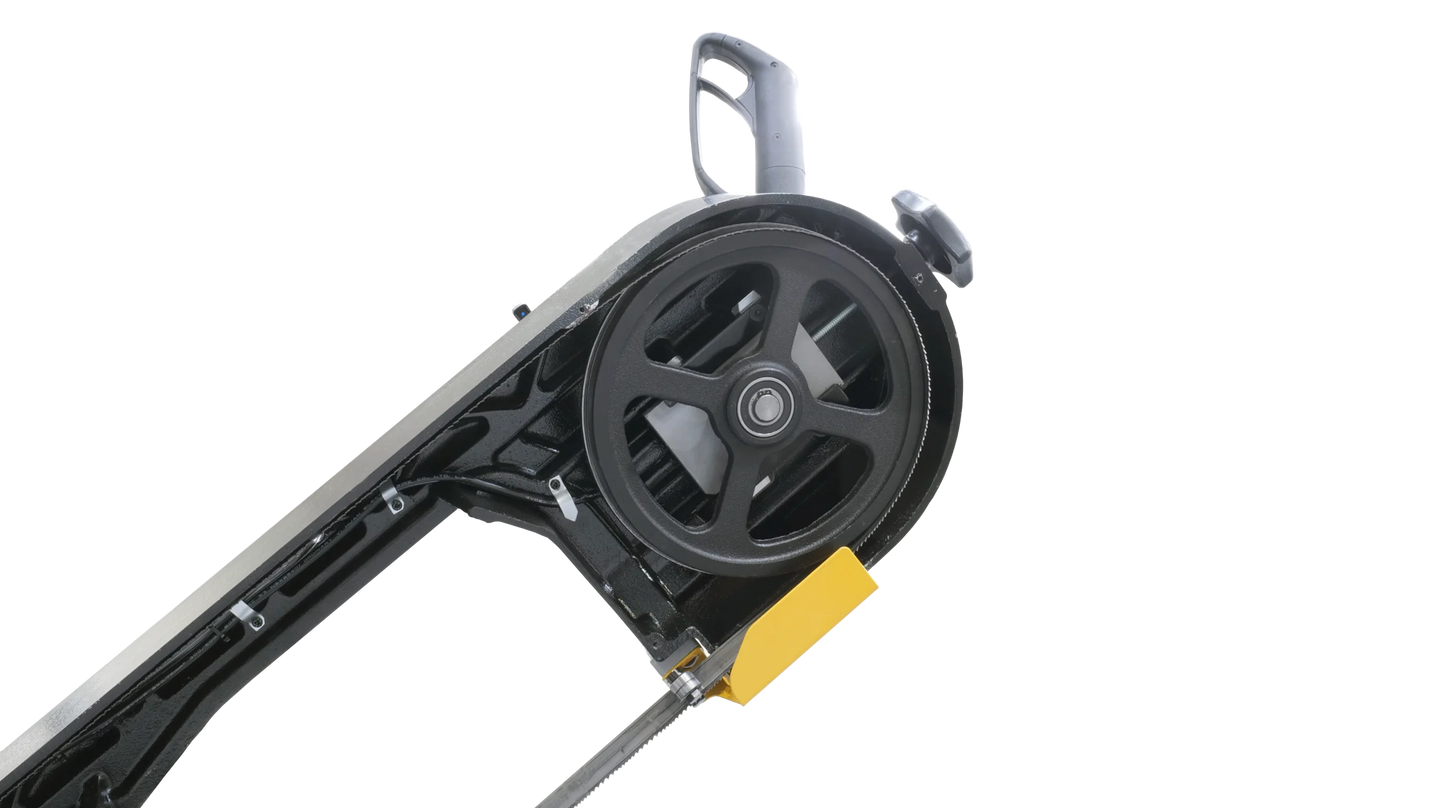

- Single-knob blade tensioning system with 1/4″ deflection target

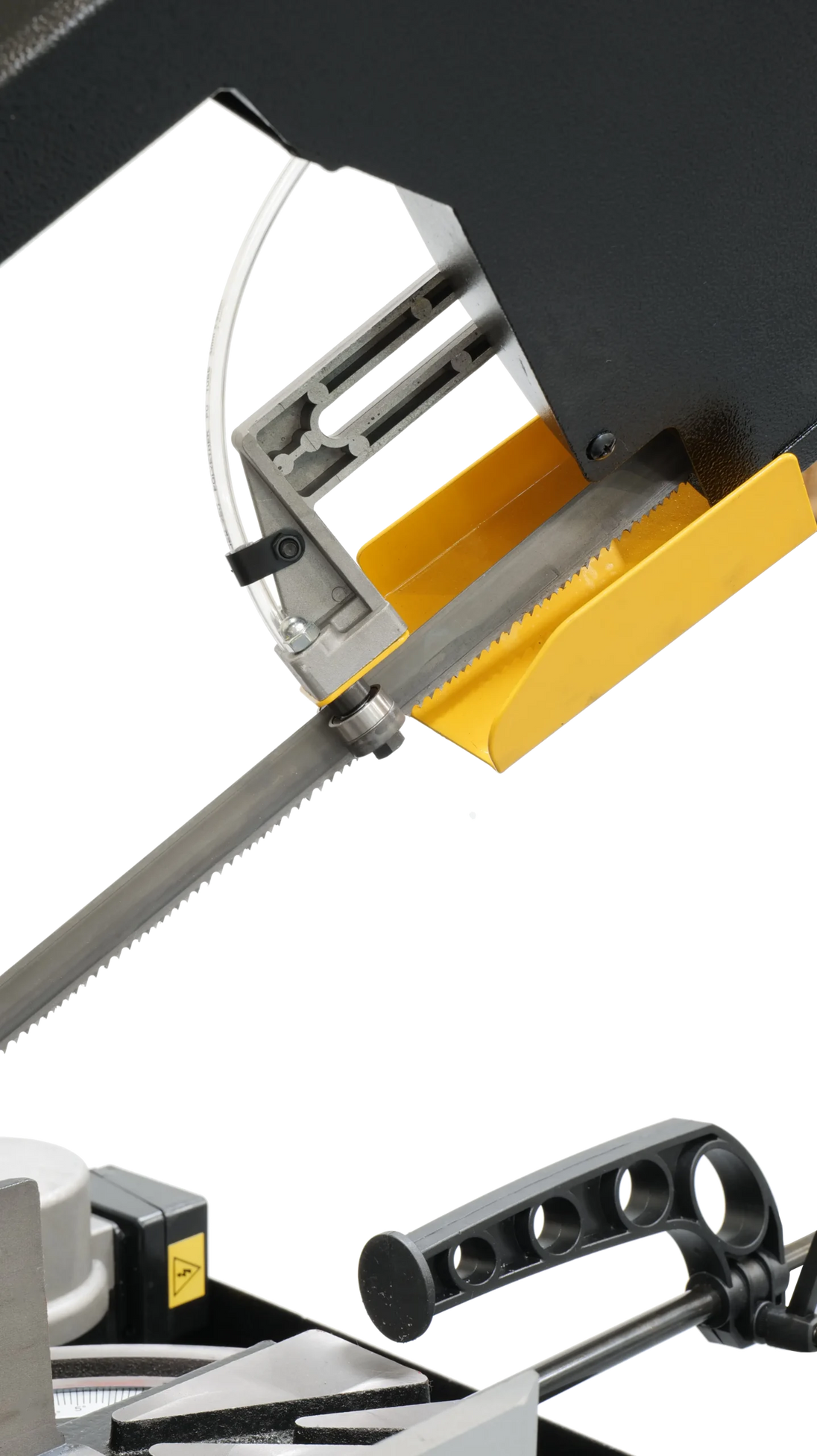

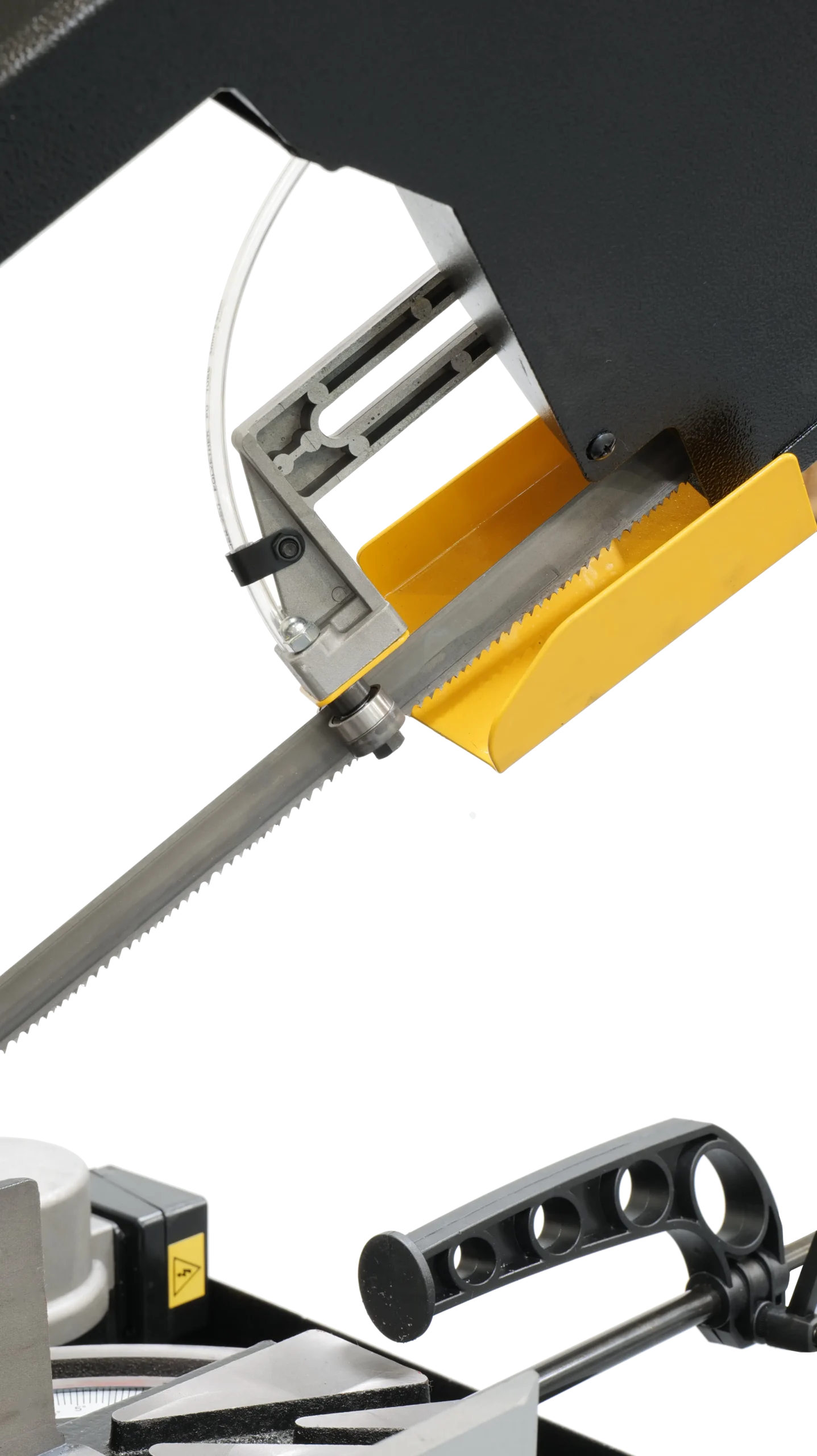

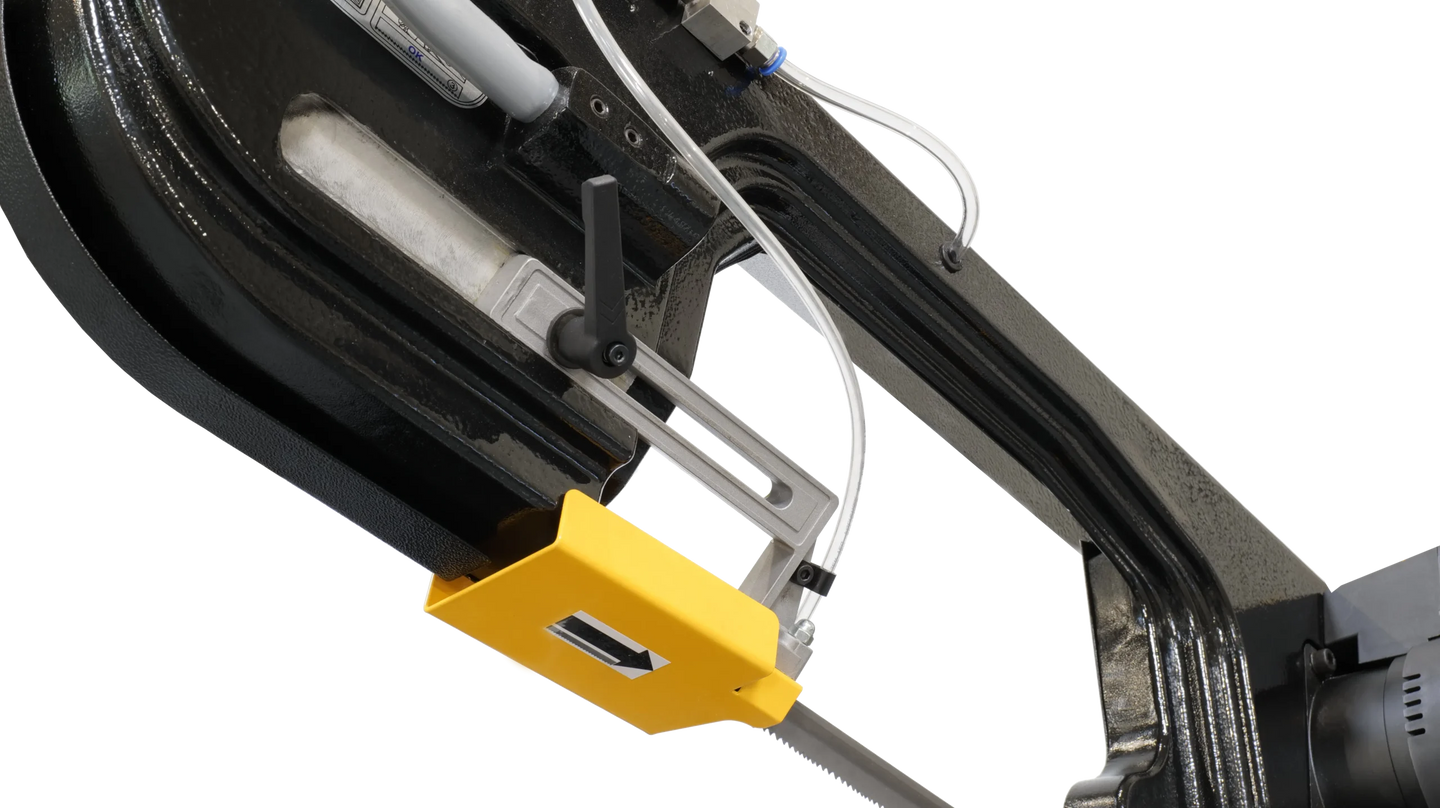

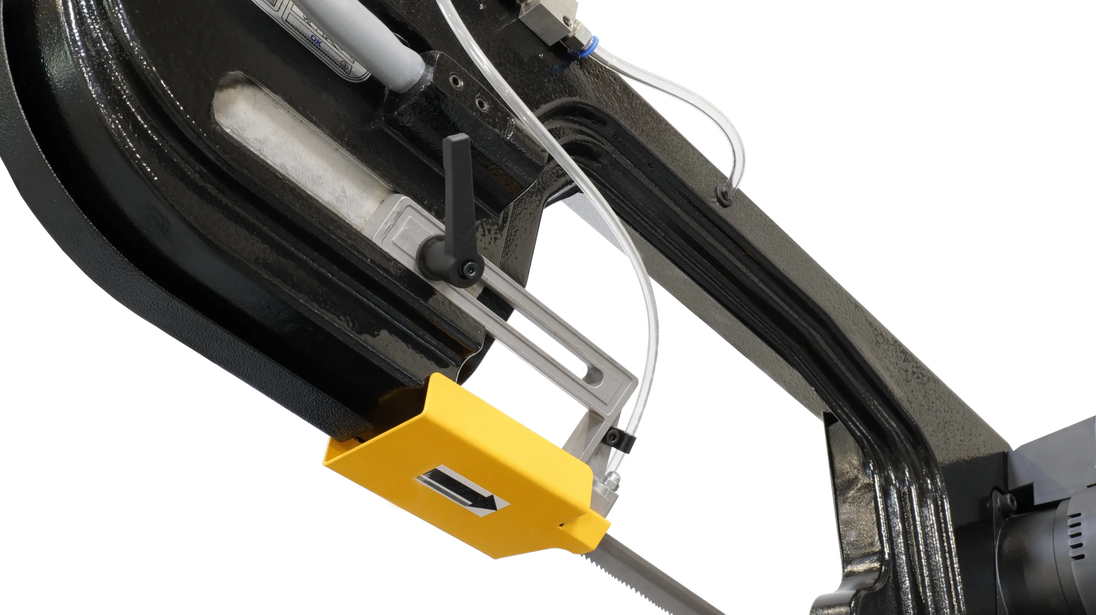

- Adjustable blade guide arm positions close to workpiece to minimize flex
Stand & Build
- Assembled dimensions: 44.1 × 17 × 58.26 in (1120 × 430 × 1480 mm)
- Four-panel powder-coated steel stand assembles with 13mm hardware (included)
- Machine net weight: 216 lbs (98 kg); stand net weight: 33 lbs (15 kg)
- Noise level approximately 62 dB(A)
- Mobility kit available separately
Features
| Spec | Value |
|---|---|
| Motor | 2HP |
| Voltage | 120V |
| Blade Speed | 98–262 FPM |
| Cutting Capacity 90° (Round) | 6.69 in |
| Cutting Capacity 90° (Rectangular) | 6.69 × 6.69 in |
| Cutting Capacity 45° (Round) | 4.92 in |
| Cutting Capacity 45° (Rectangular) | 4.92 × 4.92 in |
| Cutting Capacity 60° (Round) | 2.95 in |
| Cutting Capacity 60° (Rectangular) | 2.95 × 2.96 in |
| Cutting Angle Range | 0°–60° |
| Blade Size | 80.12 × 0.035 × 0.787 in |
| Bow-Saw Material | Aluminum |
| Cutting Fluid System | Integrated recirculating pump |
| Noise Level | ~62 dB(A) |
| Assembled Dimensions (L×W×H) | 44.1 × 17 × 58.26 in (1120 × 430 × 1480 mm) |
| Machine Weight (Net) | 216 lbs (98 kg) |
| Machine Weight (Gross) | 253.5 lbs (115 kg) |
| Stand Weight (Net) | 33 lbs (15 kg) |
| Stand Weight (Gross) | 35.27 lbs (16 kg) |
| Packing Dimensions | 43.31 × 21.65 × 23.62 in |
Standard Equipment
- B:7X Horizontal Bandsaw (with blade installed and cutting fluid included)
- Four-panel steel stand with assembly hardware
- Work stop rod and handle assembly
- Removable drip tray
- Hardware bag
Manuals & Downloads
Installation, Maintenance & Warranty
Warranty (Machine): 1 year from delivery
Warranty (Parts): 30 days from delivery
Warning: This product contains Nickel, a chemical known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Compare Horizontal Bandsaws
| Model Number | MHBAND5X5 | MHBAND7X7 |
|---|---|---|
| Motor | 1HP | 2HP |
| Voltage | 120V | 120V |
| Blade Speed | 82–262 FPM | 98–262 FPM |
| Capacity 90° (Round) | 4.92 in | 6.69 in |
| Capacity 90° (Rectangular) | 5.12 × 4.92 in | 6.69 × 6.69 in |
| Capacity 45° (Round) | 2.99 in | 4.92 in |
| Capacity 45° (Rectangular) | 2.99 × 2.99 in | 4.92 × 4.92 in |
| Capacity 60° (Round) | 1.97 in | 2.95 in |
| Capacity 60° (Rectangular) | 1.97 × 1.97 in | 2.95 × 2.96 in |
| Cutting Angle Range | 0°–60° | 0°–60° |
| Blade Size | 0.51 × 0.026 × 56.69 in | 80.12 × 0.035 × 0.787 in |
| Bow-Saw Material | Aluminum | Aluminum |
| Cutting Fluid System | None | Integrated recirculating pump |
| Stand | Bench-mount (rubber feet) | Floor-standing steel stand (included) |
| Noise Level | ~60 dB(A) | ~62 dB(A) |
| Assembled Dimensions (L×W×H) | 26.4 × 12.2 × 18.9 in | 44.1 × 17 × 58.26 in |
| Machine Weight (Net) | 46.3 lbs (21 kg) | 216 lbs (98 kg) |
| Machine Weight (Gross) | 50.7 lbs (23 kg) | 253.5 lbs (115 kg) |
| Mobility Kit | N/A | Available separately |
| Best For | Bench shops, light-duty cutting, portable use | Production shops, larger stock, extended runs |
