Product Description

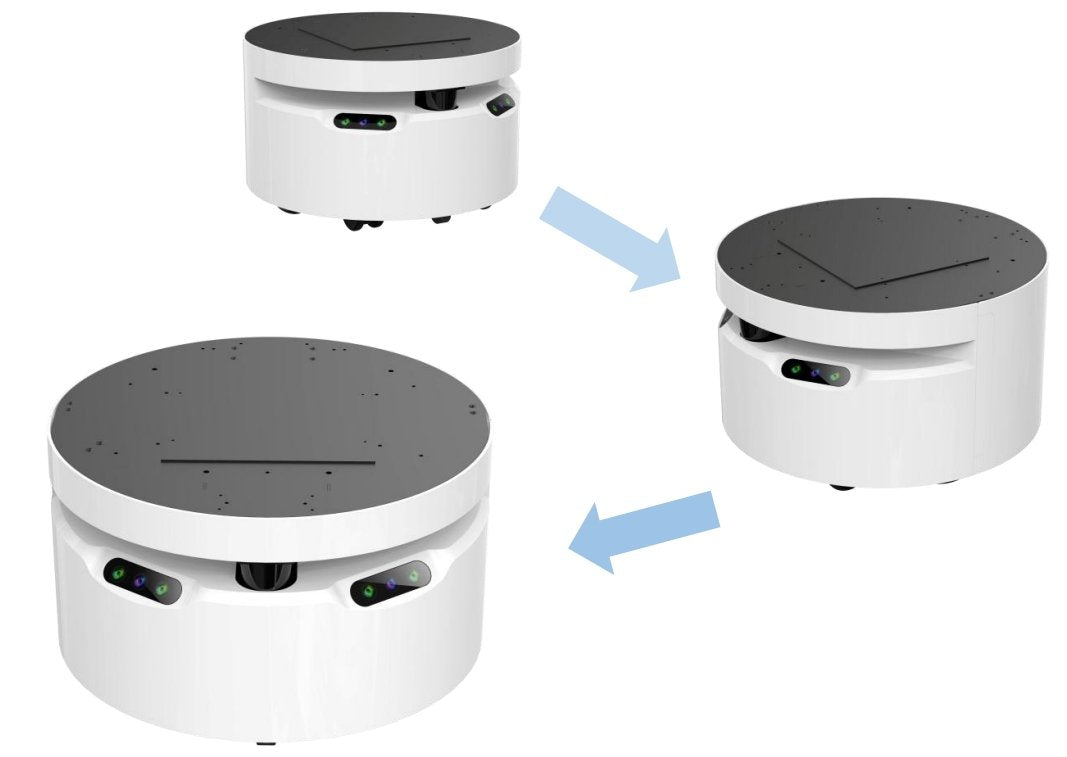

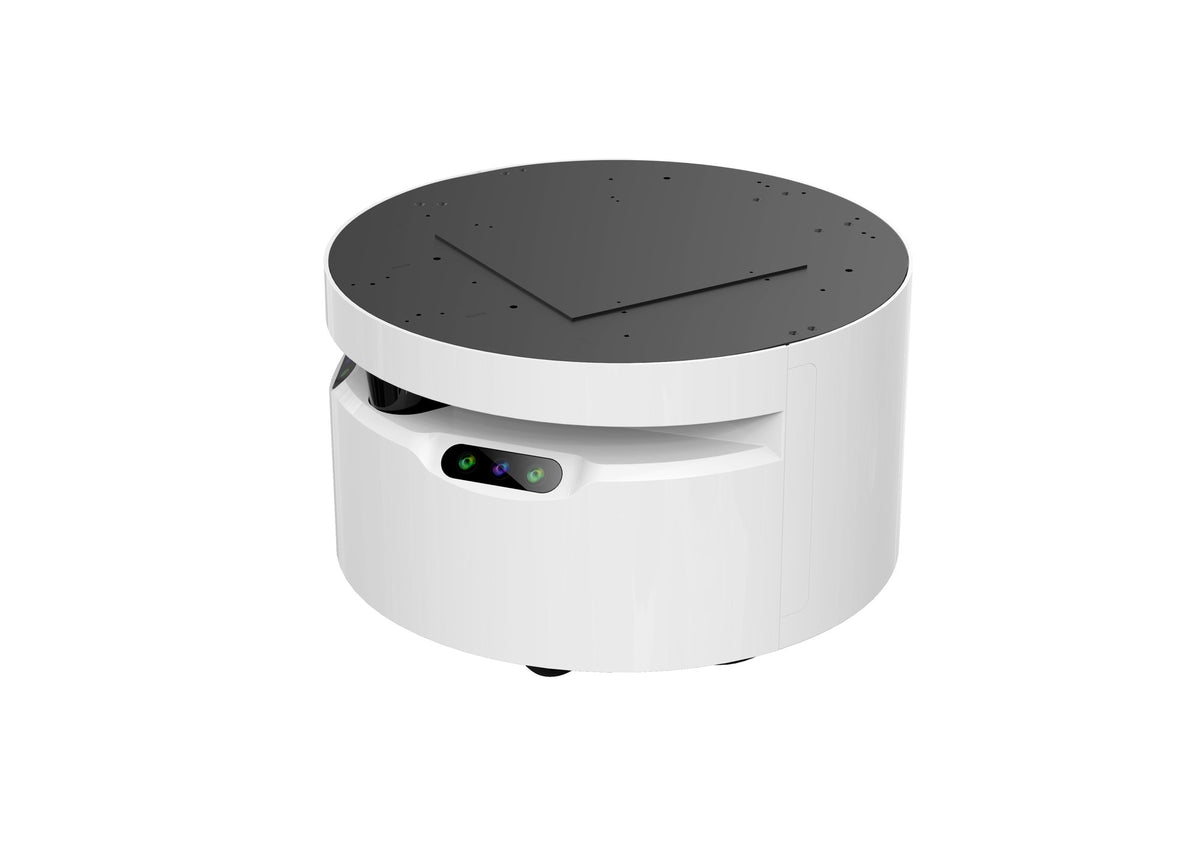

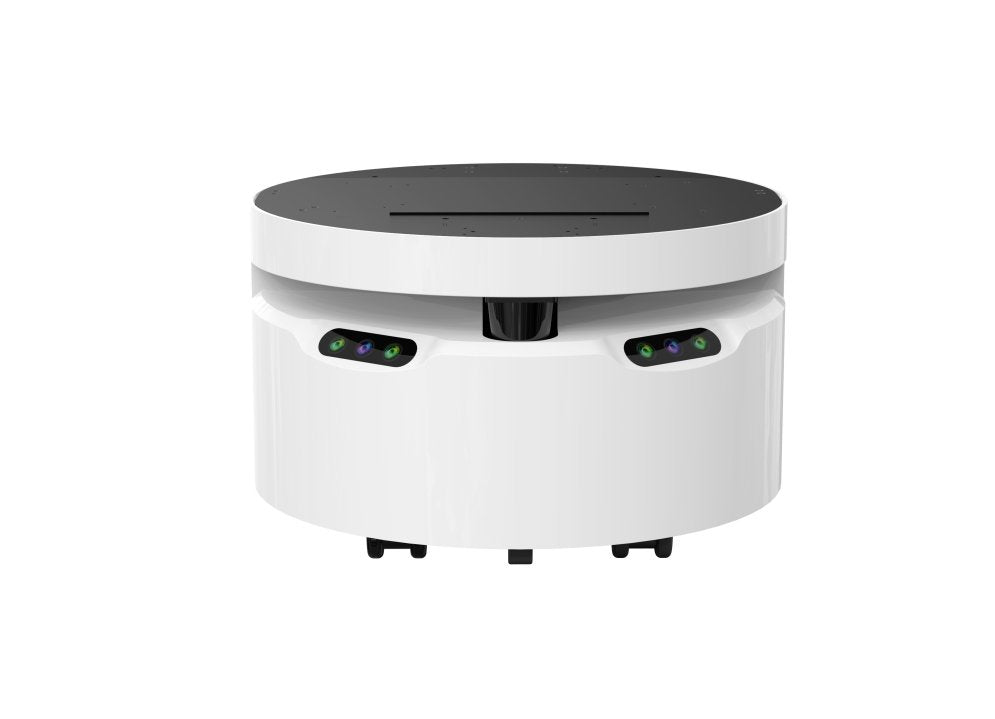

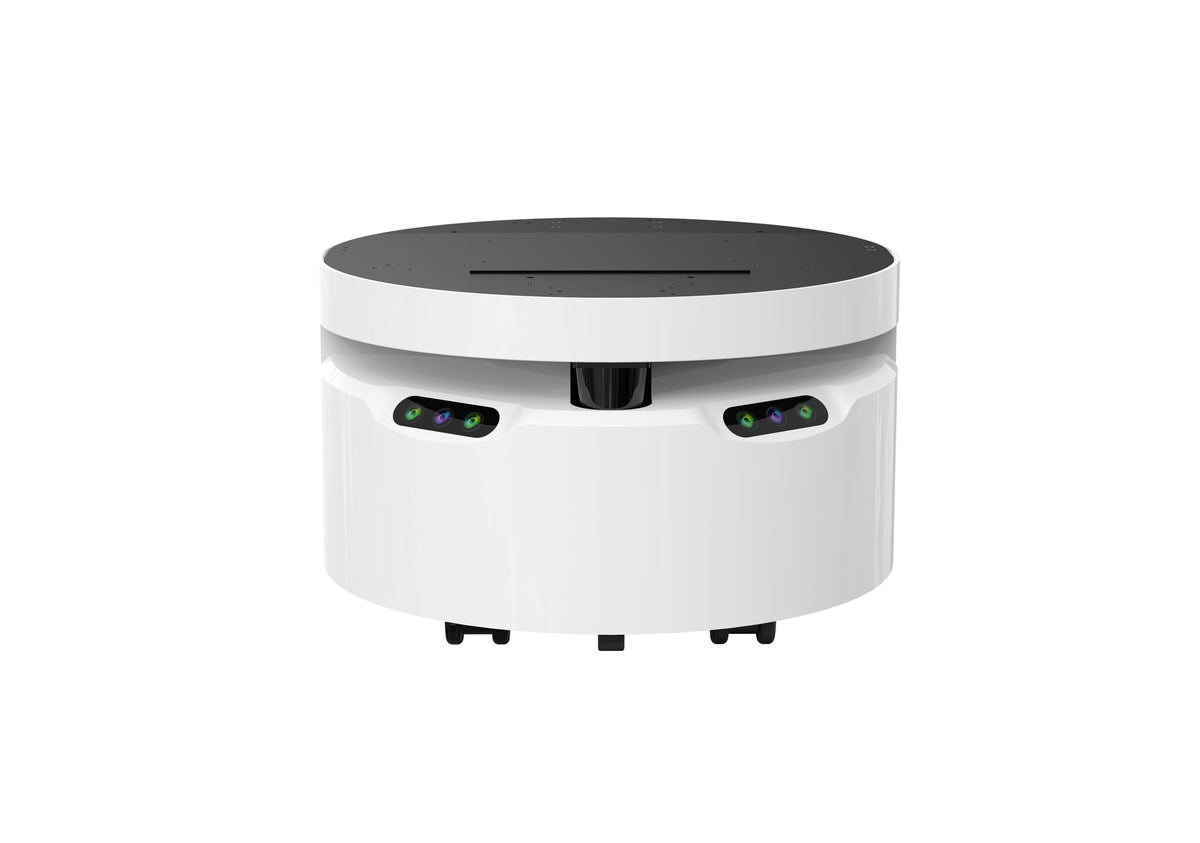

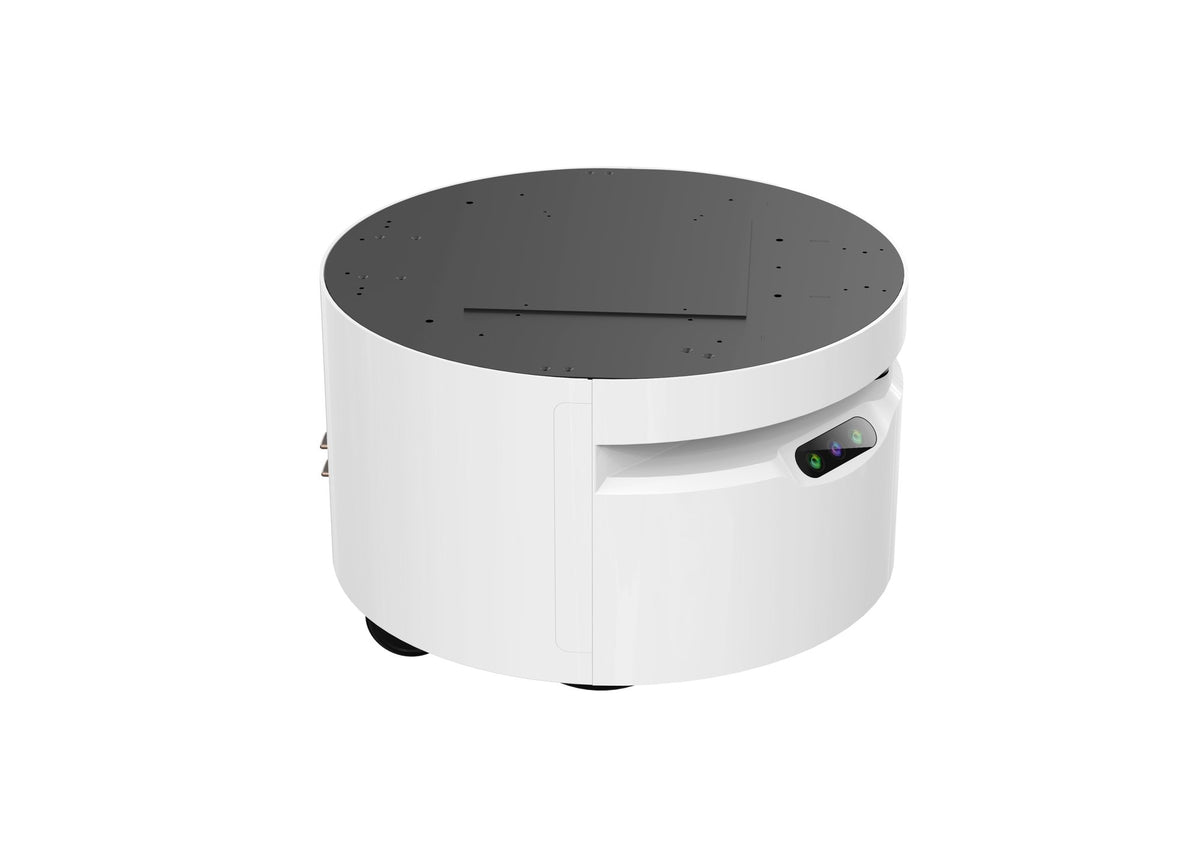

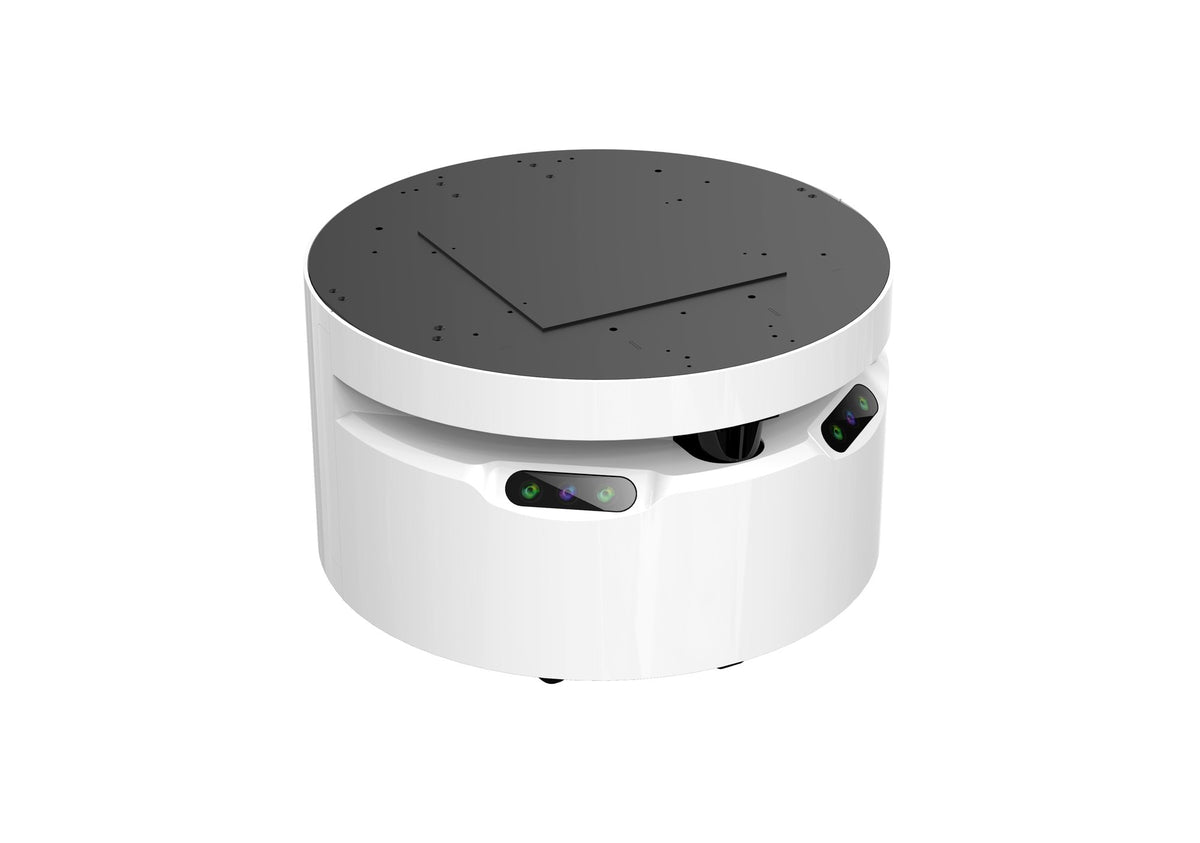

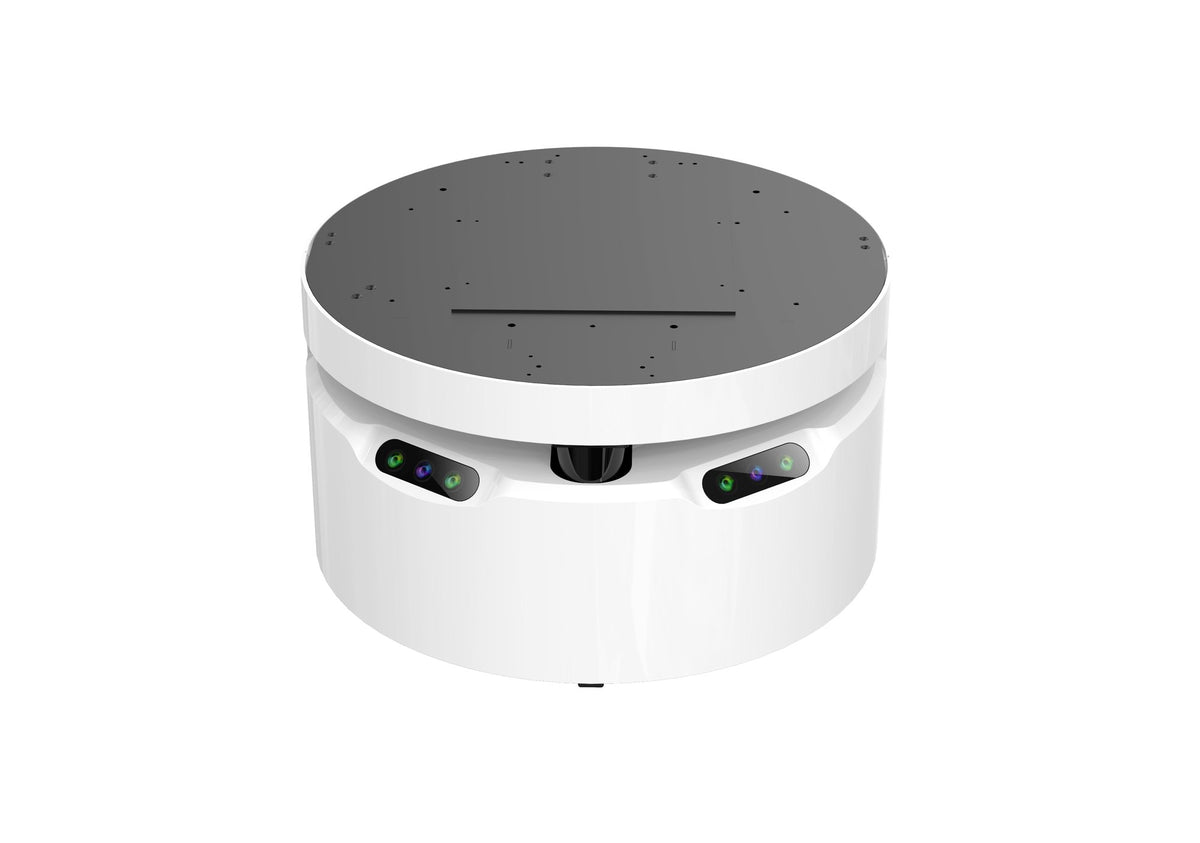

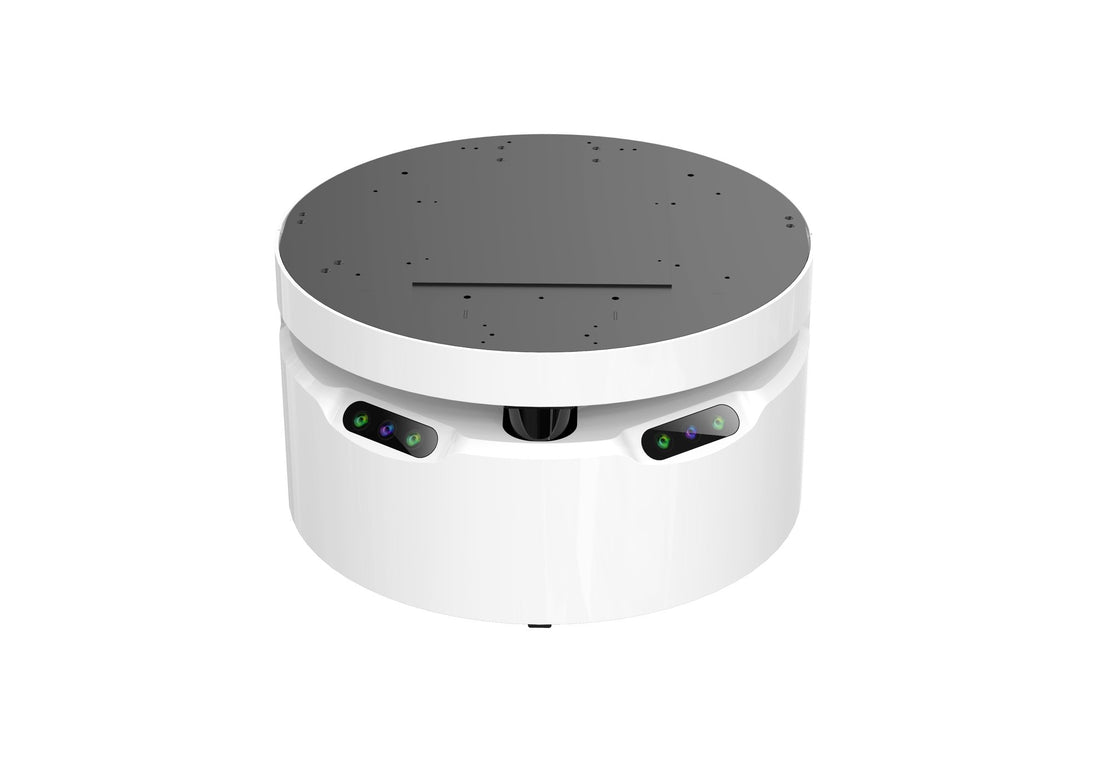

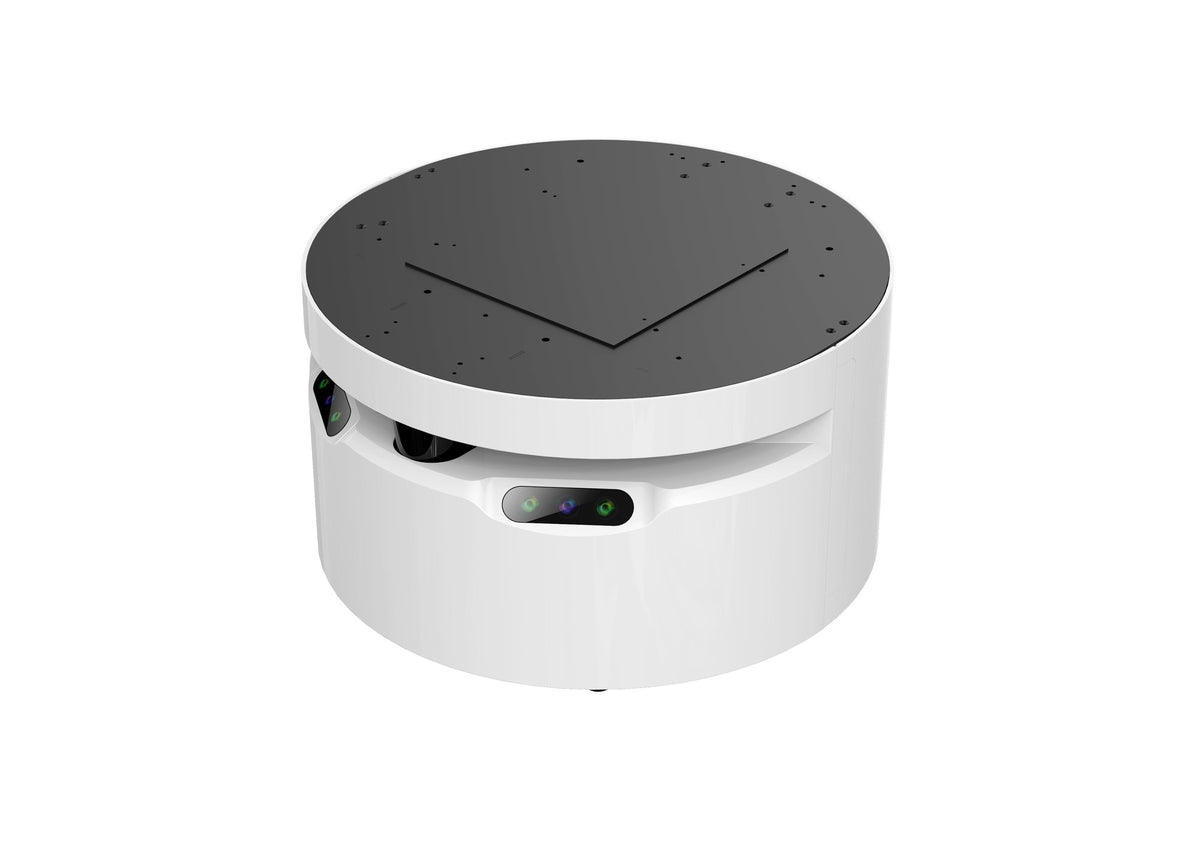

ATEAGO S5 Robot Chassis

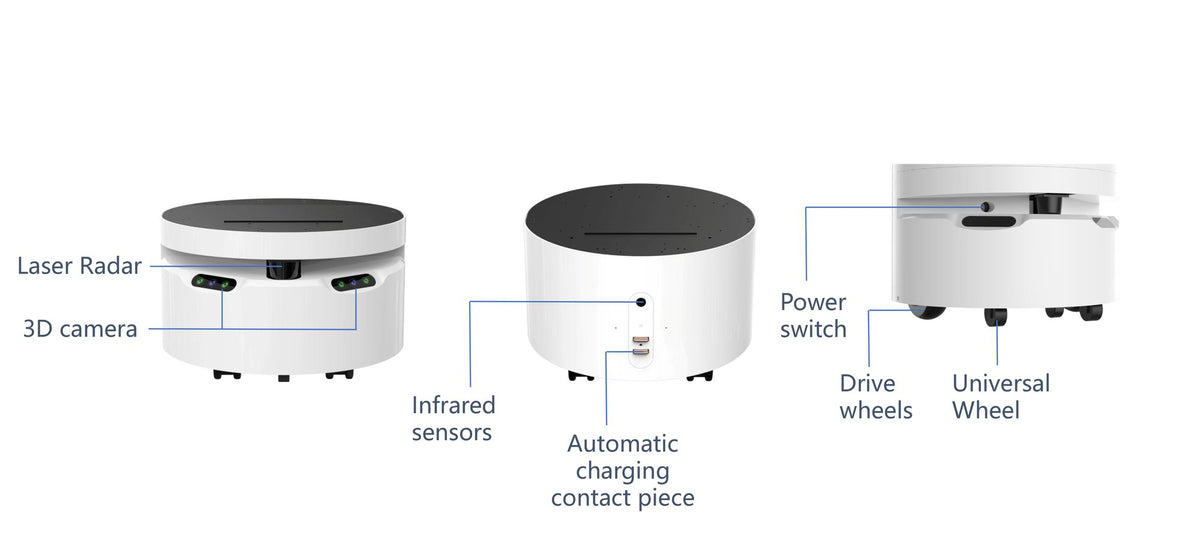

The ATEAGO S5 chassis is built with ATEAGO's own navigation and positioning system, using 270° lidar and dual 3D cameras. The driving wheels use an independent suspension structure that significantly smooths the robot's movement, while the SDK platform is open to all developers with full development documentation to validate and build robot applications quickly.

Key Features

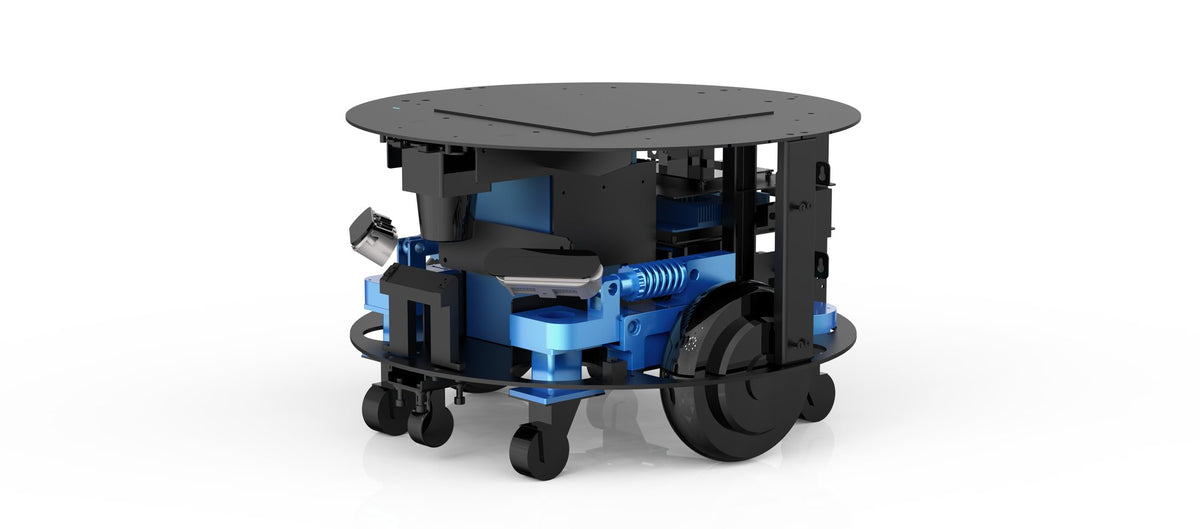

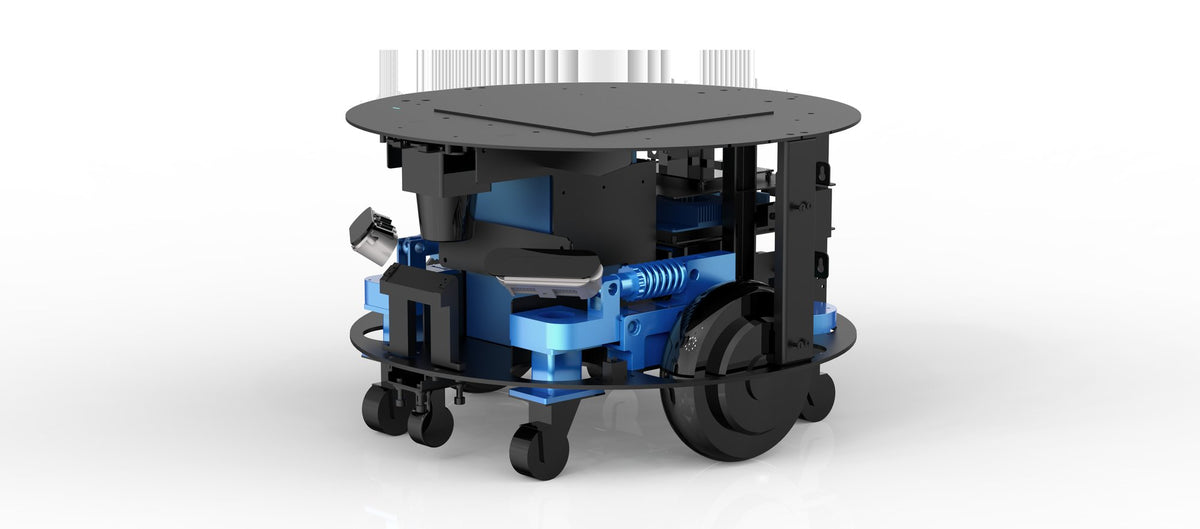

  • Sheet-metal chassis with 60 kg capacity, stable and undeformed
  • 270° autonomous obstacle avoidance with flexible steering

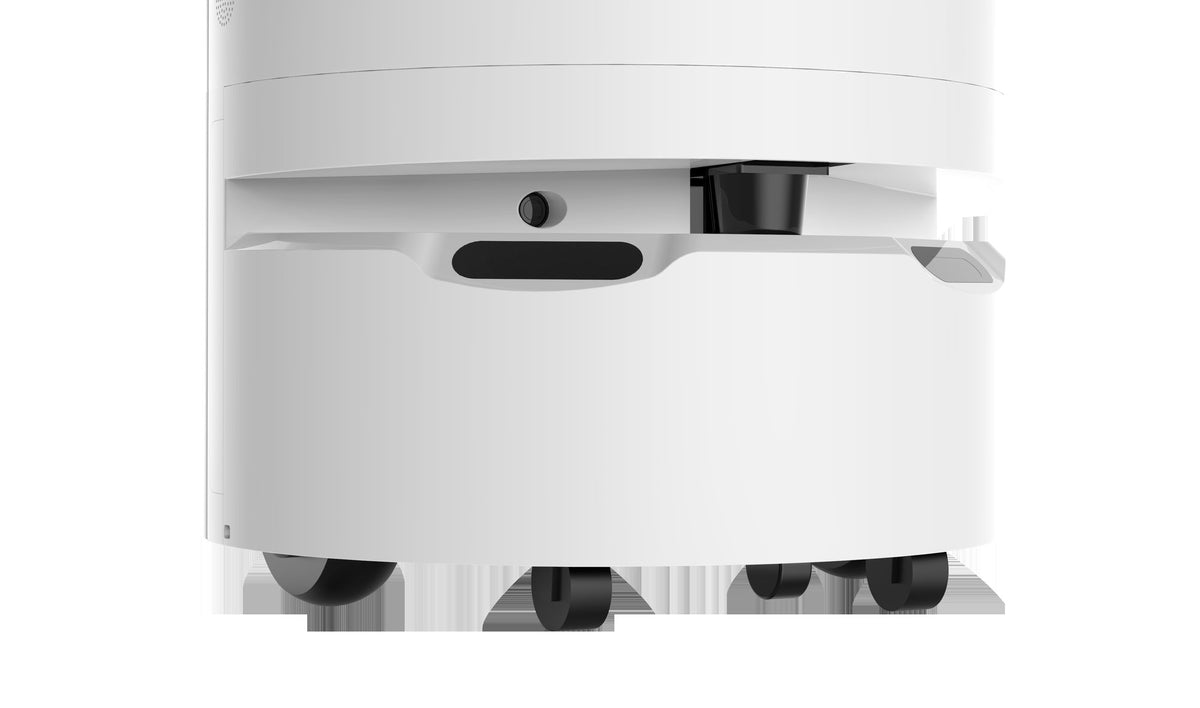

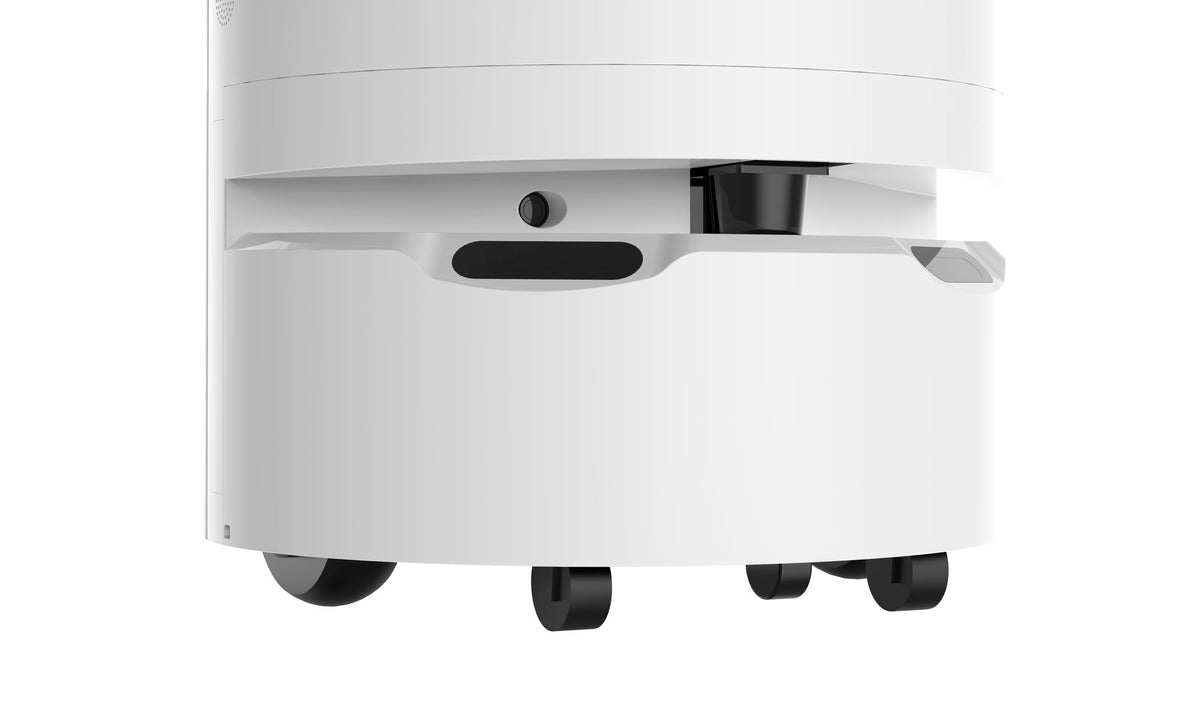

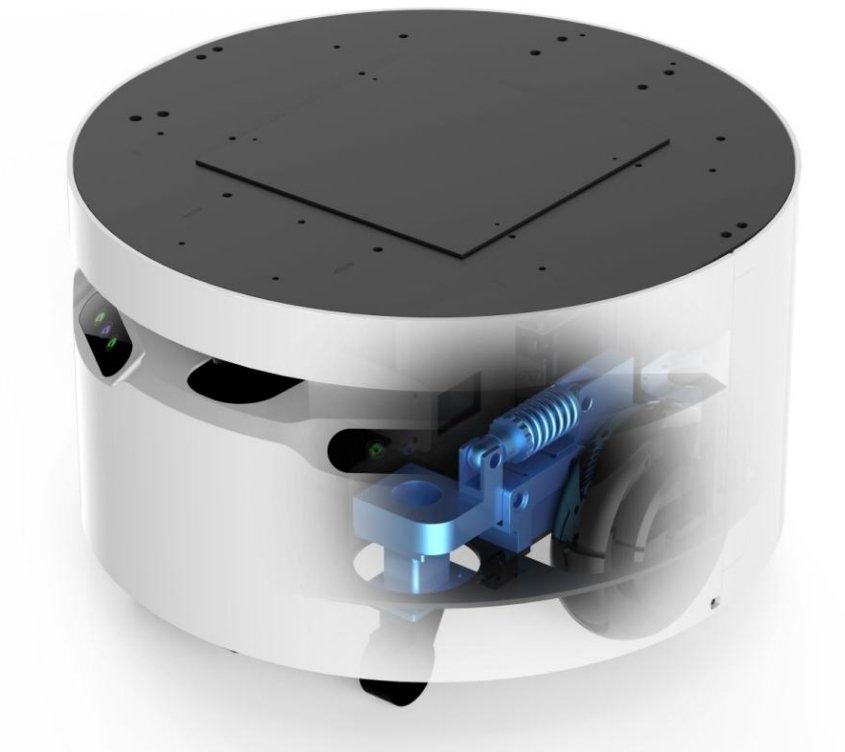

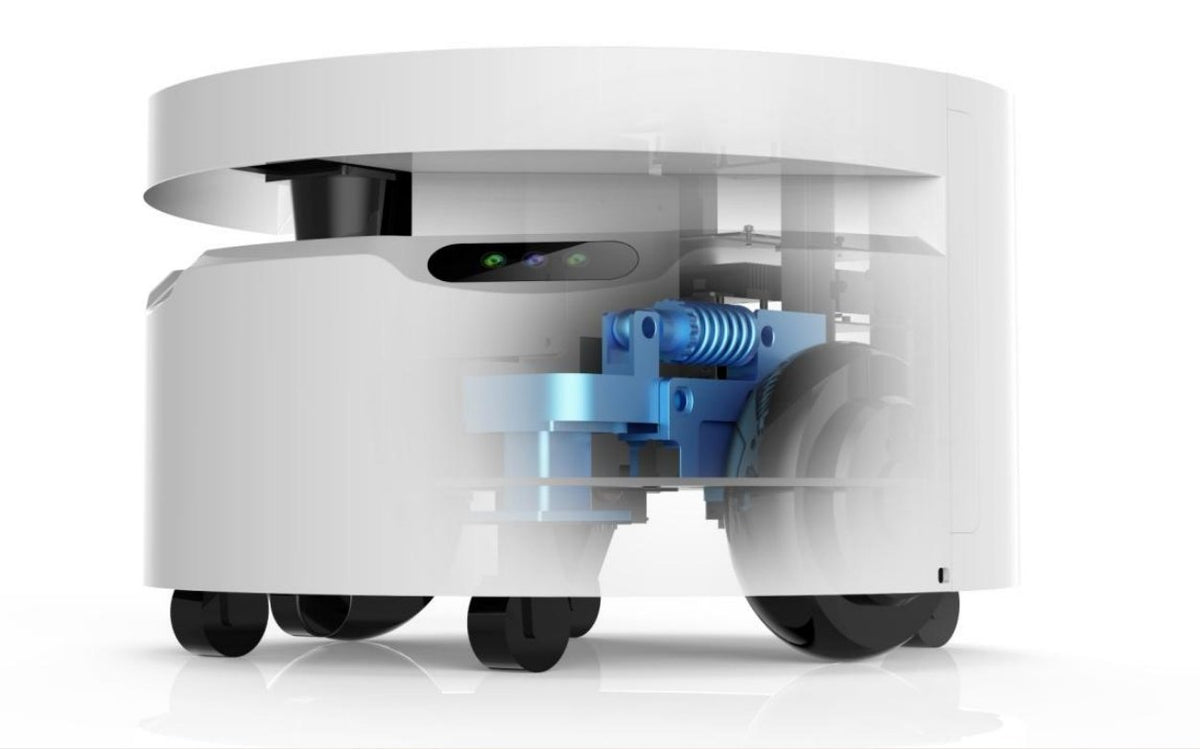

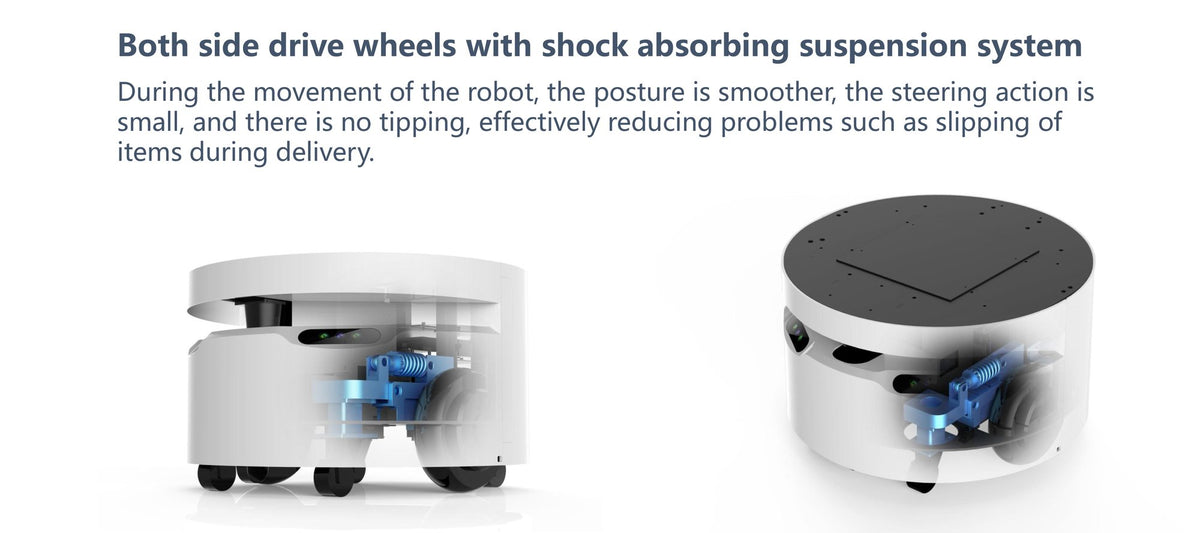

  • Independent suspension structure on both drive wheels for smoother movement, small steering action and no tipping
  • Remote navigation deployment for easy, fast robot installation
  • Autonomous dispatch system with multi-machine collaboration to avoid blocking and keep delivery efficient

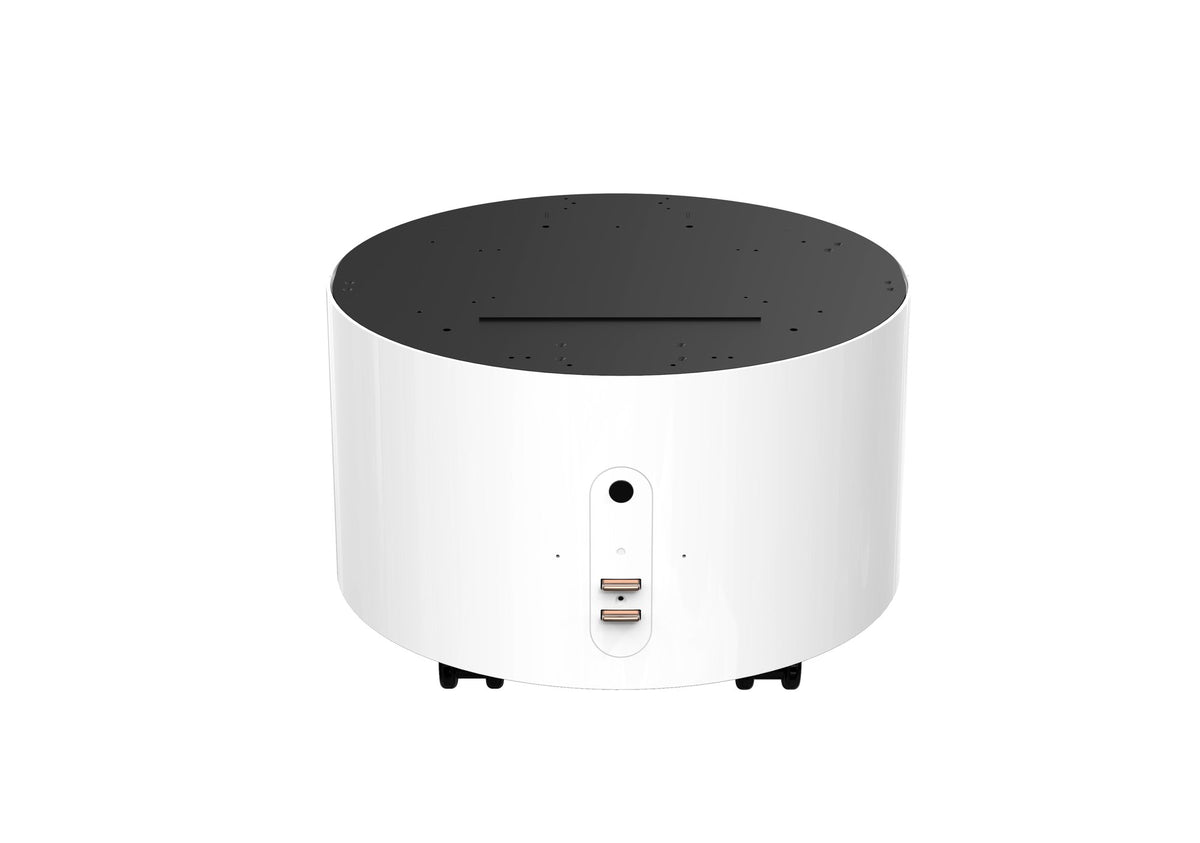

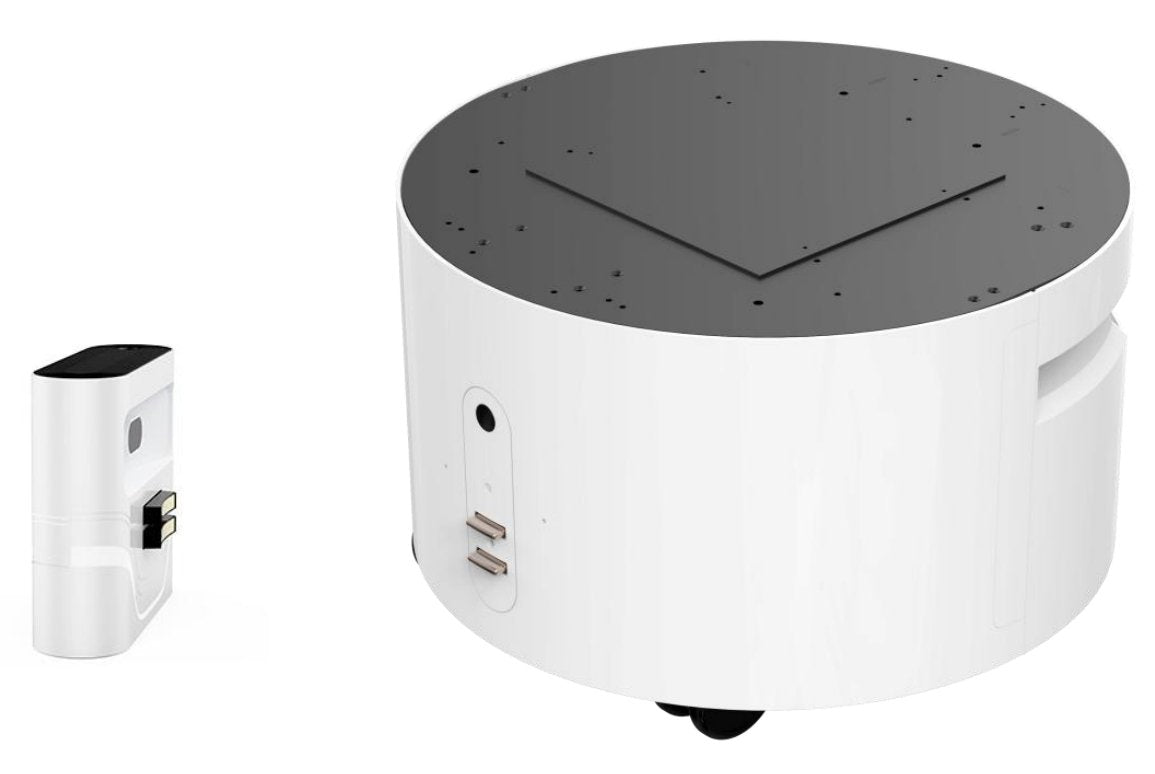

  • Automatic recharging when power falls below a custom minimum, no manual operation required
  • Deployment without posting navigation codes, with highly accurate LIDAR + dual 3D camera positioning
  • Optional autonomous lift rides across multiple floors with automatic map switching

Specifications

Product number ATEAGO S5
Machine size 500 × 500 × 310 mm (L×W×H)
Product weight 34 kg
Bearing weight 60 kg
Cruising speed 0.1–1 m/s

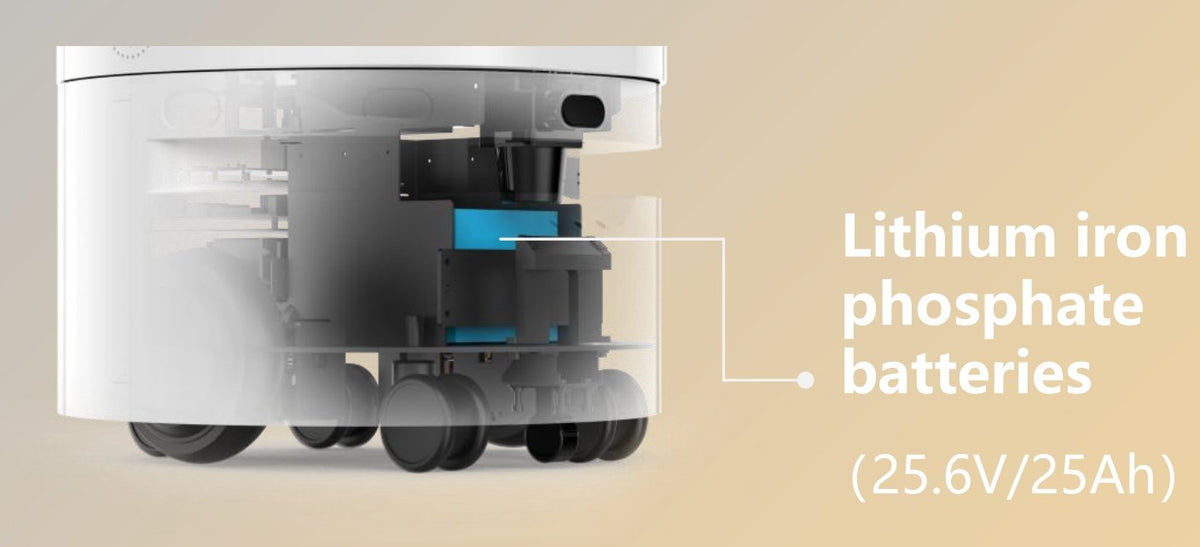

Battery capacity 25.6V / 25Ah
Battery life 20 hours
Charging time 4–8 hours
Operating system Android 5.1 or above
Network WiFi

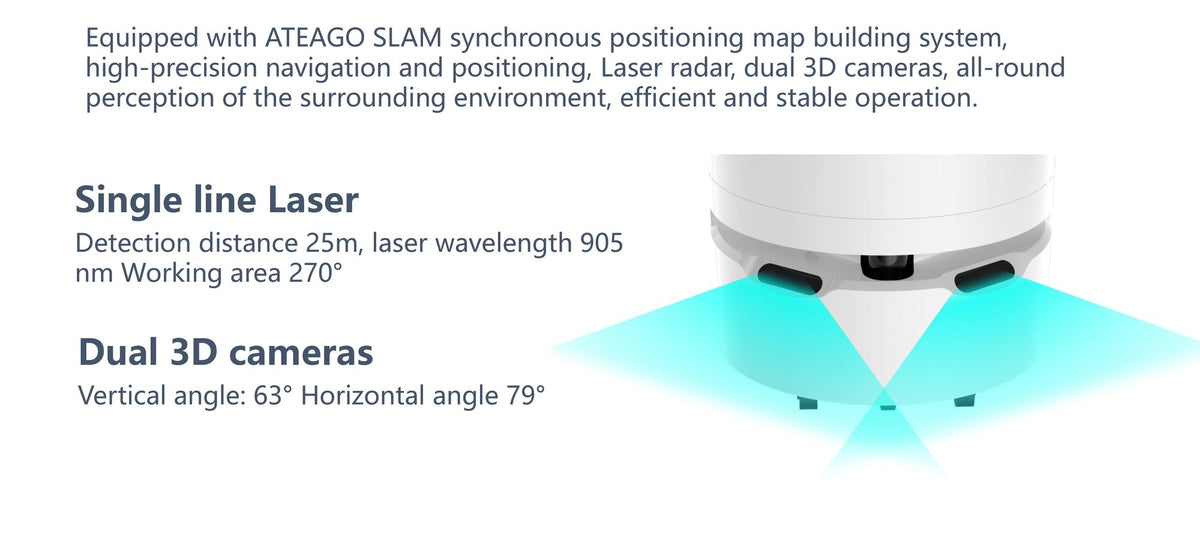

Lidar Single-line, 905 nm, 270° working area, 25 m detection
3D cameras Dual, 63° vertical / 79° horizontal
