Product Description

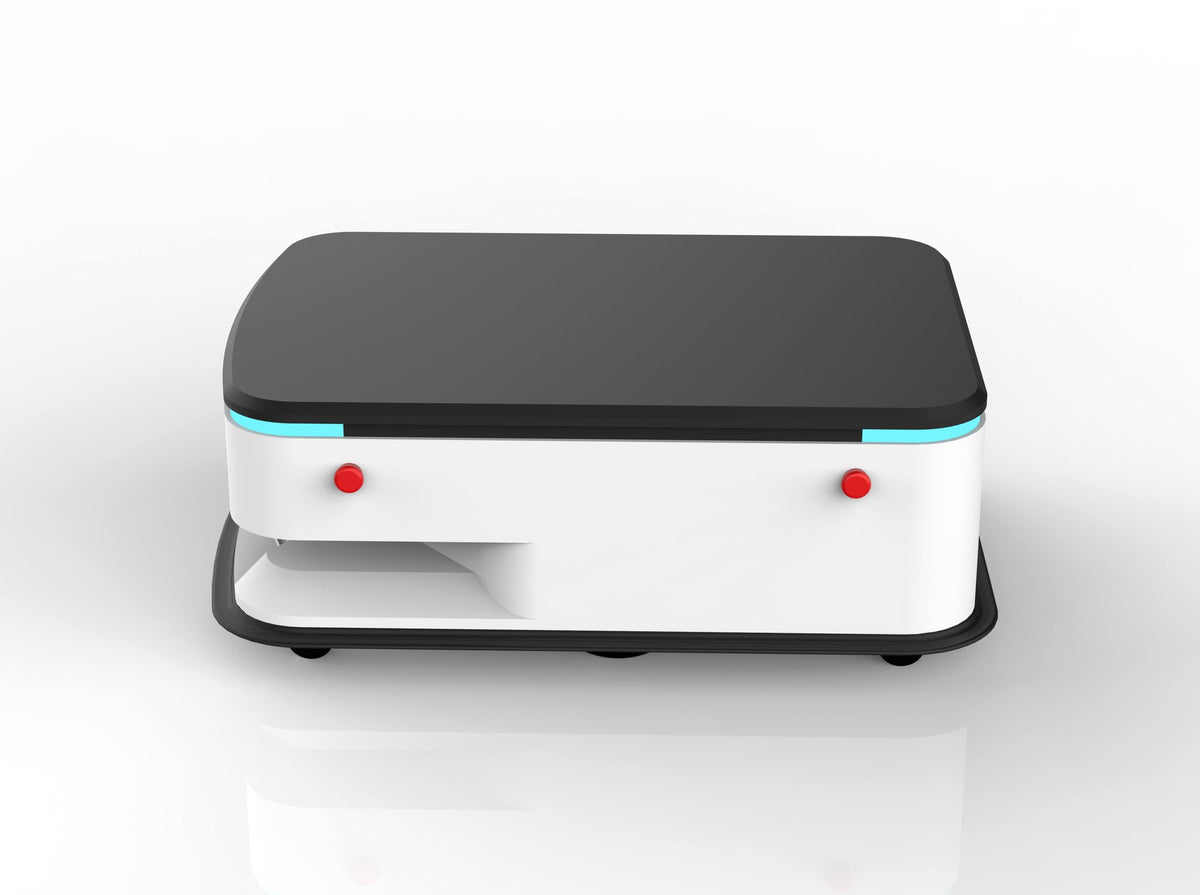

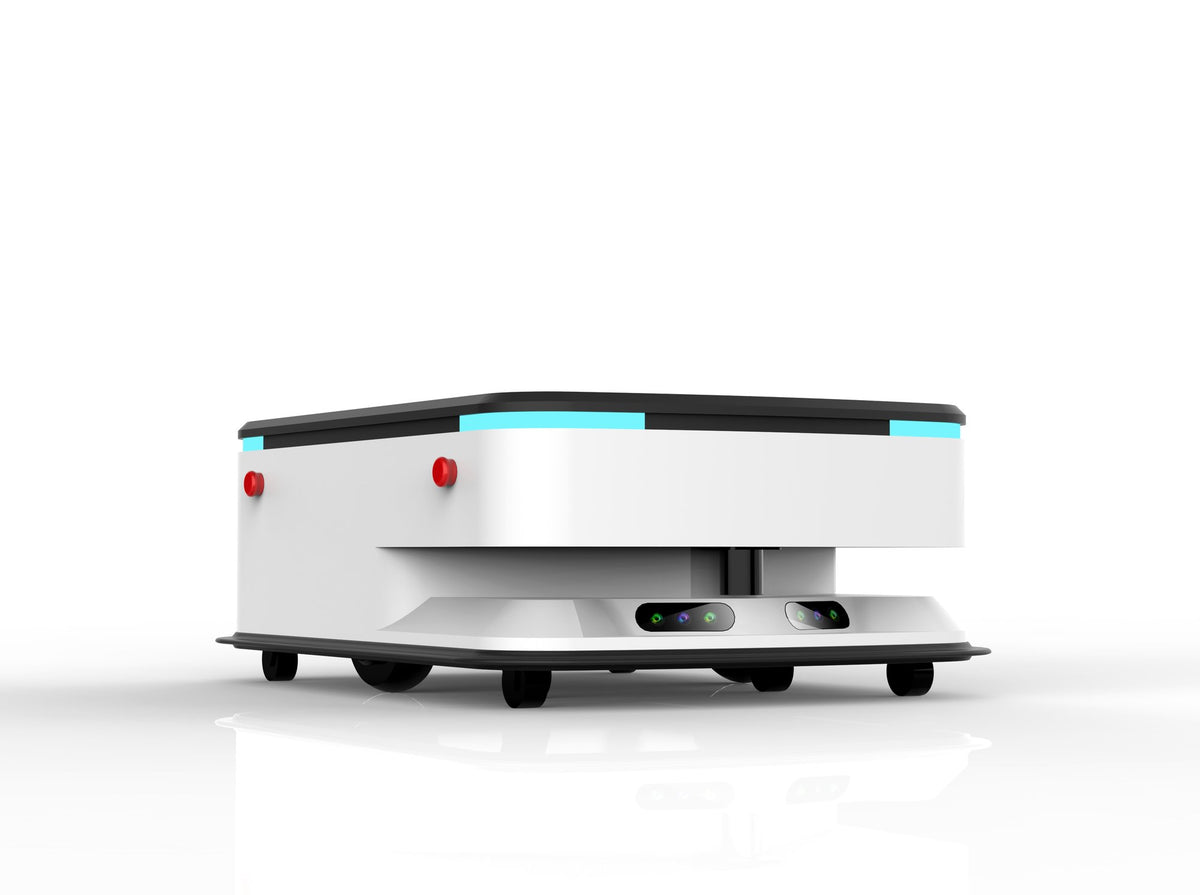

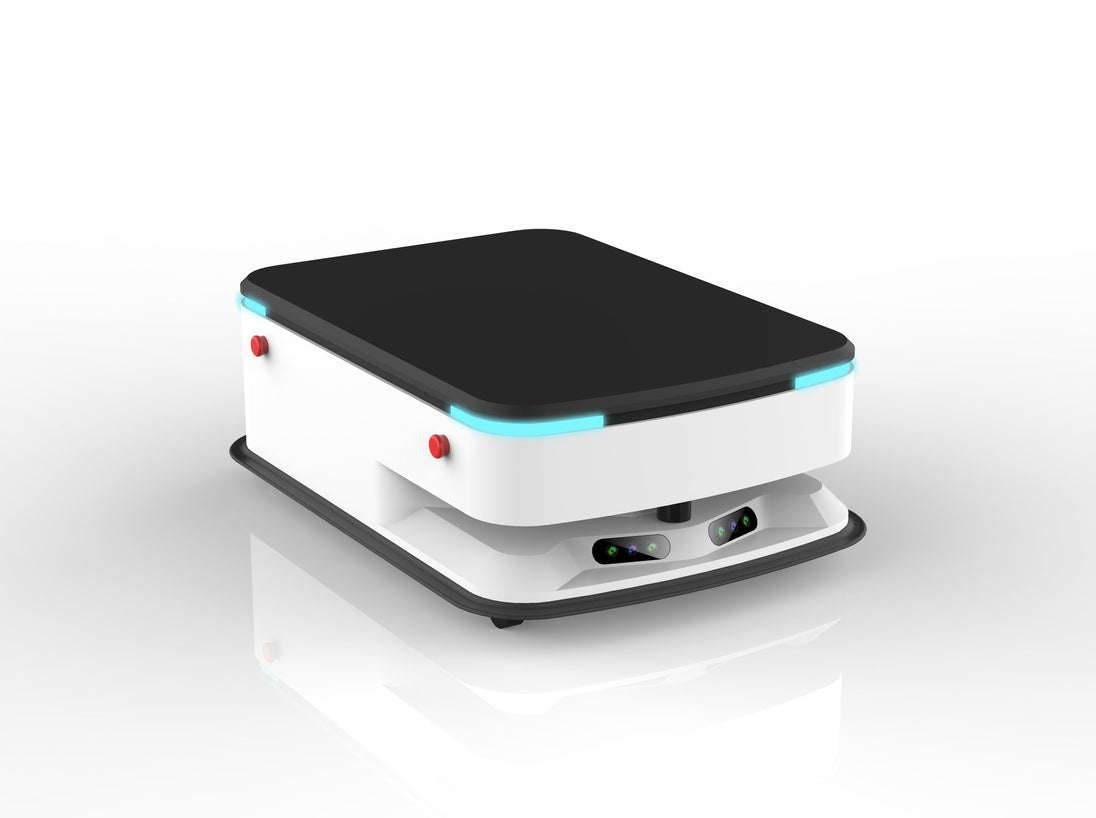

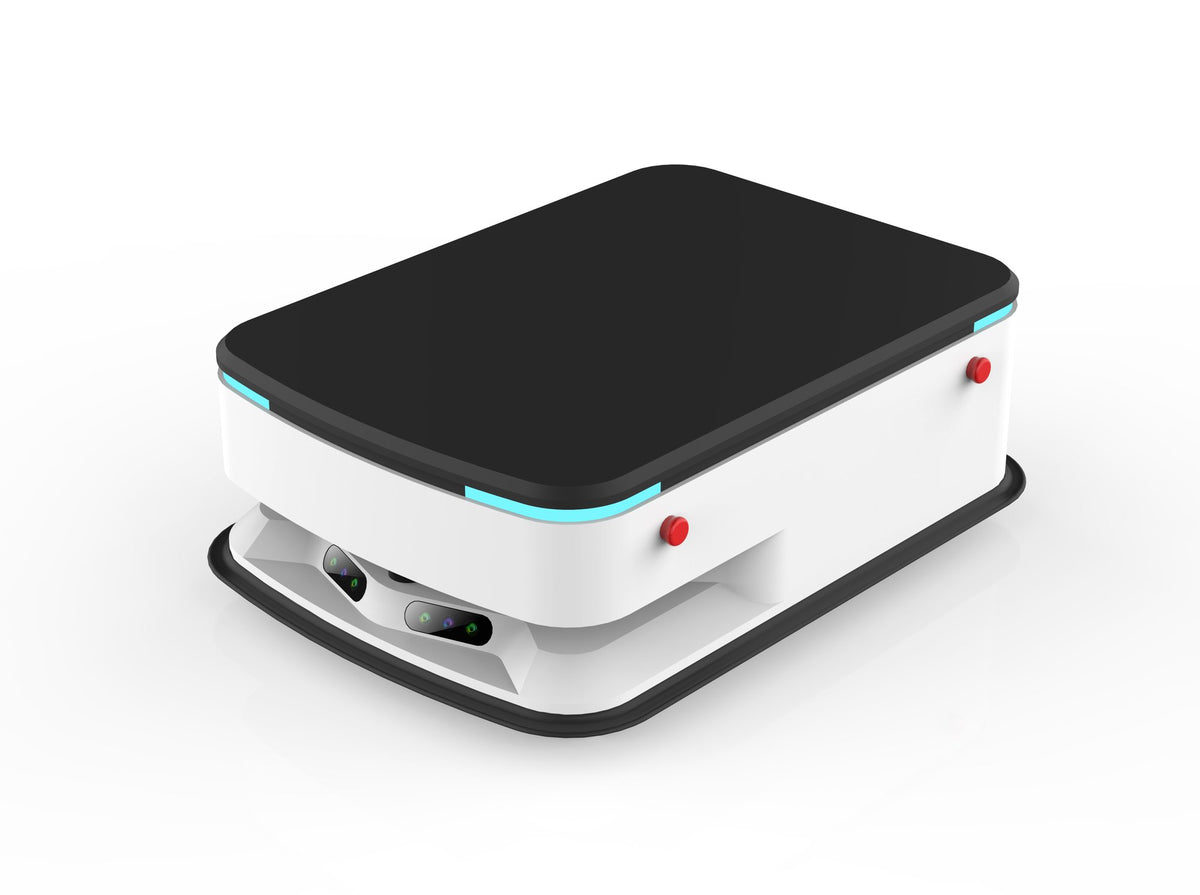

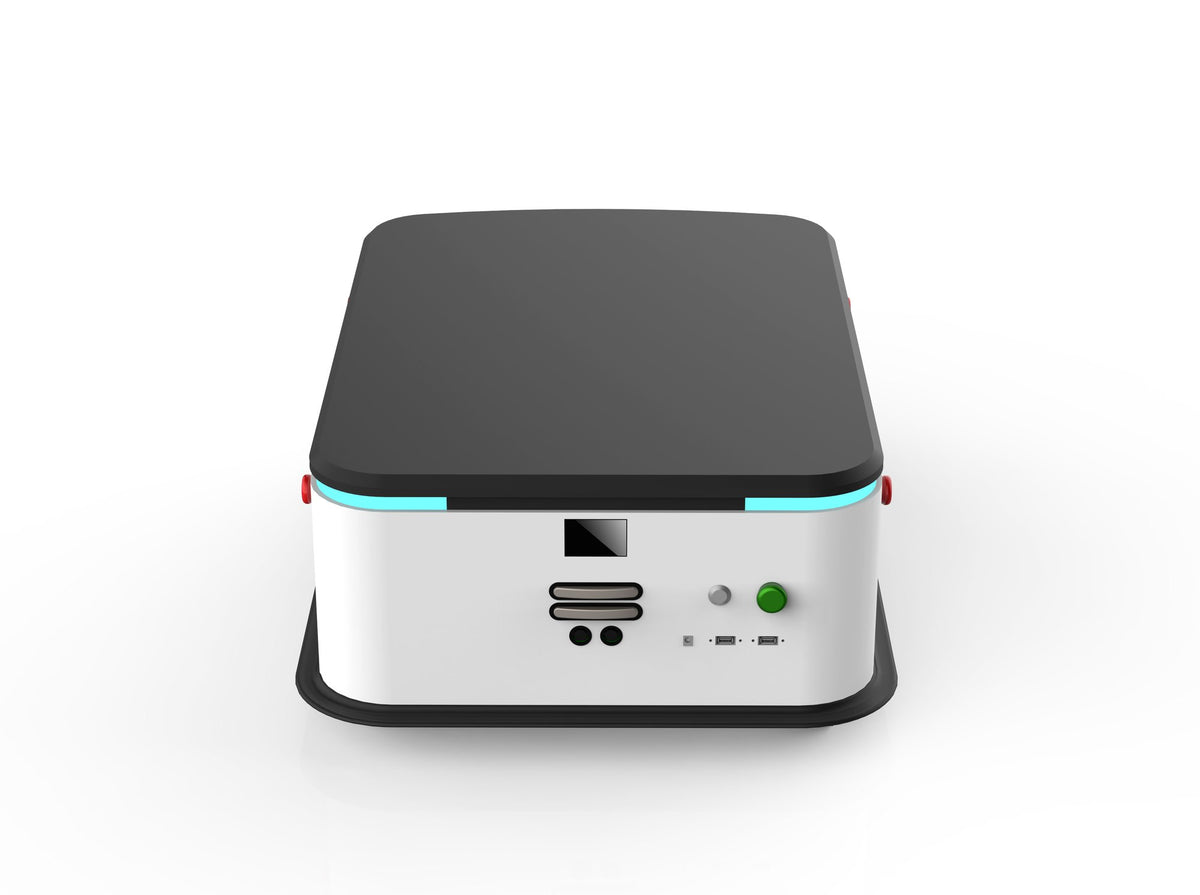

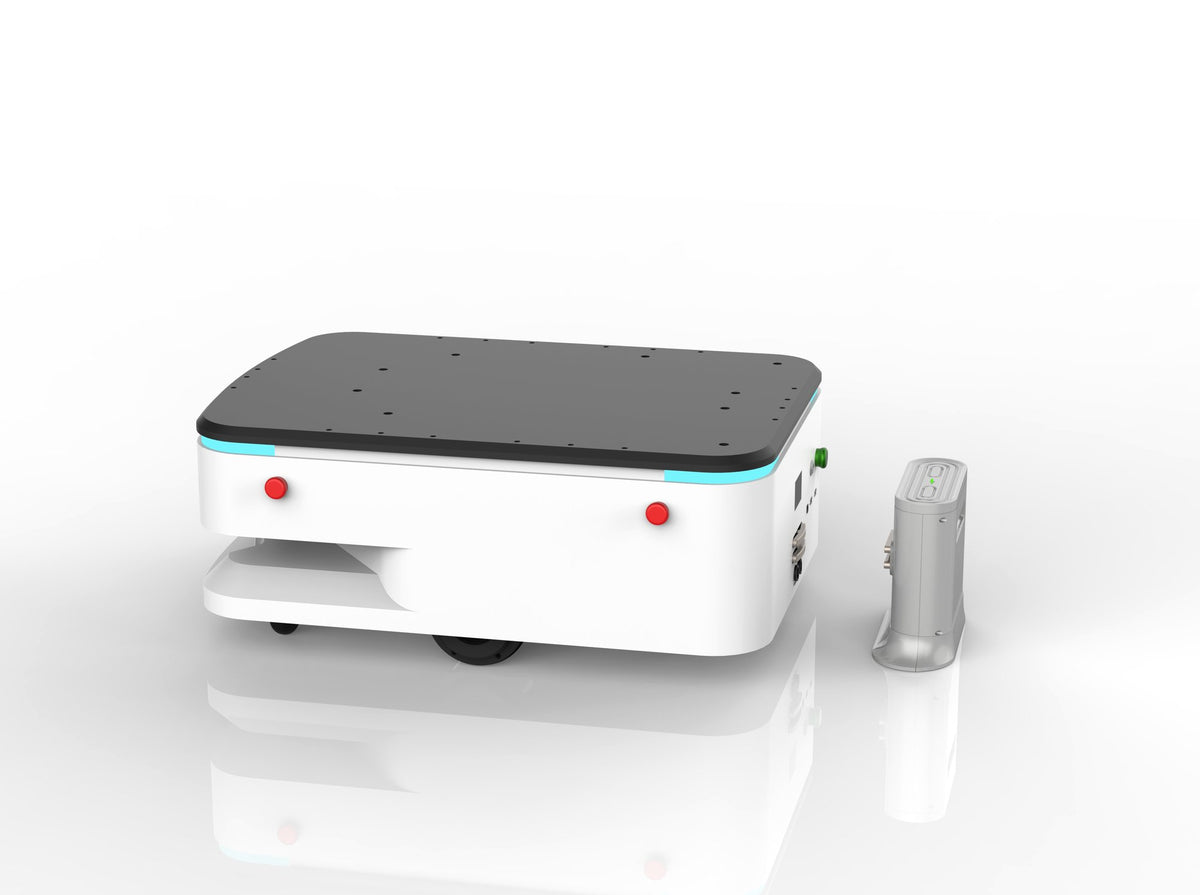

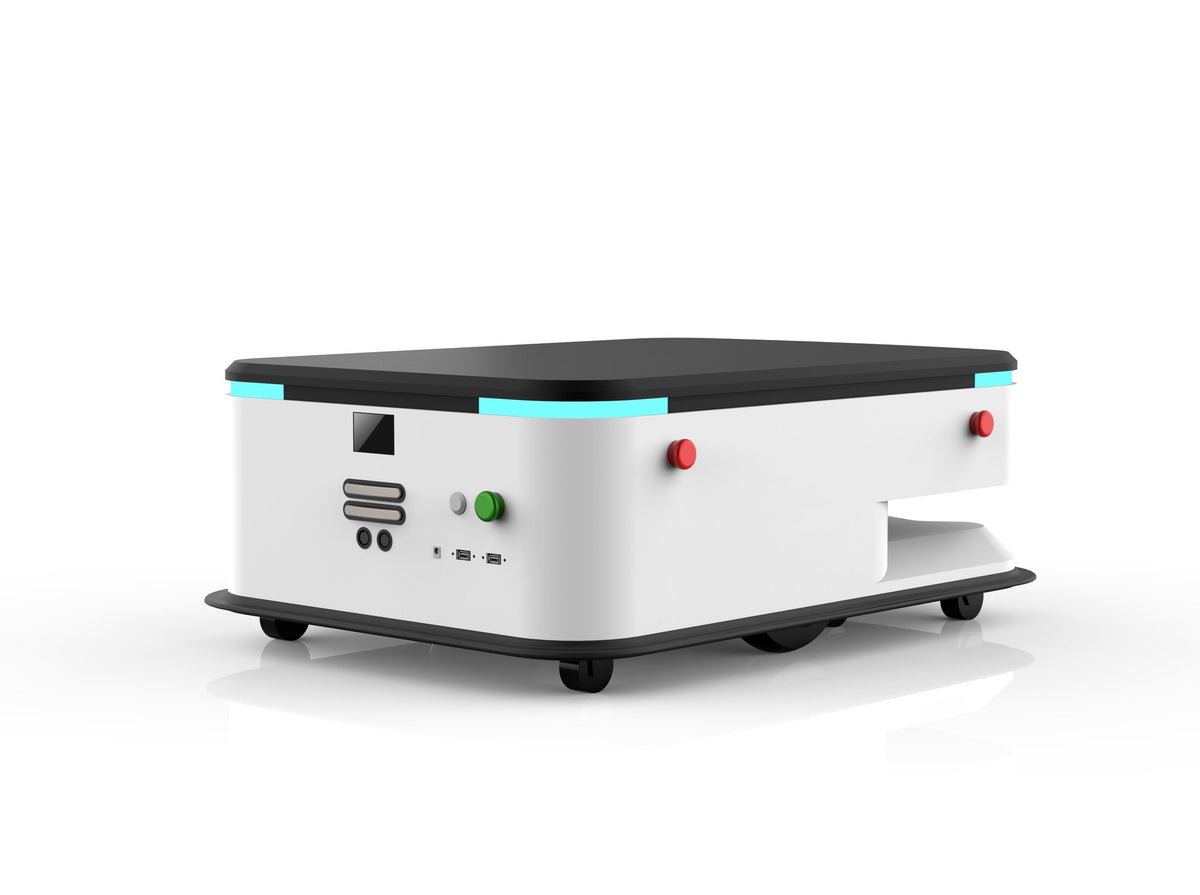

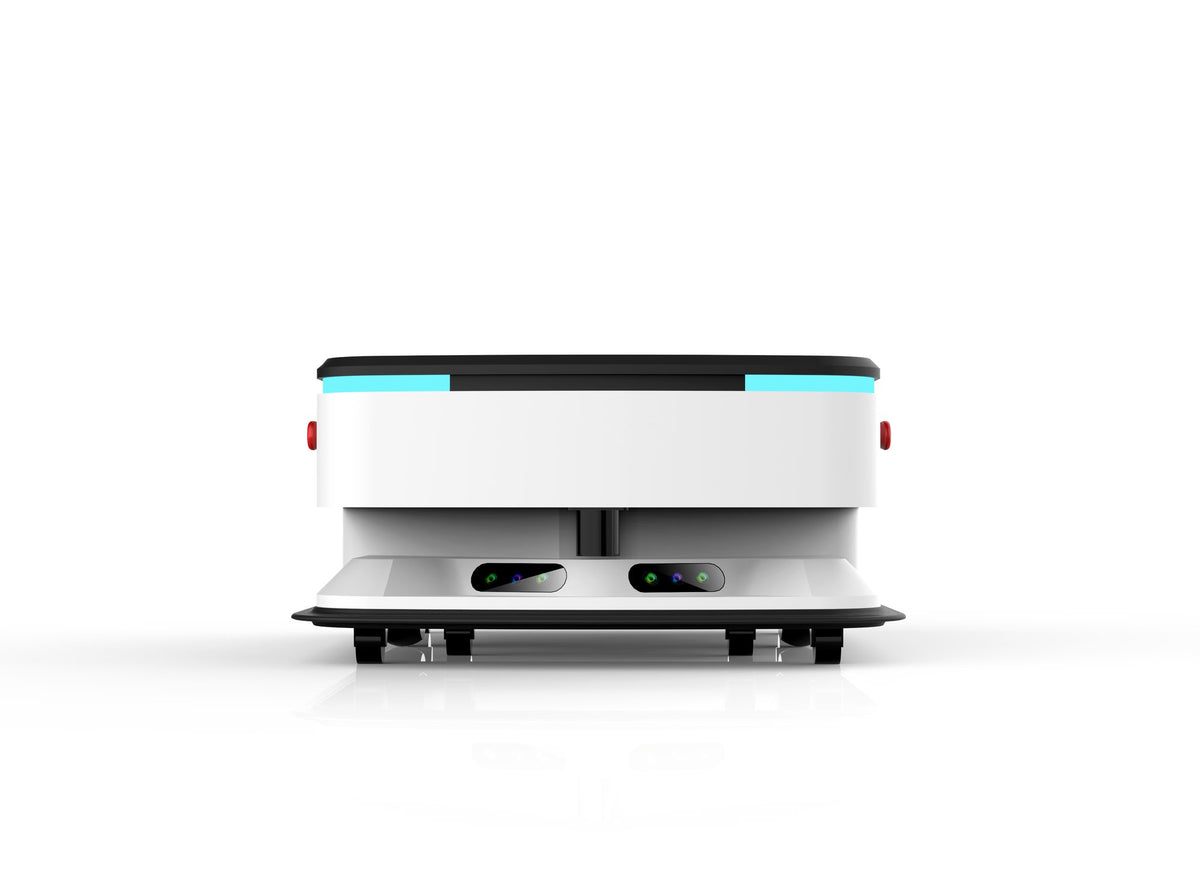

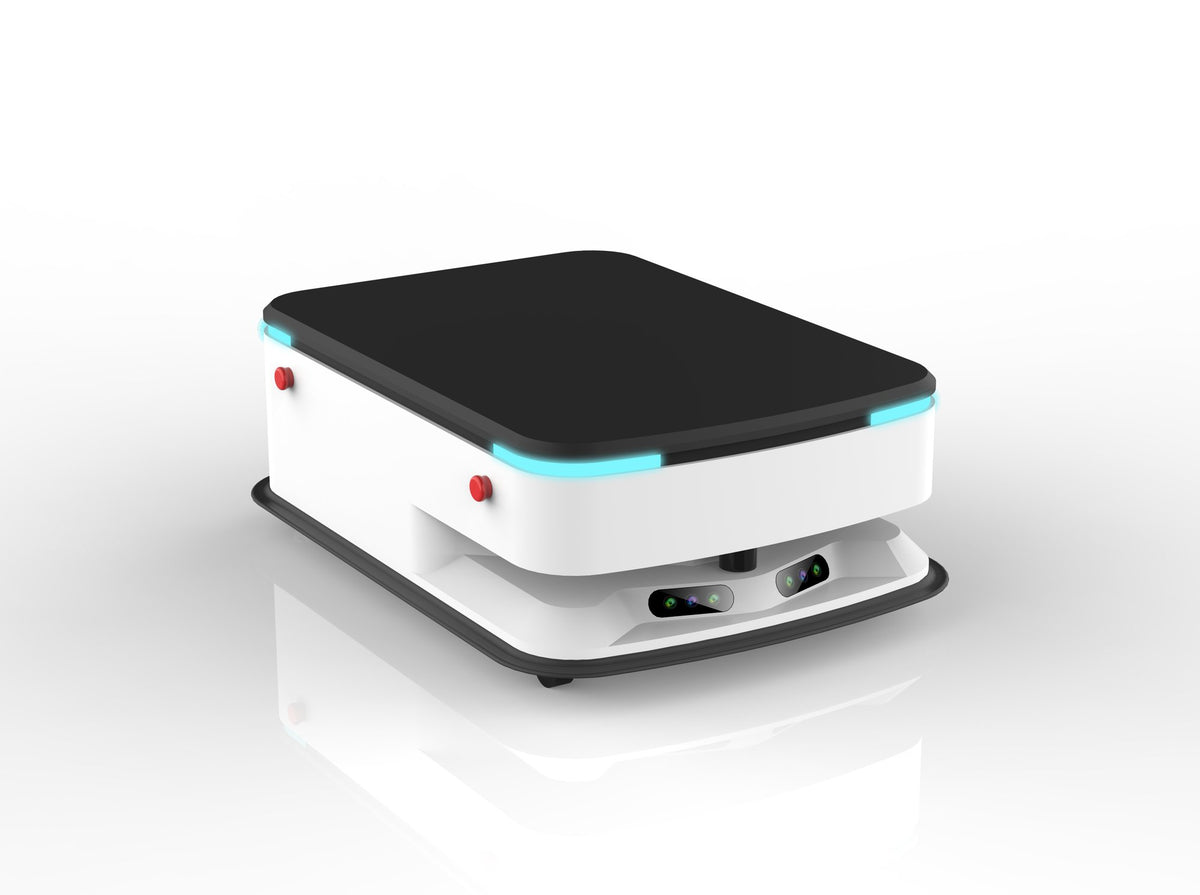

ATEAGO S6 Delivery Robot Chassis AGV

The ATEAGO S6 is a one-way backpack handling robot with a 300 kg large load capacity, equipped with ATEAGO's self-researched SLAM 2.0 autonomous positioning and navigation system for high-precision navigation and positioning. It runs on an open SDK platform with a rich API interface, supporting secondary development or customized services to meet different robot development needs.

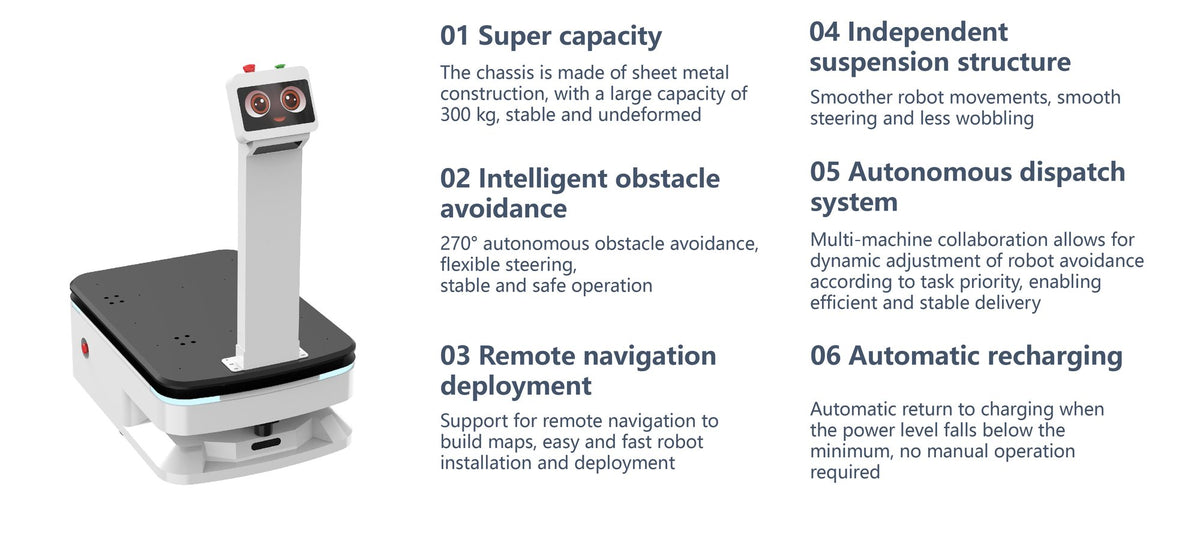

Key Features

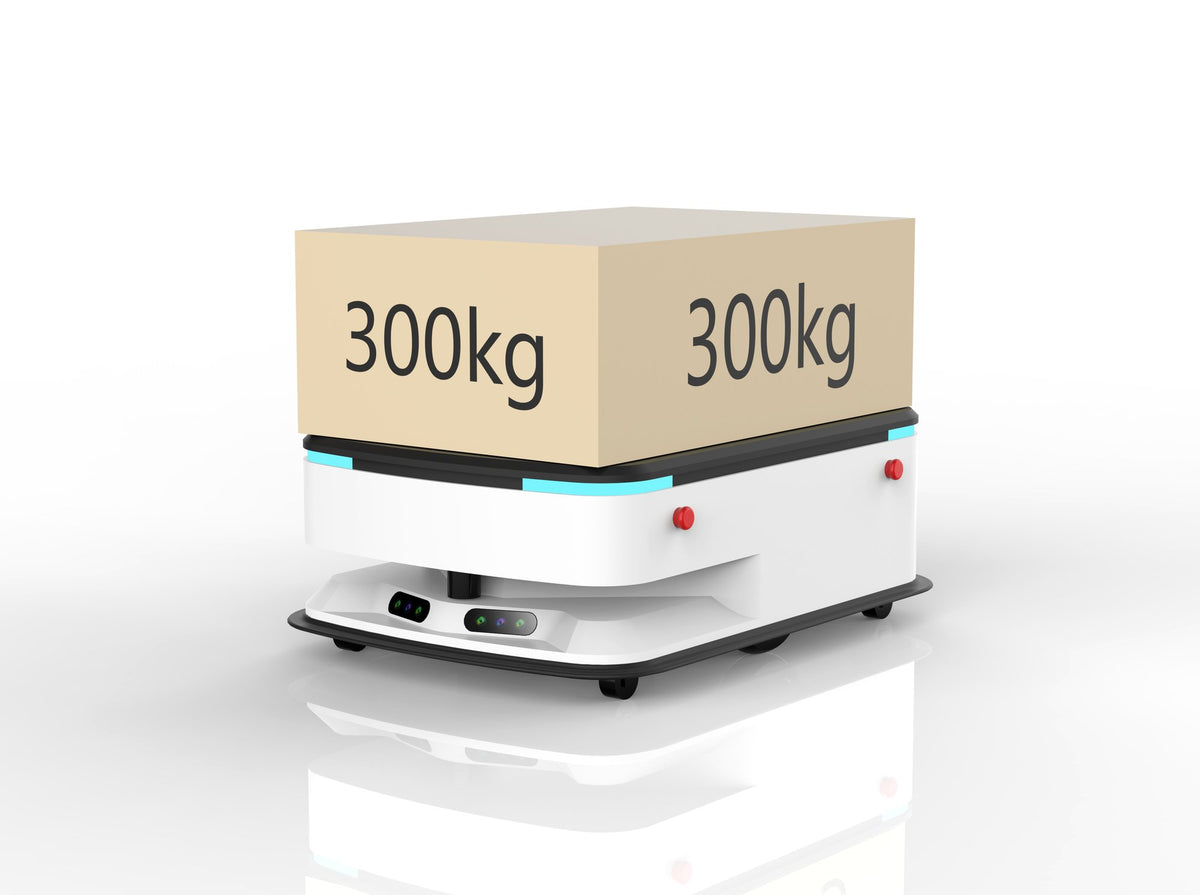

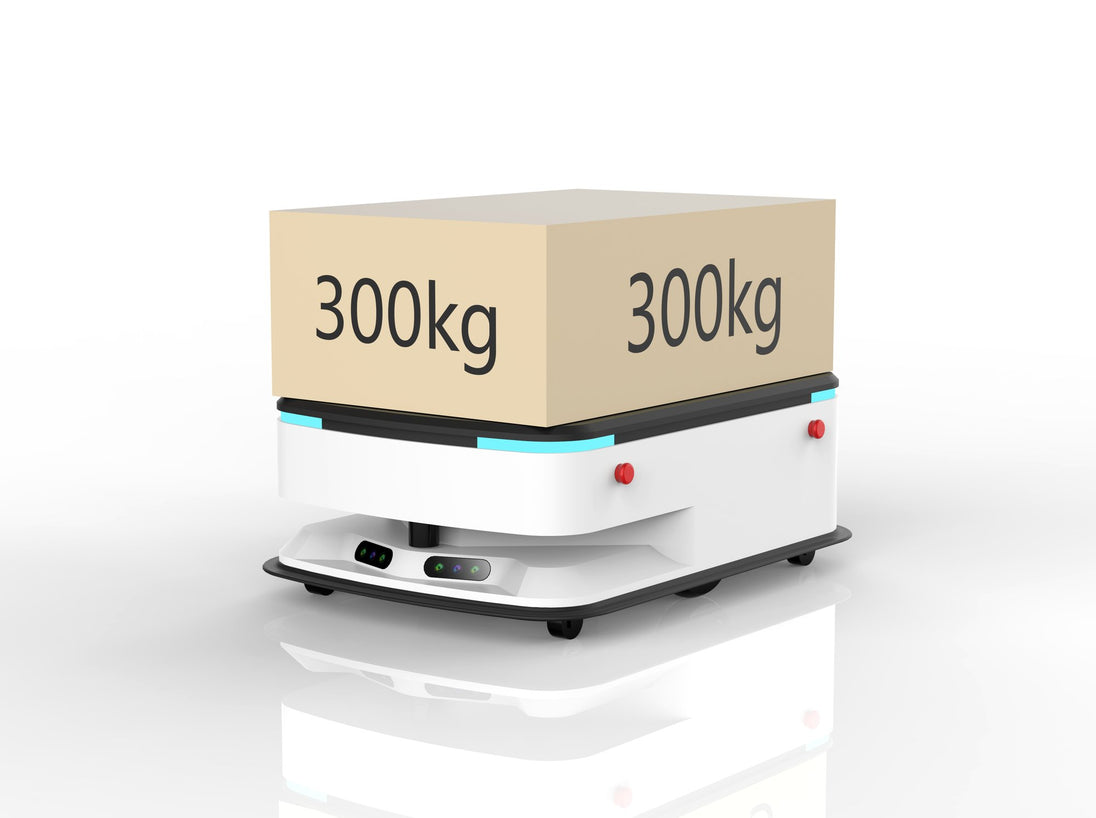

  • Sheet-metal chassis with 300 kg super capacity, stable and undeformed
  • 270° autonomous obstacle avoidance with flexible steering
  • Independent suspension structure on both drive wheels for smoother movement, small steering action and no tipping
  • Remote navigation deployment for easy, fast robot installation

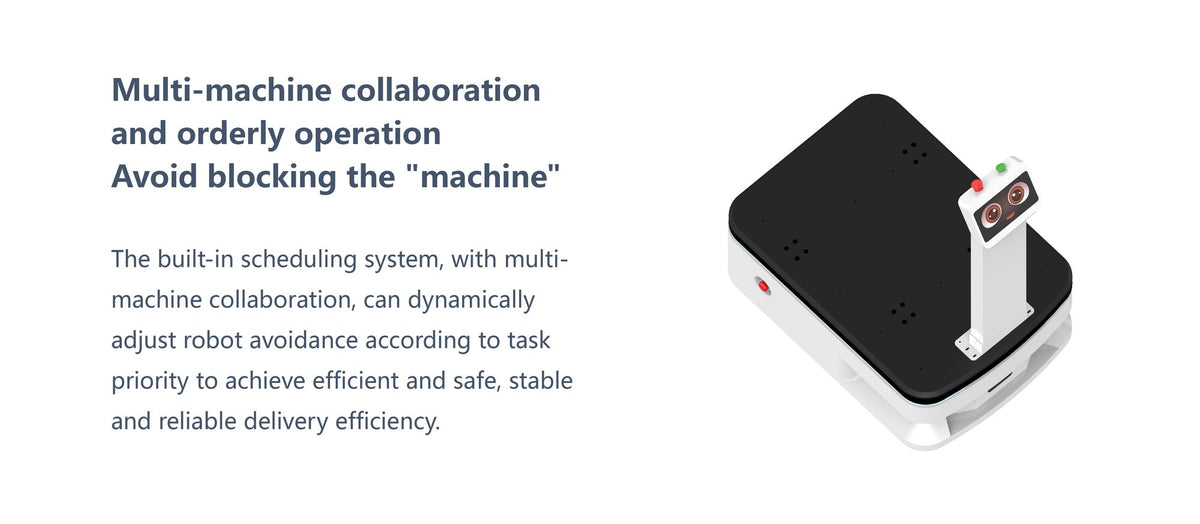

  • Autonomous dispatch system with multi-machine collaboration to avoid blocking and keep delivery efficient

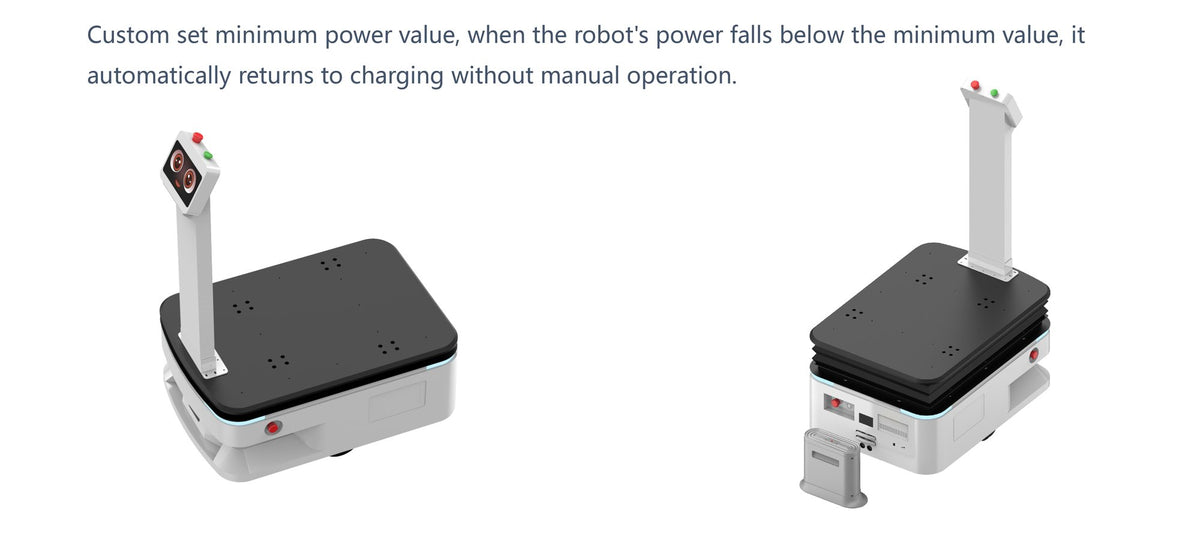

  • Automatic recharging when power falls below a custom minimum, no manual operation required
  • Deployment without posting navigation codes, with highly accurate LIDAR + 3D camera positioning

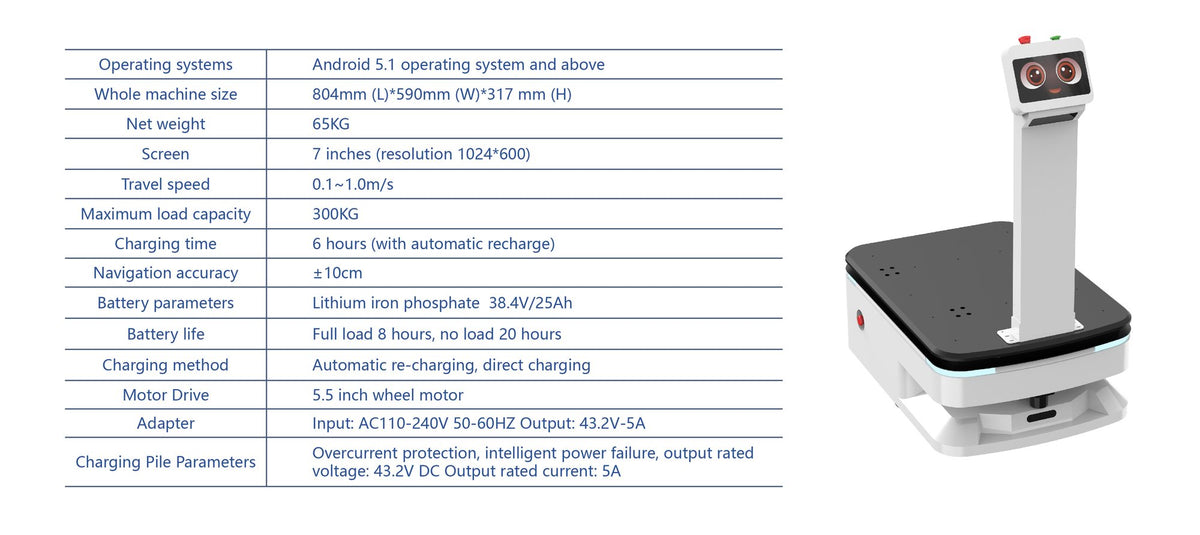

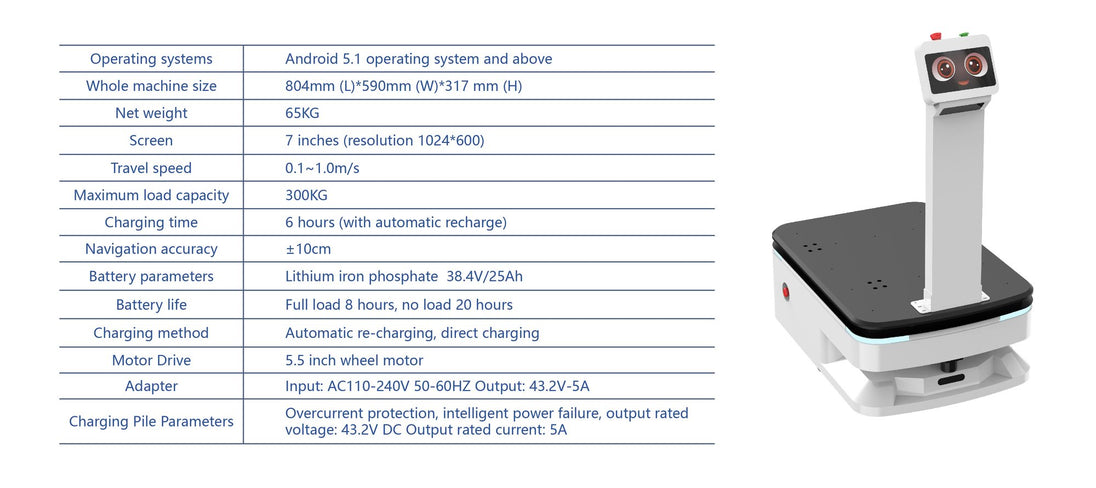

Specifications

Operating system Android 5.1 or above
Whole machine size 804 × 590 × 317 mm (L×W×H)
Net weight 65 kg
Screen 7-inch, 1024×600
Travel speed 0.1–1.0 m/s
Maximum load capacity 300 kg
Charging time 6 hours (automatic recharge)
Navigation accuracy ±10 cm
Battery Lithium iron phosphate, 38.4V/25Ah
Battery life Full load 8 hours, no load 20 hours
Motor drive 5.5-inch wheel motor
Adapter Input AC110–240V 50–60Hz, Output 43.2V/5A

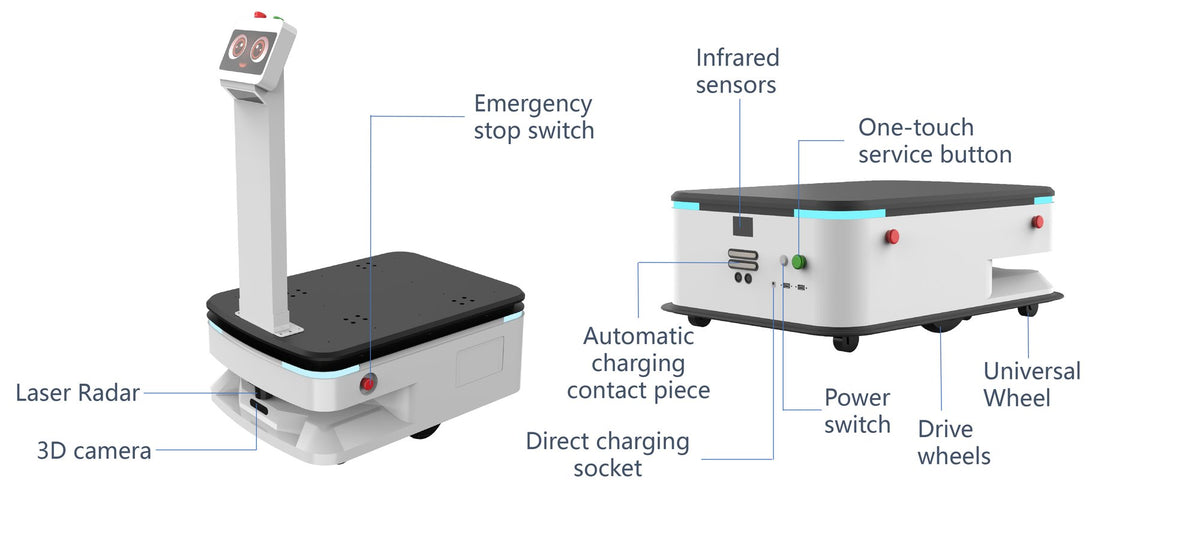

Sensors Single-line laser radar (25 m, 905 nm, 270°) + 3D camera (63° vertical / 79° horizontal)
