Dake Corporation

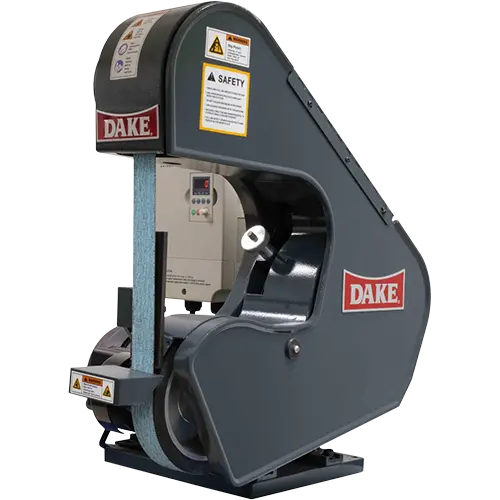

Dake Model BG-60V Benchtop Belt Sander

SKU 961006

Regular price: $3,250.00

Regular price: $3,250.00

Quantity

Estimated shipping time

Order cutoff: 5:00 PM Eastern Time
Handling time: 1 to 3 business days
Transit time: 3 to 7 business days
Total delivery time: 4 to 10 business days

These are estimates, not guarantees. We do not warehouse equipment ourselves — your order is placed with the manufacturer once you buy, and most items are released for shipment within 1 to 3 business days. If your item is on back-order, or the manufacturer confirms a longer lead time, we will contact you promptly and you may cancel for a full refund with no fee.

Free shipping is curbside or dock-to-dock delivery to a commercial address in the 48 contiguous states and DC, or parcel delivery for smaller items. We are not currently set up to ship to Alaska, Hawaii, Puerto Rico or other US territories. Liftgate, residential, limited-access and inside delivery, and rigging, are not included — typically $150 to several hundred dollars, quoted in writing and charged only with your prior approval.

Freight deliveries require a scheduled appointment and someone must be present to sign. Please confirm voltage and phase with us before ordering. Need a firm date? Call (720) 575-1376 or email support@techforgedirect.com with the model number.

What is your Return Policy?

30 days to request a return from the date you receive your order. Email support@techforgedirect.com with your order number and reason. We will assess your request and, once approved, send you an RMA number and detailed instructions. Do not ship anything back before you have an RMA number.

1. Return shipping costs

You as the customer are responsible for paying the return shipping costs of the items in your order. On freight-shipped machinery this can be substantial — we quote the exact amount in writing before you commit, so you decide with the full figure in front of you.

2. Preparing your return

Parcel-sized items: we email you a return label, and its cost is deducted from your refund. Freight items are collected under a bill of lading we arrange. The item must be unopened, unused and in delivery condition, including all original packaging and accessories, in a condition such that it can be re-sold as new. Machinery must not have been wired in or powered on. Photographic evidence is required.

3. Restocking fee

Change-of-mind returns carry a 25% restocking fee, deducted from your refund. On a $10,000 machine that is $2,500.

4. Damaged or incorrect products

Note it immediately when signing for delivery and send photographs to support@techforgedirect.com the day of delivery. We will ensure you get the correct product you ordered, undamaged, as soon as possible, at no cost to you — no return shipping charge and no restocking fee.

5. Refunds

Processed within 7 business days of your returned item being received and inspected.

6. Cancellations

Cancel any time before your order ships for a full refund with no fee.

See our full Return and Refund Policy and Cancellation Policy.

Product Description

This 3-wheel belt grinder runs on 110 volts single-phase power and will work just about anywhere. This grinder accepts a 1.5″ x 60″ grinder belt with a 7″ diameter contact wheel. Inverter-driven variable speeds range from 800 to 8000 fpm so that you can choose the correct speed for any application. Horizontal and vertical throat depth suits those larger or uncommon shaped parts. Recommended for smoothing over burrs on metal, chamfering edges for welding, and cleaning up castings, among other uses.

Features

3 Wheel grinder works on 110 volts single-power
Accepts a 1.5″ x 60″ grinder belt
7″ diameter contact wheel
Inverter-driven variable speeds range from 800 to 8000 fpm
Horizontal and vertical throat depth
Fully sealed ball bearings
Belt tension adjuster takes the hassle out of tension changes and belt replacement
Solid cast aluminum structure ensures rigidity and vibration reduction

Standard Equipment

60 Grit Grinding Belt
Variable Speed Frequency Drive

Model Options

Replacement Belt 40 Grit
Replacement Belt 60 Grit

Specifications

Belt Size	1-1/2″ x 60″
Horsepower	1.5 HP
Electrics	110V, 1 Phase
Contact Wheel Size	7″ diameter
Belt Speed	800 – 8,000 ft/min
Shipping Dimensions	46″ x 23″ x 23″
Weight	75 lbs

Manuals & Downloads

Owner's Manual

Warning: This product contains Nickel, a chemical known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Compare Belt Grinders

Imperial Metric

Model Number	FG-75	SG-75	BG-60V
Part Number	961003	961005	961006
Belt Size	3″ x 79″	3″ x 79″	1.5″ x 60″
Horsepower	4HP	1.5HP	1.5 HP
Electrics	220V, 3 Phase	220V 60hz 1HP	110V 60HZ 1 PH
Contact Wheel Size	3″ x 8″	4″	7″ diameter
Belt Speed	6000 FPM	5018 FPM	800–8000 FPM
Shipping Dimensions	3″ x 21″	25″ x 13″ x 42″	46″ x 23″ x 23″
Weight	139 lbs	120 lbs	75 lbs

Model Number	FG-75	SG-75	BG-60V
Part Number	961003	961005	961006
Belt Size	76.2 mm x 2006.6 mm	76 mm x 2006.6 mm	38 mm x 1524 mm
Horsepower	2.98 kW	1.11 kW	1.11855 kW
Electrics	220V, 3 Phase	220V 60Hz 1HP	110V 60Hz 1 PH
Contact Wheel Size	76.2 mm x 203.2 mm	101.6 mm	117.8 mm diameter
Belt Speed	1829 MPM	1529 MPM	244–2438 MPM
Shipping Dimensions	76.2 mm x 558.8 mm	635 mm x 330 mm x 1066.8 mm	1168 mm x 584 mm x 584 mm
Weight	63.0493 kg	54.43 kg	34 kg

†† Discontinued
