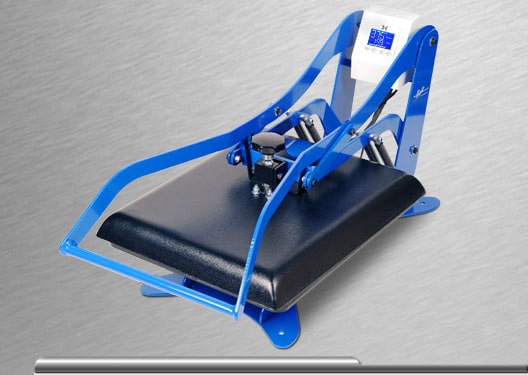

DK20 Digital Knight 16x20 Clamshell

Product Description

DK20 Digital Knight 16x20 Clamshell

Our largest clamshell, the 16x20 DK20 opens for full access to the lower bottom table. It is important to note that the back of the heat platen raises above and away from the bottom table, providing better access than other clamshell presses. The frame support allows operators to slide shirts over the table with complete drape space around and underneath the loading area. Interchangeable bottom tables for smaller pressing areas are available. This press is ideal for environments with space limitations, and for users who need more portability and mobility than the over-weight swingaway presses.

The DK20 can be easily upgraded to an automatic release press with the "Pop-Up" upgrade. This allows for faster semi-automatic garment production at a very reasonable price. Add to this the twin station upgrade as well, and you have the ultimate clamshell dual station light production machine.

Video

Features

  • All-Threadâ„¢ table loading design
  • Fully digital temperature control 32°-600°F range
  • Automatic digital timer & dual pre-press timer
  • Digital Pressure Bar Graph
  • 70 Programmable presets
  • Solid steel welded framework
  • Instantly interchangeable & rotatable tables
  • SuperCoil-Microwindingâ„¢ heater technology
  • Wide opening at back - no hand contact!
  • Temperature readout accuracy +-2°F - can show °C or °F
  • User selectable end-of-cycle alarms
  • Records number of pressing cycles done
  • Teflon-coated 3/4" thick heat platen

Warranty

  • FREE LIFETIME Tech Support!
  • Lifetime warranty on heat platen
  • 5-year warranty on frame
  • 3-year warranty on controller
  • 1 year warranty on parts

Specifications

  • Weight: 103 Lbs
  • Electrical: 1800W / 15A / 110V
  • Shipping Dims: 36"L x 17"W x 16"H
  • Counter Footprint: 26"D x 14"W
  • (add $35 for 220V international)

Download DK General Clamshell PDF Brochure

Download DK20 PDF Owners Manual
