DK16A Digital Knight 14x16 Auto Clamshell

Product Description

DK16A Digital Knight 14x16 AUTO Clamshell

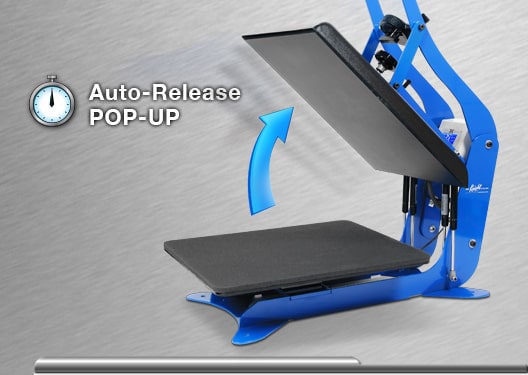

The DK16A is the AUTO-RELEASE "Pop-Up" version of our mid-sized manual clamshell. This amazing high-tech feature makes your Digital Knight clamshell act like a semi-automatic, air operated press, without the compressor! Simply close the press as you normally do, and at the end of the digital timing cycle the press releases automatically.

The Auto-Release upgrade also features the "HOVER" feature. This means when the handle is lowered without fully clamping the machine, the press will hover over the work, usually needed for curing purposes. At the end of the time cycle the press releases automatically as usual.

The DK16A 14x16 clamshell press opens for full access to the lower bottom table. It is important to note that the back of the heat platen raises above and away the bottom table, providing better access than other clamshell presses. The frame support allows operators to slide shirts over the table with complete drape space around and underneath the loading area. Interchangeable bottom tables for smaller pressing areas are available. This press is ideal for environments with space limitations, and for users who need more portability and mobility than the over-weight swingaway presses.

Video

Features

  • All-Threadâ„¢ table loading design
  • Fully digital temperature control 32°-600°F range
  • Automatic digital timer & dual pre-press timer
  • Digital Pressure Bar Graph
  • 70 Programmable presets
  • Solid steel welded framework
  • Instantly interchangeable & rotatable tables
  • SuperCoil-Microwindingâ„¢ heater technology
  • Wide opening at back - no hand contact!
  • Temperature readout accuracy +-2°F - can show °C or °F
  • User selectable end-of-cycle alarms
  • Records number of pressing cycles done
  • Teflon-coated 3/4" thick heat platen

Warranty

  • FREE LIFETIME Tech Support!
  • Lifetime warranty on heat platen
  • 5-year warranty on frame
  • 3-year warranty on controller
  • 1 year warranty on parts

Specifications

  • Weight: 83 Lbs
  • Electrical: 1500W / 12A / 110V
  • Shipping Dims: 32"L x 17"W x 16"H
  • Counter Footprint: 26"D x 14"W
  • (add $35 for 220V international)

Download DK General Clamshell PDF Brochure

Download DK16 PDF Owners Manual
