Full Spectrum Laser

FSL Muse Core Desktop CO2 Laser Cutting and Engraving Machine

SKU MUSE-40
$2,999.00
$2,999.00

NOTE: TechForge Direct is an authorized dealer for Full Spectrum Laser within the United States. This product is sold new, in original manufacturer packaging, with applicable manufacturer warranty, and is available for sale within the United States only.

CO2 Gantry
BROWSER BASED SOFTWARE - Windows, Mac and Linux compatible; REMOVABLE FLOOR - enables users to engrave objects larger than the machine itself; ROTARY ATTACHMENT - (optional) allows for cylindrical objects such as cups to be engraved.

Estimated shipping time

Order cutoff: 5:00 PM Eastern Time
Handling time: 1 to 3 business days
Transit time: 3 to 7 business days
Total delivery time: 4 to 10 business days

These are estimates, not guarantees. We do not hold stock — your equipment is ordered from the manufacturer once you order. If your item is on back-order, or the manufacturer confirms a longer lead time, we will contact you promptly and you may cancel for a full refund with no fee.

Free shipping is curbside or dock-to-dock delivery to a commercial address, or parcel delivery for smaller items. Liftgate, residential, limited-access and inside delivery, and rigging, are not included — typically $150 to several hundred dollars, quoted in writing and charged only with your prior approval.

Freight deliveries require a scheduled appointment and someone must be present to sign. Need a firm date before you buy? Call (720) 575-1376 or email support@techforgedirect.com with the model number.

What is your Return Policy?

30 days to request a return from the date you receive your order. Email support@techforgedirect.com with your order number and reason. We will assess your request and, once approved, send you an RMA number and detailed instructions. Do not ship anything back before you have an RMA number.

1. Return shipping costs

You as the customer are responsible for paying the return shipping costs of the items in your order. On freight-shipped equipment this can be substantial — we quote the exact amount in writing before you commit, so you decide with the full figure in front of you.

2. Preparing your return

Download and print the return shipping label provided in our email and affix the label to the outside of the package. The item must be unopened, unused and in delivery condition, including all original packaging and accessories, in a condition such that it can be re-sold as new. Machines must not have been powered on or put into service. Photographic evidence is required.

3. Restocking fee

Change-of-mind returns carry a 25% restocking fee, deducted from your refund. On an $8,000 machine that is $2,000.

4. Damaged or incorrect products

Note it immediately when signing for delivery and send photographs to support@techforgedirect.com the day of delivery. We will ensure you get the correct product you ordered, undamaged, as soon as possible, at no cost to you — no return shipping charge and no restocking fee.

5. Refunds

Processed within 7 days of your returned item being received and inspected.

6. Cancellations

Cancel any time before your order ships for a full refund with no fee.

See our full Return and Refund Policy and Cancellation Policy.

Weight: 150.0 lbs
Dimensions: 38.0" × 27.0" × 15.0"

Authorized Full Spectrum Laser dealer
US-based expert support
Financing available
Talk to us: (720) 575-1376

Product Description

CO2 Laser Applications

CO2 lasers operate at 10.6 μm wavelength which is strongly absorbed by organic materials. This makes them the default choice for cutting and engraving wood, acrylic, leather, fabric, paper, rubber, foam, and stone. Engraving quality on wood is outstanding and CO2 is the only practical way to cleanly cut clear acrylic. CO2 is also excellent at removing paint from tumblers and coated surfaces — the beam ablates the coating while leaving the metal substrate untouched.

Best Fit

  • Signage, awards, gifts, and personalization shops
  • Prototyping and production cutting of sheet materials
  • Tumbler and drinkware customization

Common Materials

  • Wood, plywood, MDF, bamboo
  • Acrylic, delrin, mylar, and most plastics (not PVC)
  • Leather, fabric, felt, paper, cardstock, foam, rubber

Typical Outputs

  • Cut parts, engraved wood signs, and acrylic displays
  • Leather goods, fabric patterns, and paper crafts
  • Tumbler paint removal, glass engraving, stone etching

Why Teams Choose CO2

  • Cuts wood, acrylic, leather, fabric, paper, foam, and rubber
  • Excellent engraving quality on wood — photo-realistic detail
  • Removes paint and coatings from tumblers without damaging metal underneath
  • Most applications on non-metals; for metals use UV or fiber

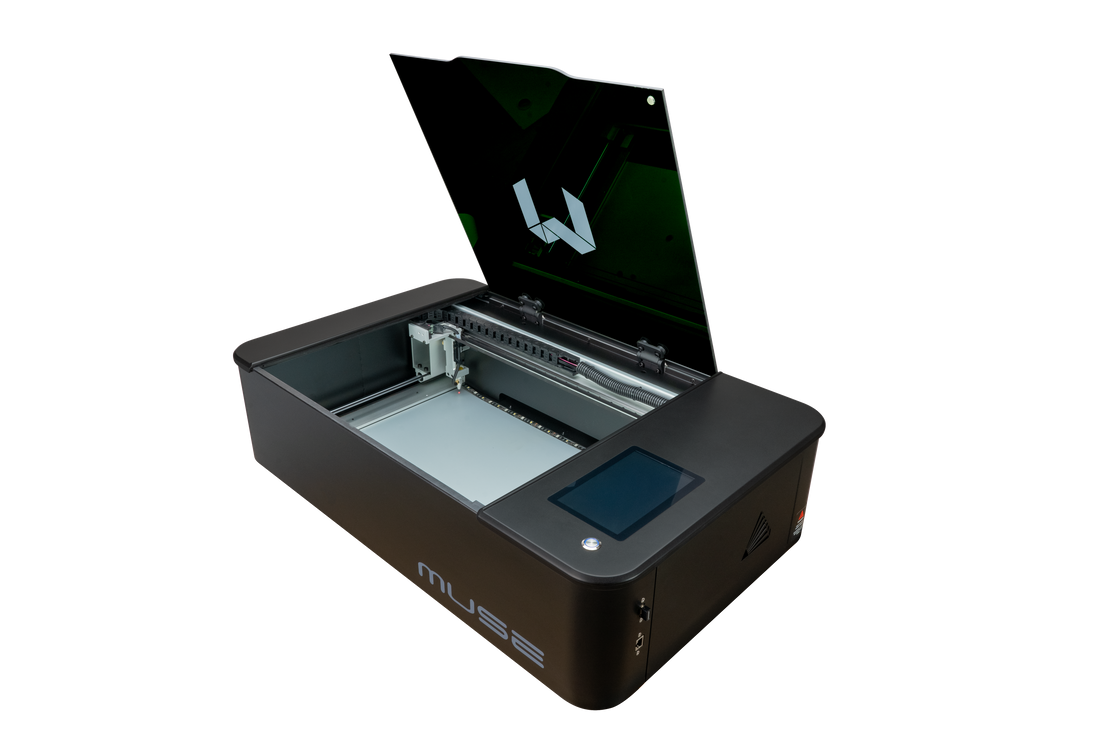

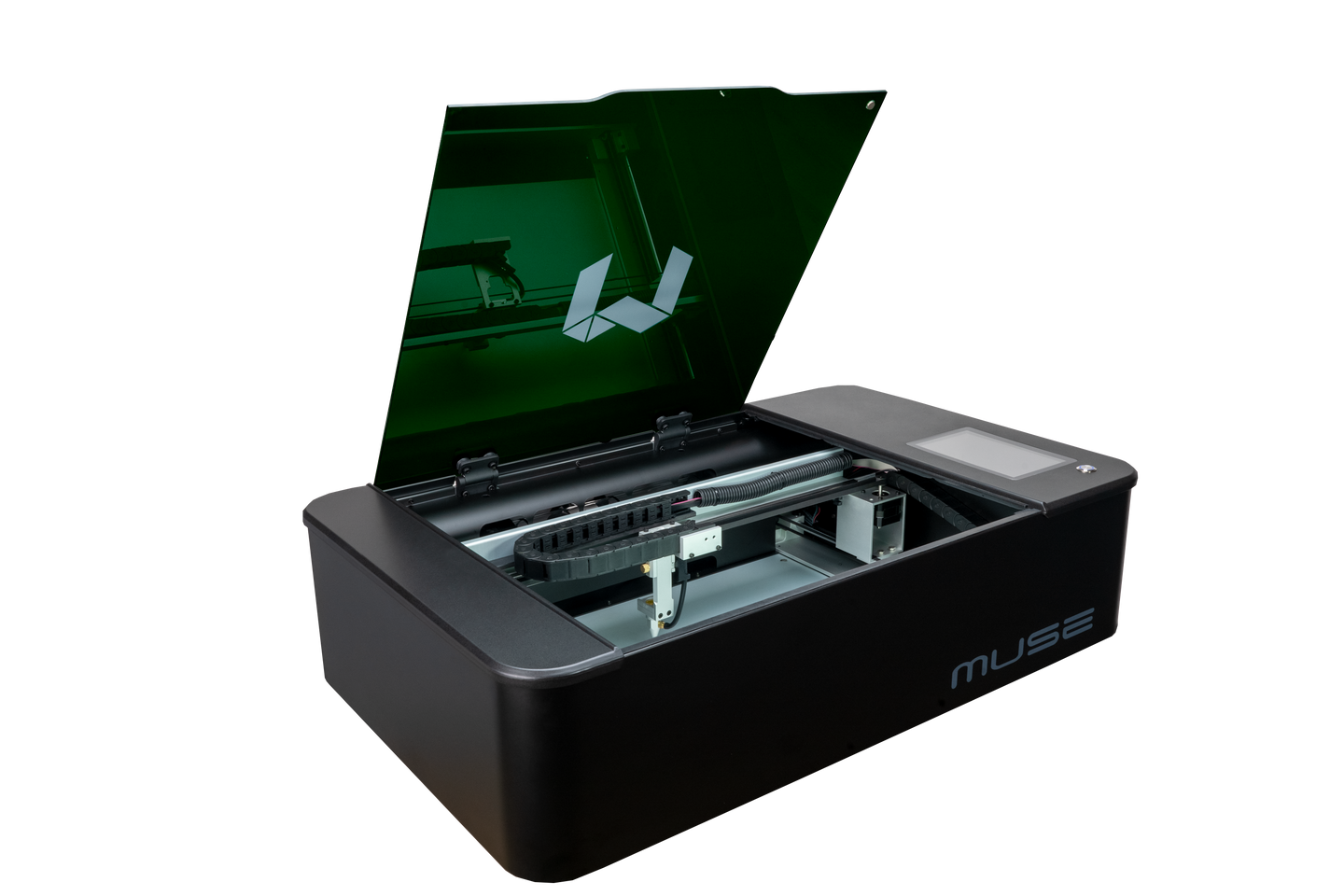

FSL Muse Core Desktop CO2 Laser Cutting and Engraving Machine

With a removable floor, industry leading RetinaEngrave software, and sturdy metal construction, the Muse Core laser cutting and engraving machine will allow you to take your creativity to the next level.

  • BROWSER BASED SOFTWARE - Windows, Mac and Linux compatible.
  • REMOVABLE FLOOR - enables users to engrave objects larger than the machine itself.
  • ROTARY ATTACHMENT - (optional) allows for cylindrical objects such as cups to be engraved.
  • 7" LCD TOUCH SCREEN - allows users to control major functions right from the machine.
  • TECHNICAL SUPPORT via phone and email.
  • 1 YEAR WARRANTY

Shipping Weight: 150.0 lbs
Shipping Dimensions: 38.0" x 27.0" x 15.0"

Tech Specs

Working Area

Engraving Area 20" x 12" (508mm x 305mm)
Z-Height 2.5"

Weight & Dimensions

Machine Dimensions Width: 32.3" x Depth: 20.3" x Height: 8.5" (820mm x 515mm x 215mm)
Weight 54 lbs (24.5 kg)

Laser

Laser Classification Class 3
Laser Type Sealed CO2 Laser Tube
Laser Power 40W
Focus Lens Included 2"
Beam Combiner Integrated Red Guiding Laser and Beam Combiner
Resolution Up to 1000 dpi

Power

Power Supply AC 110V native
Gross Power < 1000W

System

Operation Modes Precision Raster, Vector or Combined Modes
Motion Control High-speed, High-precision stepper motors
Operating Temperature 0C - 45C

Materials

Material Cuts Engraves
Acrylic ✓ ✓
Coated Metals × ✓
Fabric ✓ ✓
Glass × ✓
Leather ✓ ✓
Paper ✓ ✓
Rubber ✓ ✓
Stone × ✓
Wood ✓ ✓

Software

Software RetinaEngrave v3.0
Compatibility PC, Mac & Linux
Browser Compatibility Google Chrome (recommended), Safari, Firefox, Edge
File Import Options JPG, PNG, BMP, TIFF, SVG, DXF, DWG
Minimum Screen Resolution 1024 x 768 Pixels
Wireless Compatibility 802.11n

What's Included

  • Honeycomb Table

NOT INCLUDED: Air Compressor, Water Pump, and Exhaust fan

Inspire. Design. Create.

Muse is the best desktop laser on the market and keeps getting better with LCD touchscreen functions, the powerful, yet easy-to-use, self-hosted browser based RetinaEngrave v3.0 laser control and design software, optional 3D camera features and autofocus (Muse 3D only). From creating original art to starting your own small business, Muse offers the best, most innovative technology in the desktop laser market.

Key Features

  • Patented Removable floor to engrave on material larger than the internal work area
  • RetinaEngrave v3.0 self-hosted browser-based laser control and design software
  • Intel RealSense™ 3D Camera option 3D scans every pixel for precision XY and focus position (Muse 3D only)
  • Motorized Real-time Autofocus (Muse 3D only)
  • Sleek onboard LCD touchscreen control
  • Cuts up to 1/4 inch material
  • Engraves up to 1000 dpi resolution
  • Optional accessories like the rotary and riser engrave on rounded or larger objects

The Best Laser Control Software on the Market!

The powerful, easy-to-use RetinaEngrave v3.0 software lives right on your laser and is accessed using your favorite web browser and operating system. Simply input the IP address of your machine into your browser address bar and you are ready to go. Best part? There's nothing to download, ever.

Welcome to the future of laser control & design software!

Muse Desktop Laser at a Glance

Standard Laser Tube 40W CO2
Laser Tube Upgrades 45W CO2
X-Y Working Area 20" x 12"
Working Z-Height 2.5"
Removable Floor Yes
Rotary Available Yes
Power Requirements 120V AC

The Perfect Accessories

Upgrade your cooling system for peak performance of the laser.

Engrave curved objects with a rotary attachment. Work with tumblers, glassware and more.

Increase your laser tube power to accelerate cutting speed and marking ability.

...plus fume extractors, specialty focus lenses and more!

Applications

Three Muse CO2 Models to Meet your Needs
