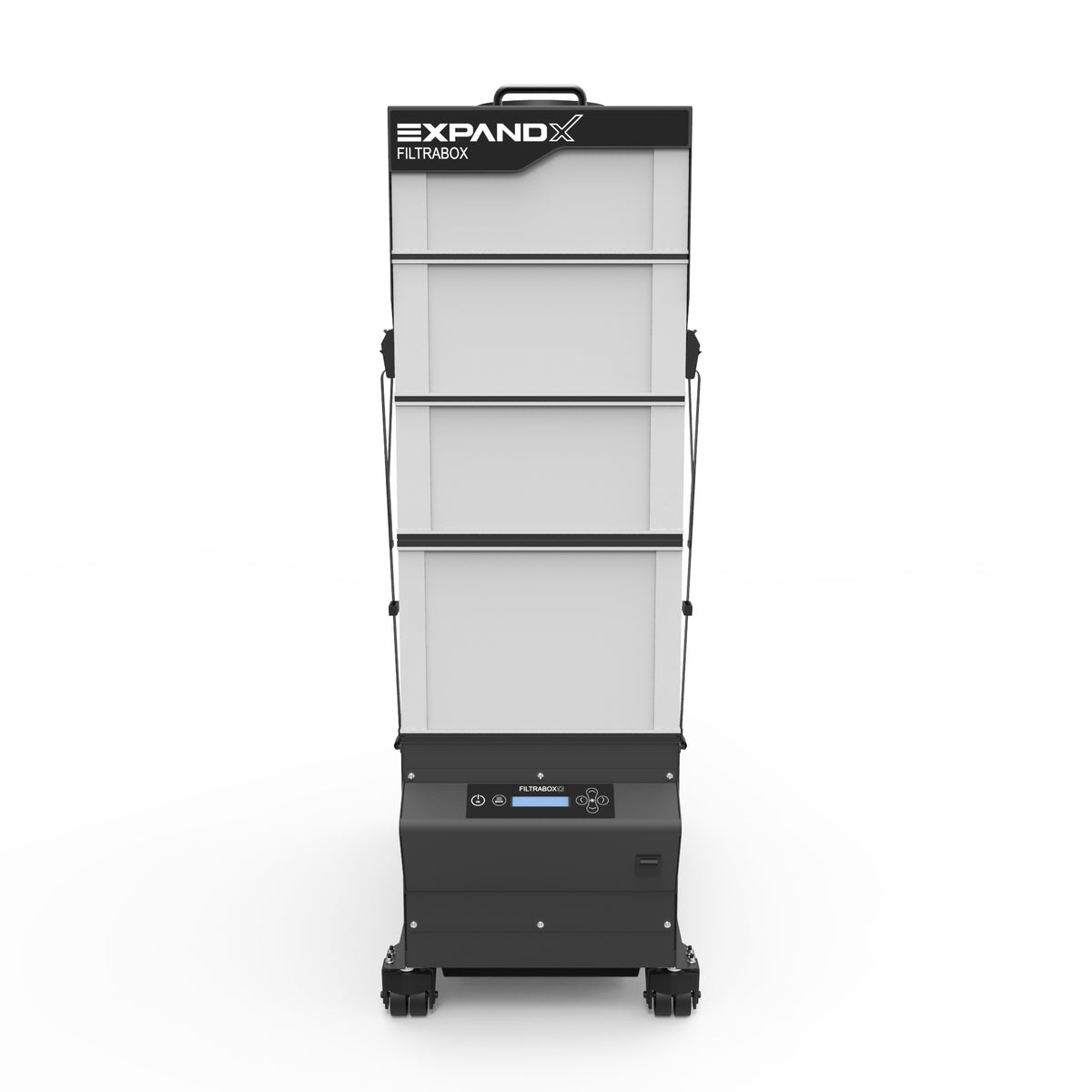

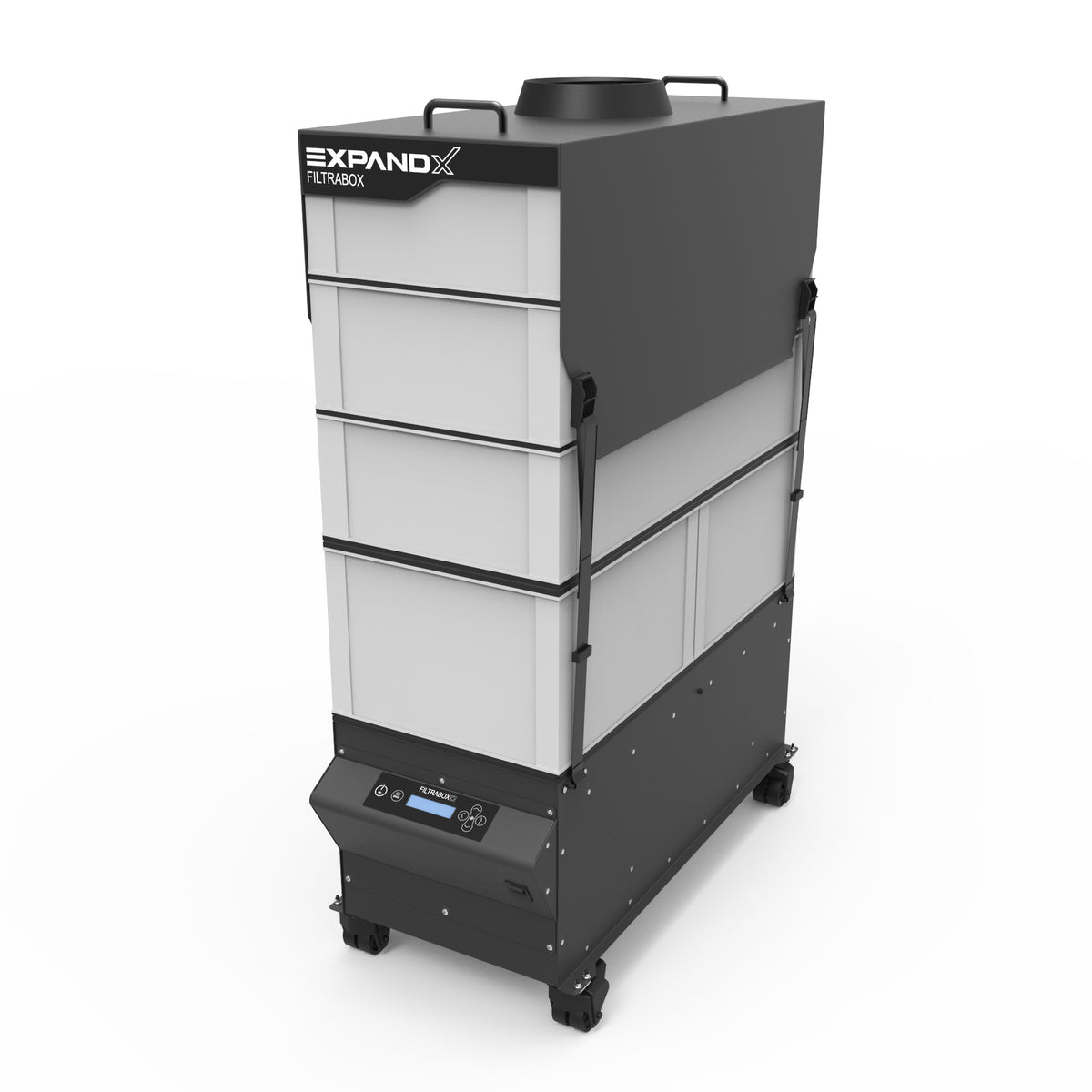

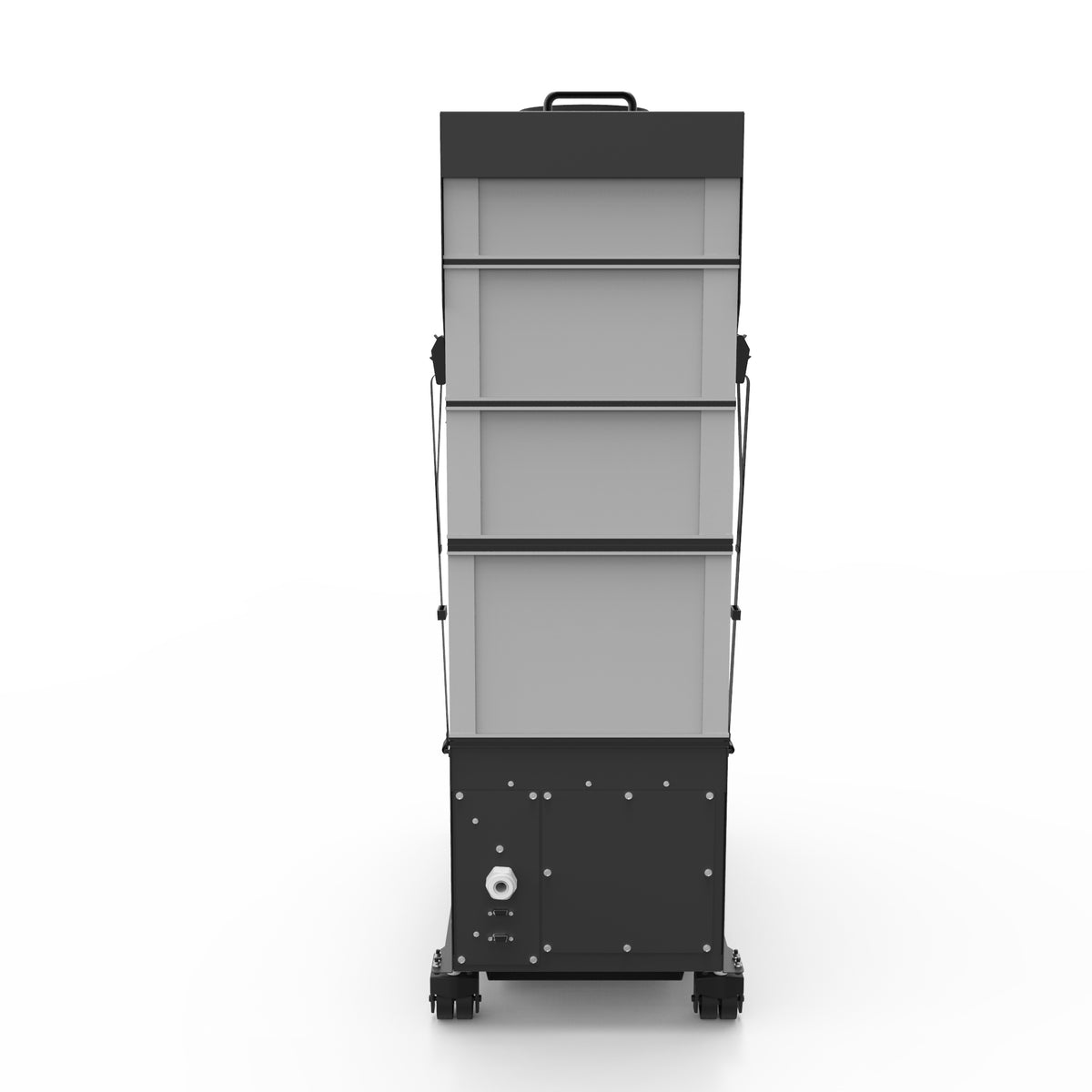

Filtrabox ExpandX-3 Fume Extractor

ExpandX-3 Fume Extractor

Portable Laser Fume Extractor w/ 3-blowers and high capacity 4 stage HEPA filtration for maximum performance on large industrial laser systems. Extracts, filters and recirculates clean air into the workspace.

Features

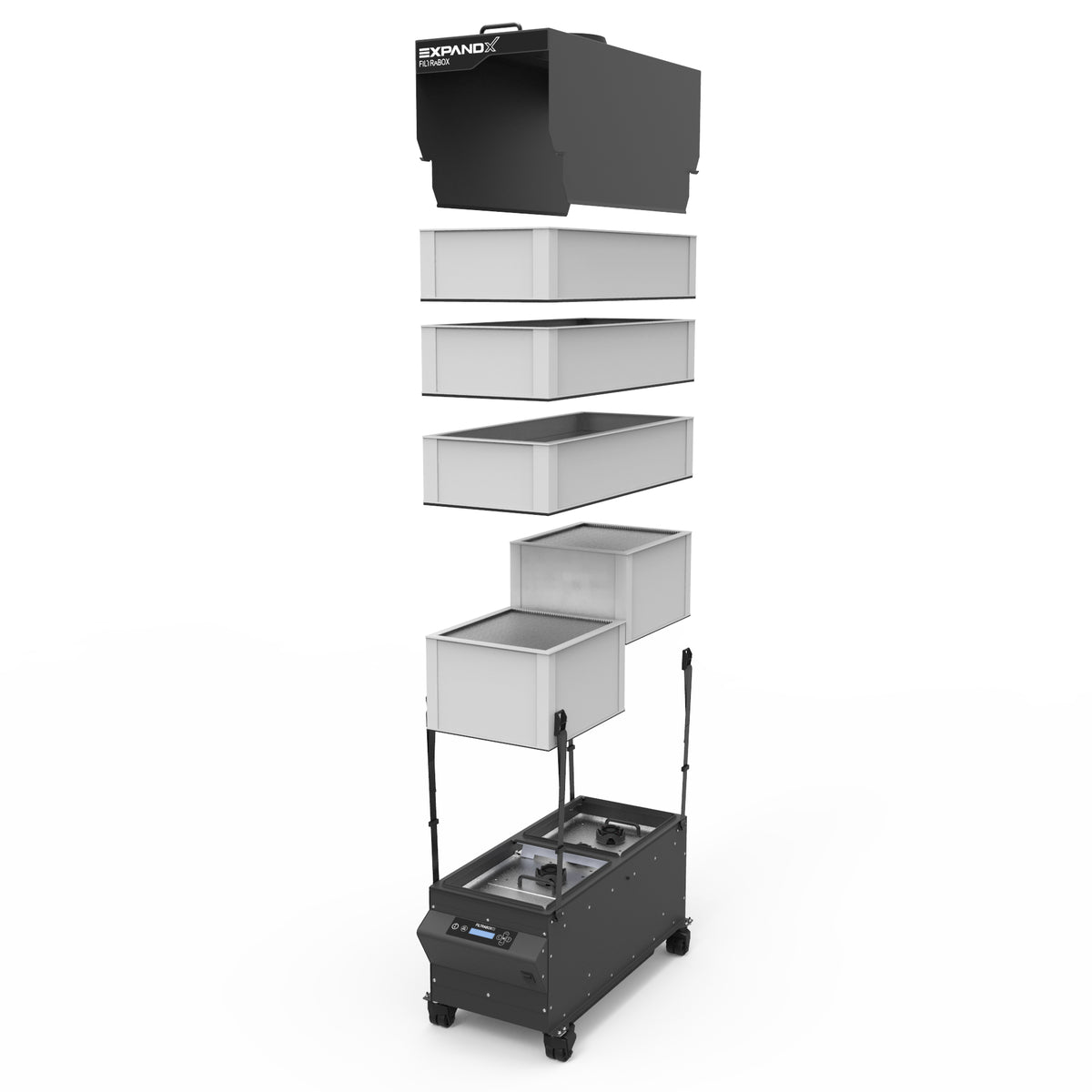

More Capacity and Efficiency with True 3-Stage Filtration: Separated Filters

Each individual filter has a specific function within Filtrabox's 3 stages of filtration:

F9 Pre-filter: The pre-filter removes the majority of the submicronic respirable dust, protecting the critical downstream HEPA filter from strain and premature clogging. The filter media is encased in a strong aluminum cartridge to resist contamination bypass. The high surface area mini-pleat filter media ensures high capacity and efficiency for demanding applications.

HEPA filter: The HEPA filter is tested at 99.999% @ 0.3 microns. This means that it removes 99.999% of the most aerodynamically penetrating particles, known to be 0.3 microns, while smaller and larger particles are even more effectively captured, resulting in extremely clean air; free of respirable dust. The filter media is encased in a rigid aluminum cartridge to resist contamination bypass. The high surface area mini-pleat filter media ensures high capacity and efficiency for demanding applications.

Gas Filter: The gas filter is filled with a blend of high-grade activated carbon and potassium permanganate, which removes the broadest spectrum of laser-generated VOC gases at the molecular level. 110 lbs of the adsorption media ensure high capacity and efficiency for demanding applications.

Why Filtrabox uses individually separated filters HEPA and gas filters vs. combined HEPA/Carbon filters:

Different materials produce different proportions of dust vs. VOC gases. For example, lasering acrylic produces 90% VOC gases and 10% dust. Conversely, lasering wood produces 10% gases and 90% dust. With individually separated filters, each filter can be replaced when it actually is spent which varies with each material lasered. In the case of lasering acrylic, the gas filter will need replacement sooner than the dust filter because of the high gas to dust ratio. This is not a problem when using separate filters. Each individual filter can be replaced as needed, which saves money and reduces landfills. In contrast, in a combined filter where the HEPA and Gas filters are inseparable, the barely used HEPA filter portion may have to be sacrificed because the gas portion is spent (or vice-versa). This is wasteful and less economic.

Why are Rigid Filter Cartridges so important?

Filtrabox systems use high-pressure vacuum blowers to suction the fumes out from the laser and into high-efficiency filters. As the filters load up with dust, the negative pressure within Filtrabox increases. The sheet-metal cabinet and seals are designed to resist deformation and air leaks under extreme pressure. Therefore, the filters must also be able to resist deformation to prevent dust and VOC leakage. All Filtrabox filter cartridges are built tough, using a thick aluminum box structure to resist flex so that the rubber seals can maintain contact with the sealing surfaces. Cardboard cased filters flex and crumple under a load of typical fume extractor pressures, leading to leakage of contaminants.

Easier to Use: Intelligent Flow Regulator

As filters become loaded with contaminants over time, they become more restrictive to airflow. The intelligent flow regulator proportionally increases power to the blowers to automatically overcome the restrictions and maintain consistent fume extraction. Just enter your flow setpoint and Filtrabox does the rest. Filtrabox will also let you know when to change filters.

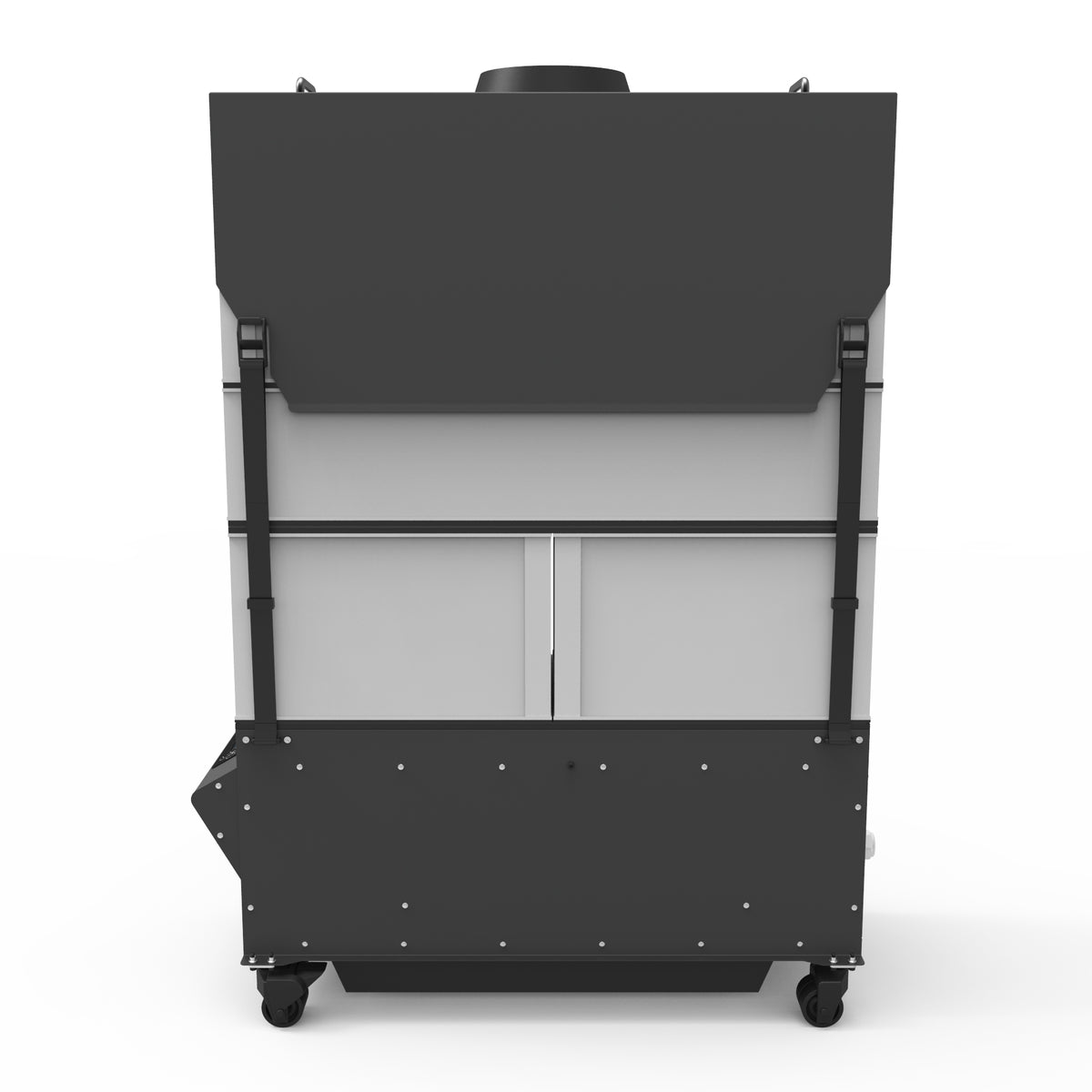

Space Saving: Slim-line Design

Others try to achieve space savings by offering smaller machines. But this results in less filter capacity, more noise, and less airflow.

The Slim-line design shrinks the width of the extractor and relocates critical performance features into the plentiful depth dimension, allowing for maximum airflow, filter capacity, and noise reduction in a space-saving package - no compromises.

Other fume extractors have their air inlets and air hoses on the side or back of the machine, which consumes lateral space. Filtrabox's top-mounted air hose eliminates wasted lateral space by making use of available vertical space.

Ask us for 3D models of this fume extractor to make your interior design/workflow layout a breeze.

Robust, Simple User Interface

Dust, splash proof, and impact resistant, the new membrane touch pad interface offers both improved protection against industrial contaminants and simplified, intuitive control. A fume extractor should simply keep the air clean and work when you want it to work.

The interface is canted to an optimal angle for better viewing clarity and easy touch actuation.

Fast and Friendly Tech Support: Modularity for Serviceability

Filtrabox fume extractors use many complex electronic components and sensors to monitor and control their performance. However, Filtrabox has simplified these systems by consolidating the components into two simple and removable modules:

Electronics Module: This module includes all the interface, control and power systems.

Blower Module: This module includes the blower and flow sensor.

In the event of a field issue, Filtrabox tech support needs only to identify which of the two modules is at fault, and the replacement module is dispatched to you immediately. The modules are simple to replace with only a few plug-and-play wire harnesses – no tech experience required.

Extreme Air Power: Digital Blower w/ Hyper Bearings

All Filtrabox systems use digital blowers to create powerful, reliable suction. Traditional brushed blowers inevitably wear out, lose suction and need replacement. Filtrabox's combination of digital contactless rotors and contaminant-resistant hyper bearings allows for extreme rotational speeds and maintenance-free operation for years; more suction power – no maintenance.

Specifications

Technical

Electrical

Included Filters

View PDF Brochure
