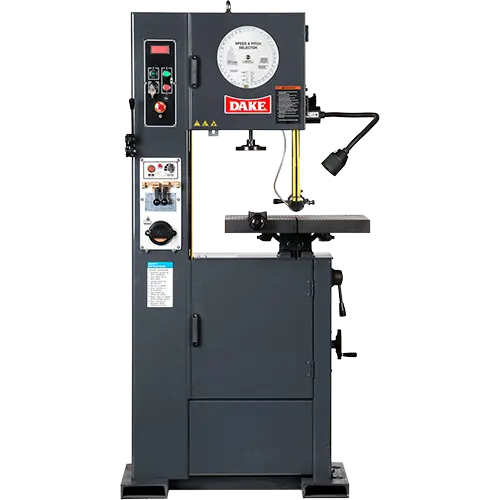

Dake Model V-16 Vertical Bandsaw

Product Description

This heavy duty vertical bandsaw is designed for large production pieces. A 16″ capacity, multi-tilting table, and variable speeds offer cutting capabilities for many applications. Additional features include a digital tachometer, speed and pitch selector, door safety switches, and a work light. Complete with a built in welder/grinder/cutter this saw is sure to get the job done.

*440V model requires step-down transformer for operation (part number: 300674) Sold Separately

Features

  • Heavy duty bandsaw for large production pieces
  • Extra large, multi-tilting worktable
  • Variable speeds for high efficiency cutting
  • Welder, grinder, and cutter
  • Door interlocks
  • Digital Tachometer
  • Blade speed and pitch selector
  • Updated blade guarding

Standard Equipment

  • Heavy-duty frame
  • Tilting Worktable
  • Blade welder, grinder, and cutter
  • Work lamp
  • Chip blower
  • Door interlocks
  • Digital Tachometer
  • Blade speed and pitch selector
  • Upgraded blade guarding

Model Options

  • 440V External Transformer
  • 77178 – Mist System

Specifications

Horsepower 2 HP
Voltage 220V
Blade Width 1/8″ – 5/8″
Blade Length 123-1/2″
Blade Speed 82 – 3,950 ft/min
Worktable Travel Distance n/a
Band Wheels Number 2
Band Wheels Size 16″
Throat Size (Band To Column) 15-1/2″
Maximum Work Height 10″
Work Table Dimensions 21-1/2″ x 24″
Worktable Tilt 15° R / 12° L
Worktable Height 39″
Machine Height 72-1/2″
Machine Floor Space 37″ x 26-1/2″
Weight 904 lbs

Manuals & Downloads

Warning: This product contains Nickel, a chemical known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Compare Industrial Bandsaws

Model Number V-26E V-26 V-16
Part Number 987032-2 987031-2 987030-2
Horsepower (HP) 3 3 2
Voltage 220V 220V 220V
Blade Width (in) 1/4 – 1 1/4 – 1 1/8 – 5/8
Blade Length (in) 184-1/4 184-1/4 123-1/2
Blade Speed (fpm) 550 – 5000 Low 50–415 / High 550–5000 82 – 3950
Worktable Travel Distance (in) 12 n/a n/a
Band Wheels Number 2 2 2
Band Wheels Size (in) 26-1/4 26-1/4 16
Throat Size (Band To Column) (in) 26 26 15-1/2
Maximum Work Height (in) 13 13 10
Work Table Dimensions (in) 23-1/2 x 27-1/2 23-1/2 x 27-1/2 21-1/2 x 24
Worktable Tilt 45° R / 10° L 45° R / 10° L 15° R / 12° L; 8° F / B
Worktable Height (in) 39-3/8 39-3/8 39
Machine Height (in) 84 84 72-1/2
Machine Floor Space (in) 51 x 32 51 x 32 37 x 26-1/2
Weight (lbs) 1540 1540 904
Model Number V-26E V-26 V-16
Part Number 987032-2 987031-2 987030-2
Horsepower (kW) 2.2 2.2 1.5
Voltage 220V 220V 220V
Blade Width (mm) 25 25 16
Blade Length (mm) 4680 4680 3150
Blade Speed (mfm) 550 – 5000 Low 50–415 / High 550–5000 25 – 1200
Worktable Travel Distance (mm) 305 n/a n/a
Band Wheels Number 2 2 2
Band Wheels Size (mm) 667 667 408
Throat Size (Band To Column) (mm) 660 660 408
Maximum Work Height (mm) 330 330 254
Work Table Dimensions (mm) 570 x 670 570 x 670 550 x 600
Worktable Tilt 45° R / 10° L 45° R / 10° L 15° R / 12° L; 8° F/B
Worktable Height (mm) 1000 1000 1000
Machine Height (mm) 2134 2134 1840
Machine Floor Space (mm) 1295 x 813 1295 x 813 940 x 675
Weight (kgs) 700 700 410

†† Discontinued
