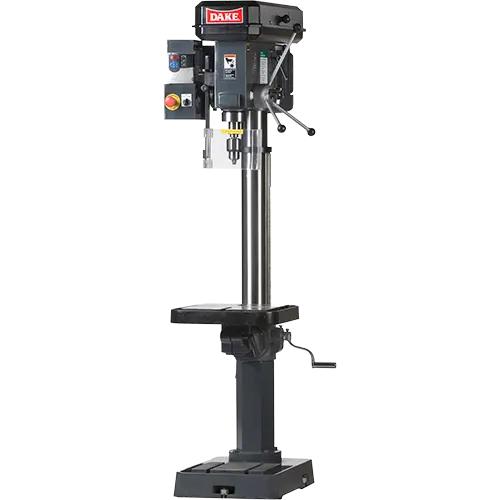

Dake Model SB-32V Variable Speed Floor Drill Press

Product Description

Variable speed floor model drill press that comes with forward and reverse selector switch for tapping applications, and a locking handle hub for repeatable depth. CE safety electrical package, a large diameter sturdy spindle, and a massive cast head make this one tough drill press.

Key Features

  • A locking handle hub with convenient dial-in adjustment and an easy to read scale for fast, accurate, and repeatable depth setting changes
  • Large diameter sturdy spindle for rigid drilling has four bearing points for smooth operation
  • Machined table and base surfaces with t-slots for mounting and fixturing
  • Forward and reverse selector switch for tapping applications
  • Electrical package features on/off switch, emergency stop button, and interlock safety switch for belt cover
  • Massive cast head, machined column, and sturdy cast base reduces vibration
  • Latest frequency inverter technology for easy speed changes and concentrated torque
  • Handle has 3 spokes with spring return for precise operator control and ergonomic operation

Standard Equipment

  • 5/8" Keyed chuck
  • Drift for bit removal
  • Plexiglas chip and chuck guard

Specifications

Spec Value
Drill Capacity 1-1/4″
Horsepower 1.5
Motor 110V, Single Phase
Spindle Taper MT4
Working Diameter 18″
Number Of Speeds Variable Speeds
Spindle Speed Range 46-3,473
Electrics 120V 1 Phase
Weight 483 lbs
Spindle Travel 5-1/4″
Column Diameter 4″
Table Depth 15-3/4″
Table Width 15-3/4″
Base Depth 23-5/8″
Base Width 15″
Spindle To Table 26-1/4″
Spindle To Base 49-1/4″
Overall Height 71″

Model Options

Optional Quick Release Drill Press Vice – Part No. 303322 — view the vise listing
Optional Drill Press Vice – Part No. 303321 — view the vise listing

Manuals & Downloads

Manual
Parts List

Warning: This product contains Nickel, a chemical known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Compare Floor Model Drill Presses

Model Number SB-250V SB-32V SB-25V SB-25 SB-16
Part Number 977701V 977400V 977600V 977600 977200
Drill capacity (in) 1 1-1/4 1 1 5/8
Horsepower 1.5 1.5 1.5 2 1/2
Motor 110V, Single Phase 110V, Single Phase 110V, Single Phase 110V, Single Phase 110/220/440V
Spindle Taper MT3 MT4 MT3 MT3 MT2
Working Diameter (in) 18 18 18 18 14–1/8
Number Of Speeds Variable Speeds Variable Speeds Variable Speeds 9 9
Spindle Speed Range 68–1380 46–3,473 46–3550 270–2000 240–3400
Electrics 120V 1 Phase 120V 1 Phase 120V 1 Phase CE 220/440V CE 120V
Weight (lbs) 483 483 397 397 230
Spindle Travel (in) 5 5–1/4 5 5 3–1/8
Column Diameter (in) 3–5/8 4 3–5/8 3–5/8 3–1/8
Table Depth (in) 15–3/4 15–3/4 13–3/4 13–3/4 11–3/4
Table Width (in) 15–3/4 15–3/4 13–3/4 13–3/4 11–3/4
Base Depth (in) 23–5/8 23–5/8 23–5/8 23–5/8 19–5/8
Base Width (in) 15 15 15 15 12–1/2
Spindle To Table (in) 28–3/8 26–1/4 28–3/8 28–3/8 28–1/2
Spindle To Base (in) 49–1/4 50 50 50 49–1/4
Overall Height (in) 71 71 71 71 64
Model Number SB-250V SB-32V SB-25V SB-25 SB-16
Part Number 977701V 977400V 977600V 977600 977200
Drill capacity (mm) 25.4 31.75 25.40 25.40 15.88
Horsepower 1.5 1.5 1.5 2 1/2
Motor 110V, Single Phase 110V, Single Phase 110V, Single Phase 110V, Single Phase 110/220/440V
Spindle Taper MT3 MT4 MT3 MT3 MT2
Working Diameter (mm) 111 111 111 457.2 358.78
Number Of Speeds Variable Speeds Variable Speeds Variable Speeds 9 9
Spindle Speed Range 68–1380 46–3,473 46–3550 270–2000 240–3400
Electrics 120V 1 Phase 120V 1 Phase 120V 1 Phase CE 220/440V CE 120V
Weight (kgs) 219.09 219.09 180.08 180.08 104.33
Spindle Travel (mm) 133.35 133.35 127 127 79.38
Column Diameter (mm) 92.08 92.08 76.2 76.2 79.38
Table Depth (mm) 400 400 349.25 349.25 298.45
Table Width (mm) 400 400 349.25 349.25 298.45
Base Depth (mm) 600.08 600.08 600.08 600.08 498.48
Base Width (mm) 381 381 381 381 317.50
Spindle To Table (mm) 720.73 666.75 720.71 720.73 723.90
Spindle To Base (mm) 1,250.95 1270 1,250.95 1,250.95 1,250.95
Overall Height (mm) 1,803.40 1,803.40 1,803.40 1,803.40 1,625
