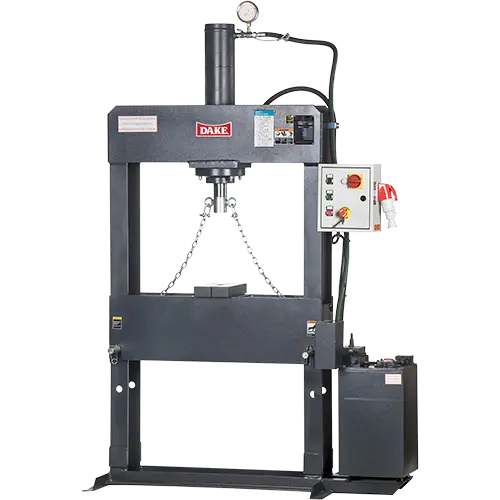

Dake Model Force 40 | Three Phase Dura-Press

SKU 972003-2 972003-4

Regular price: $11,695.00

Regular price: $11,695.00

Quantity

Estimated shipping time

Order cutoff: 5:00 PM Eastern Time
Handling time: 1 to 3 business days
Transit time: 3 to 7 business days
Total delivery time: 4 to 10 business days

These are estimates, not guarantees. We do not warehouse equipment ourselves — your order is placed with the manufacturer once you buy, and most items are released for shipment within 1 to 3 business days. If your item is on back-order, or the manufacturer confirms a longer lead time, we will contact you promptly and you may cancel for a full refund with no fee.

Free shipping is curbside or dock-to-dock delivery to a commercial address in the 48 contiguous states and DC, or parcel delivery for smaller items. We are not currently set up to ship to Alaska, Hawaii, Puerto Rico or other US territories. Liftgate, residential, limited-access and inside delivery, and rigging, are not included — typically $150 to several hundred dollars, quoted in writing and charged only with your prior approval.

Freight deliveries require a scheduled appointment and someone must be present to sign. Please confirm voltage and phase with us before ordering. Need a firm date? Call (720) 575-1376 or email support@techforgedirect.com with the model number.

What is your Return Policy?

30 days to request a return from the date you receive your order. Email support@techforgedirect.com with your order number and reason. We will assess your request and, once approved, send you an RMA number and detailed instructions. Do not ship anything back before you have an RMA number.

1. Return shipping costs

You as the customer are responsible for paying the return shipping costs of the items in your order. On freight-shipped machinery this can be substantial — we quote the exact amount in writing before you commit, so you decide with the full figure in front of you.

2. Preparing your return

Parcel-sized items: we email you a return label, and its cost is deducted from your refund. Freight items are collected under a bill of lading we arrange. The item must be unopened, unused and in delivery condition, including all original packaging and accessories, in a condition such that it can be re-sold as new. Machinery must not have been wired in or powered on. Photographic evidence is required.

3. Restocking fee

Change-of-mind returns carry a 25% restocking fee, deducted from your refund. On a $10,000 machine that is $2,500.

4. Damaged or incorrect products

Note it immediately when signing for delivery and send photographs to support@techforgedirect.com the day of delivery. We will ensure you get the correct product you ordered, undamaged, as soon as possible, at no cost to you — no return shipping charge and no restocking fee.

5. Refunds

Processed within 7 business days of your returned item being received and inspected.

6. Cancellations

Cancel any time before your order ships for a full refund with no fee.

See our full Return and Refund Policy and Cancellation Policy.

Product Description

Dake Model Force 40 | Three Phase Dura-Presses

40 ton double acting hydraulic press for pulling and pressing applications. Adjustable table, pressure preset and lock out so max tonnage can never be exceeded, and rapid ram advance. Joystick operation makes this machine easy to operate. A fast, quiet, dependable, economical price, smooth operating press that is very simple to operate.

40 Ton Capacity
2 HP
35" Width Between Uprights
8" Width Between Table Channels

Specs & Details

Capacity: 40 Tons
Operation: Electric
Horsepower: 2
Voltage: 220V, 3 Phase
Width Between Uprights: 35"
Width Between Table Channels: 8"
Minimum Ram To Table: 7"
Maximum Ram To Table: 32"
Ram Travel: 19"
Screw Travel: n/a
Horizontal Workhead Travel: n/a
Footprint: 63" x 37"
Height: 88"
Weight: 1,210lbs
Base: 63" x 37"
Ram Advance Speed: 68 in/min
Pressing Speed: 7"
RPM: n/a
Air Pressure: n/a

Features

Double acting cylinder design with 5-part oil seals for smooth operation and a tight seal
Welded heavy steel plate frame for greater rigidity
All electrical controls are low voltage (24V)
Preset and factory-sealed relief valve to prevent exceeding pressure capacity
Ram has lifting eyes that attach a chain to hydraulically move the table
2 HP submerged motor drives two centrifugal pumps for quiet, steady oil flow
Smooth, responsive control valve
Rapid advance of the ram to the workpiece – speed shifts automatically when contact is made

Standard Equipment

Frame
2 Steel Table Plates
Lifting Chain
Workhead
Pressure Gauge
Safety Relief Valve

Manuals & Downloads

Compare Three Phase Dura-Presses

Imperial Metric

Model Number	FORCE 200	FORCE 150	FORCE 40
Part Number	972017-2	972016-2	972003
Capacity (tons)	200	150	40
Operation	Electric	Electric	Electric
Horsepower	4	4	2
Voltage	220V 3-Phase	220V 3-Phase	220V 3-Phase
Width Between Uprights (in)	59	59	35
Width Between Table Channels (in)	14	14	8
Minimum Ram To Table (in)	9	14	7
Maximum Ram To Table (in)	35	35	32
Ram Travel (in)	19	19	19
Screw Travel (in)	n/a	n/a	n/a
Horizontal Workhead Travel (in)	n/a	n/a	n/a
Footprint (in)	103 x 48	98 x 47	63 x 37
Height (in)	114	106	88
Weight (lbs)	8,467	5,711	1,210
Base (in)	103 x 48	98 x 47	63 x 37
Ram Advance Speed (in/min)	47	49	68
Pressing Speed (in/min)	7	7	7
RPM	n/a	n/a	n/a
Air Pressure	n/a	n/a	n/a

Model Number	FORCE 200	FORCE 150	FORCE 40
Part Number	972017-2	972016-2	972003
Capacity (tons)	200	150	40
Operation	Electric	Electric	Electric
Horsepower	4	4	2
Voltage	220V 3-Phase	220V 3-Phase	220V 3-Phase
Width Between Upright (mm)	1,498.60	1,498.60	889
Width Between Table Channels (mm)	355.60	355.60	203.2
Minimum Ram To Table (mm)	288.60	355.60	177.8
Maximum Ram To Table (mm)	889	889	812.8
Ram Travel (mm)	482.60	482	482.6
Screw Travel (mm)	n/a	n/a	n/a
Horizontal Workhead Travel (mm)	n/a	n/a	n/a
Footprint (mm)	2,616.2 x 1,219.2	2,489.20 x 1,193.8	1,600.2 x 939.8
Height (mm)	2,895.60	2,692.40	2,235.2
Weight (kgs)	2,590.47	2,590.47	548.85
Base (mm)	2,616.2 x 1,219.2	2,489.20 x 1,193.8	1,600.2 x 939.8
Ram Advance Speed (mm/min)	1,193.80	1,244.60	1,727.2
Pressing Speed (mm/min)	177.8	177.8	177.8
RPM	n/a	n/a	n/a
Air Pressure	n/a	n/a	n/a

†† Discontinued
