Full Spectrum Laser

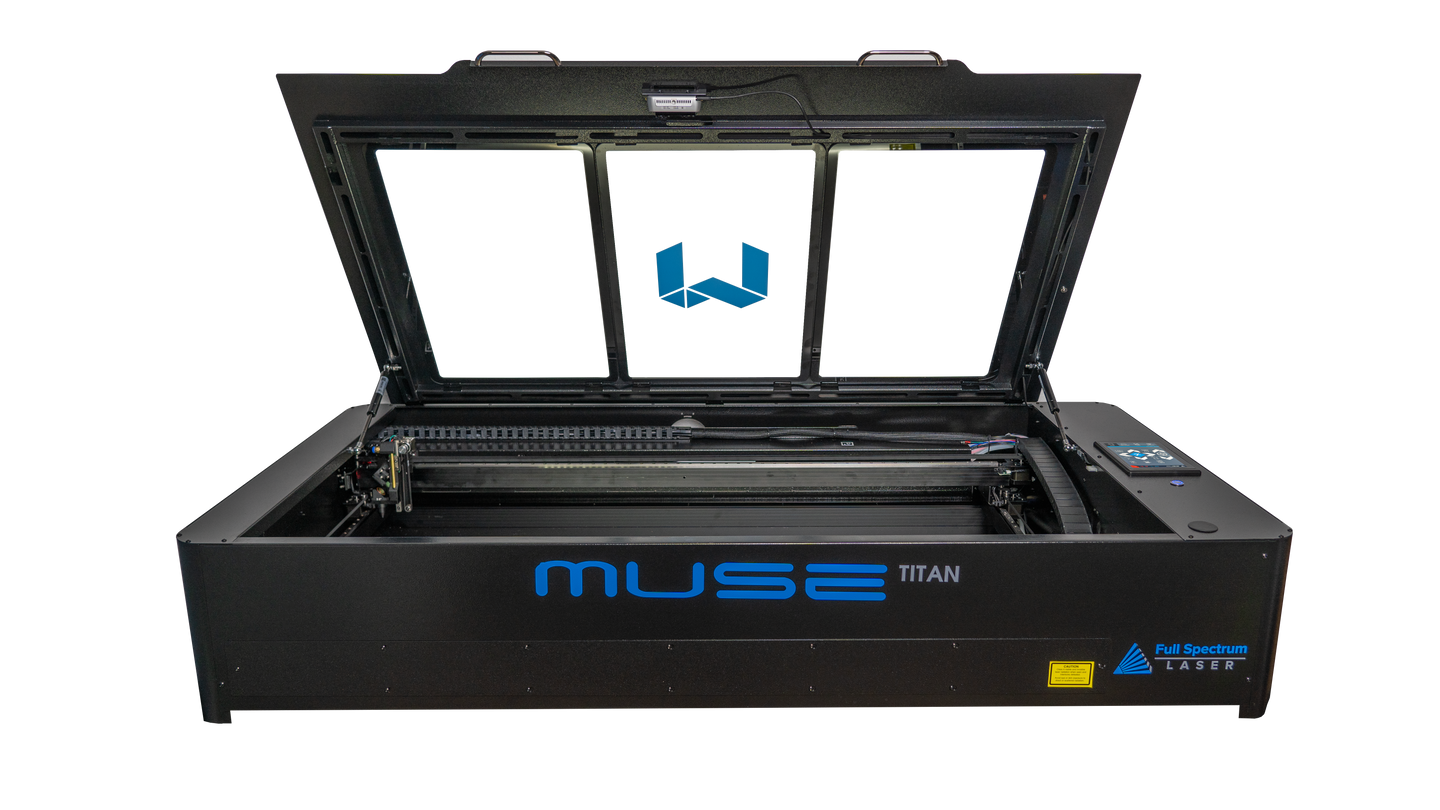

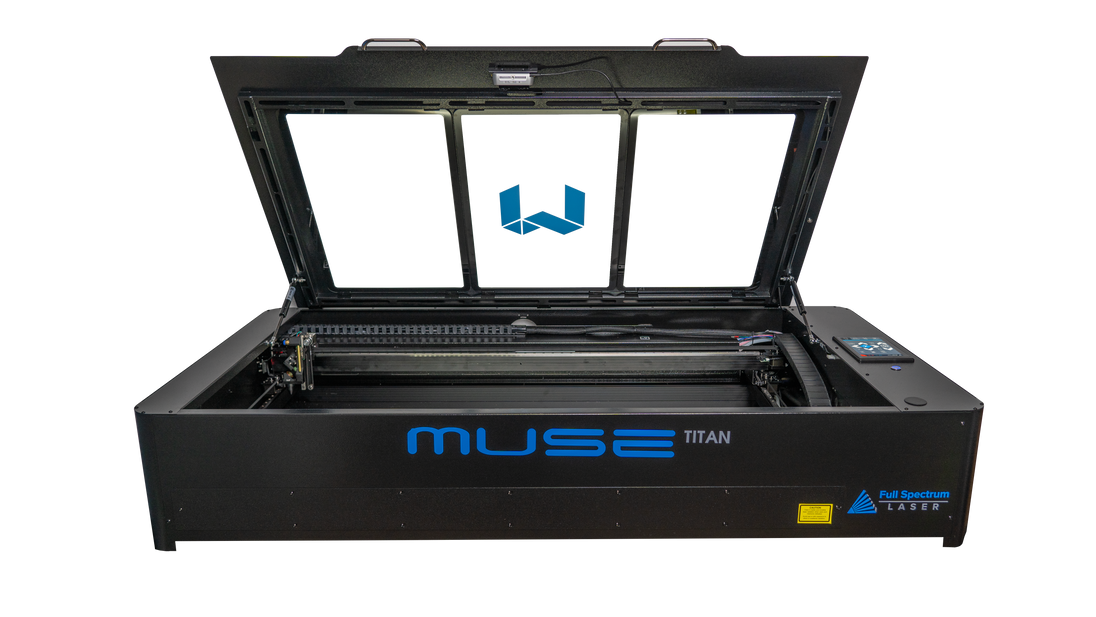

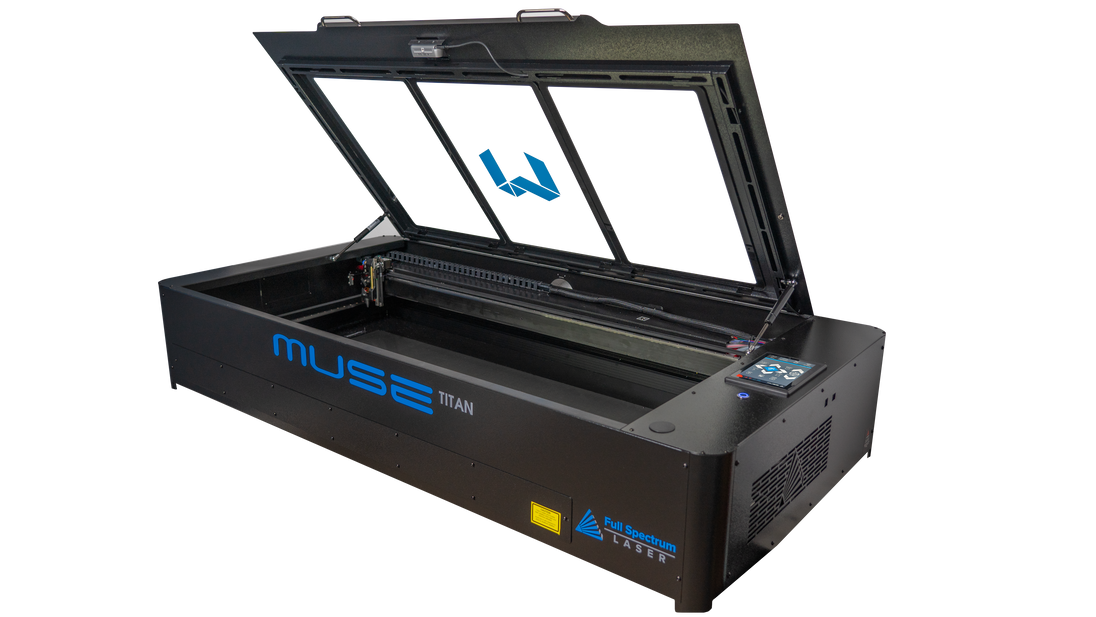

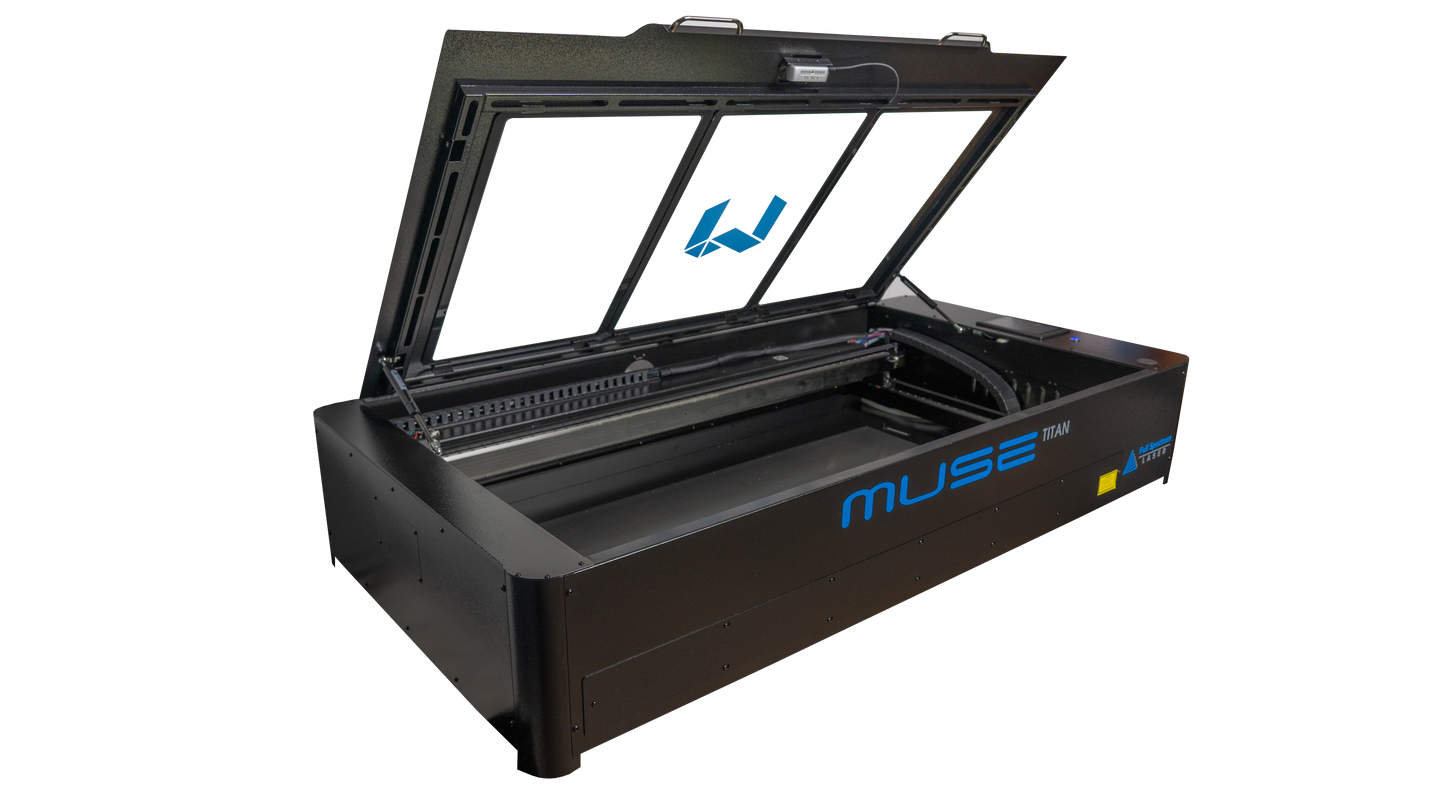

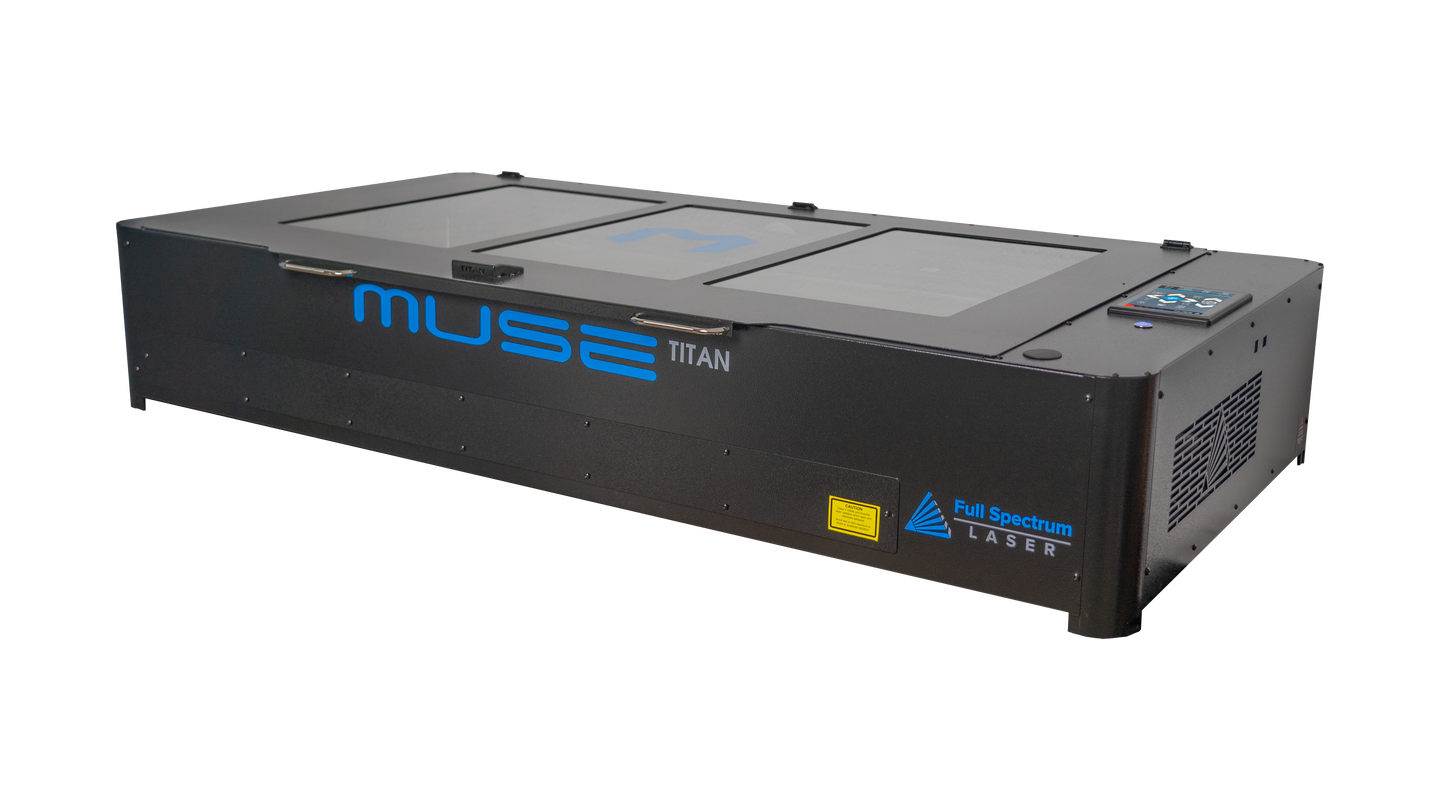

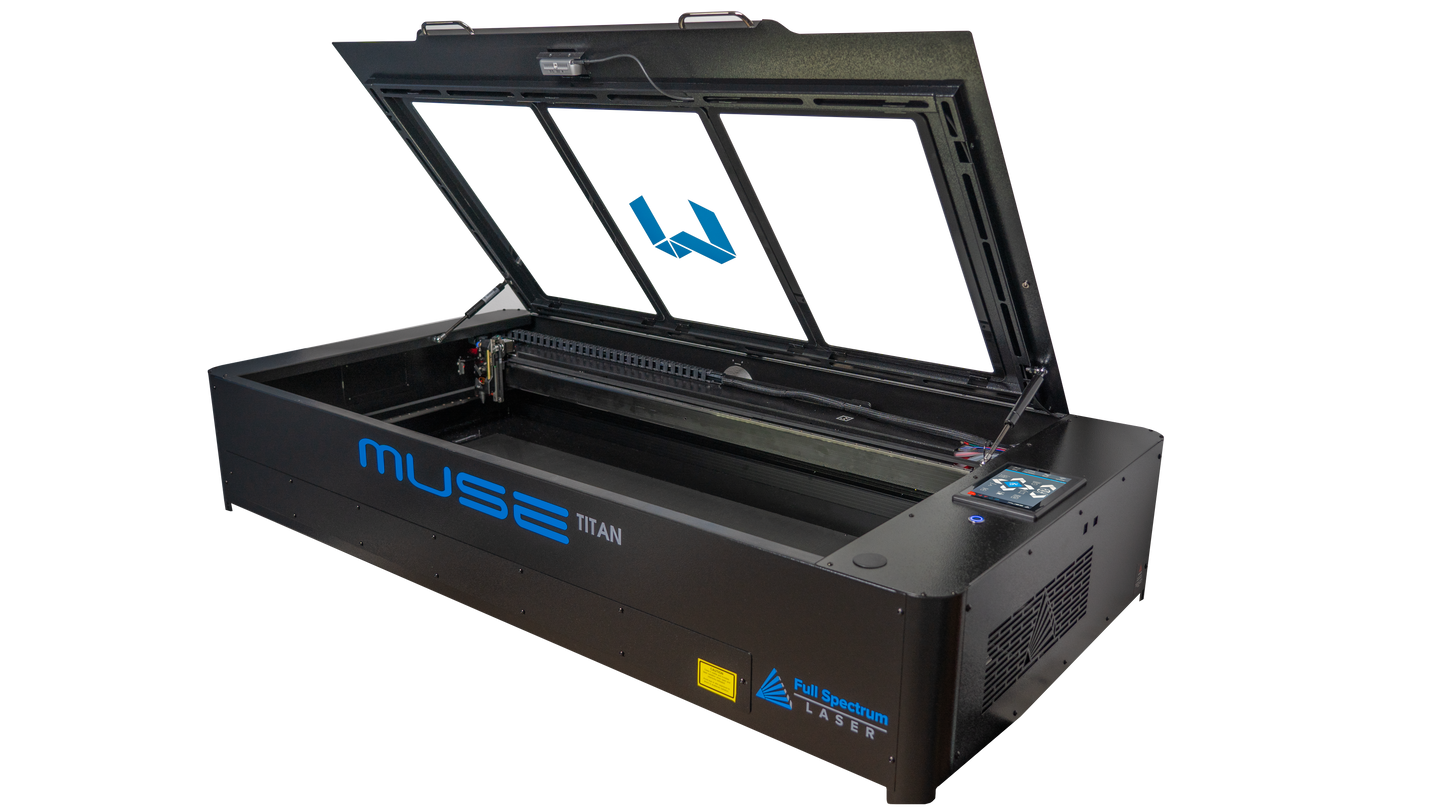

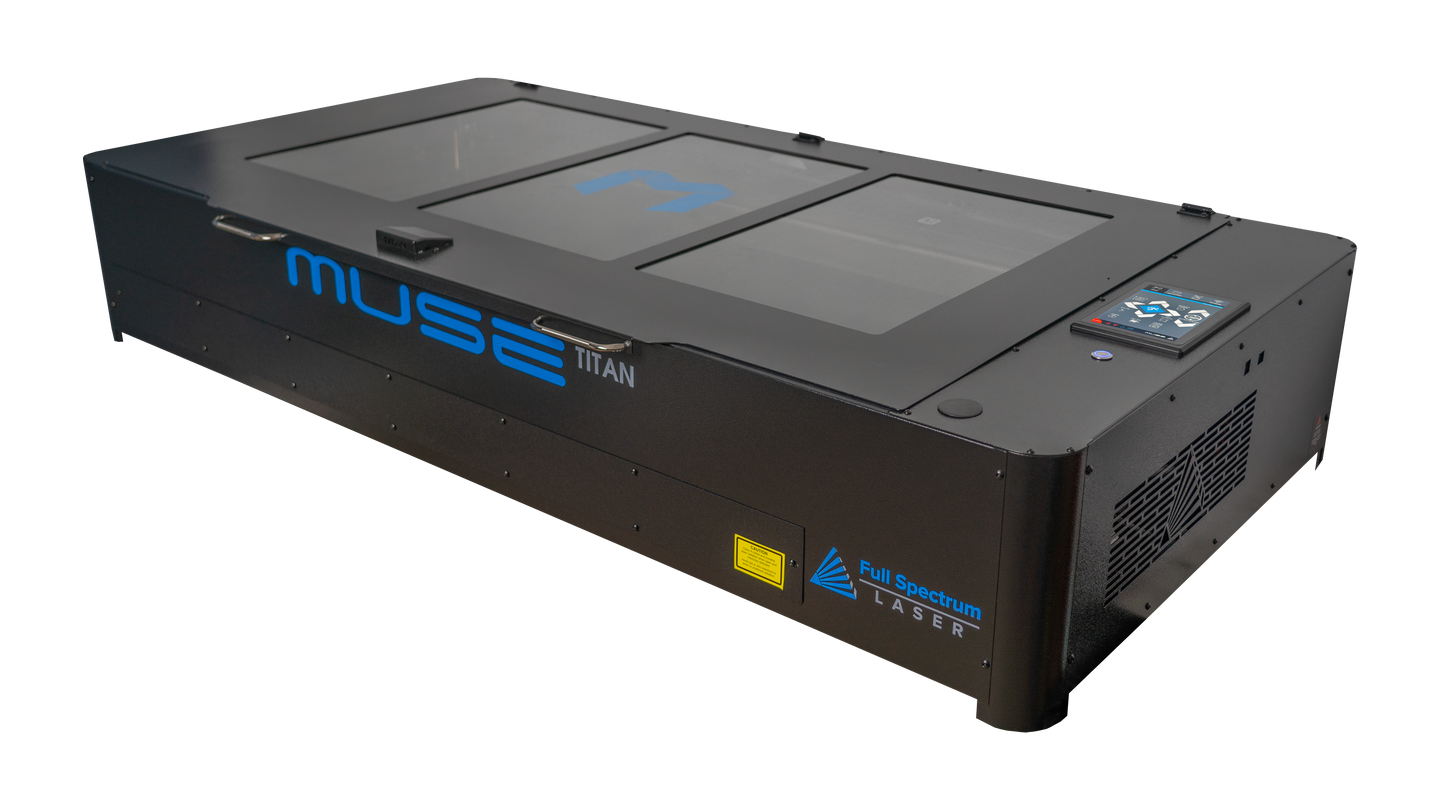

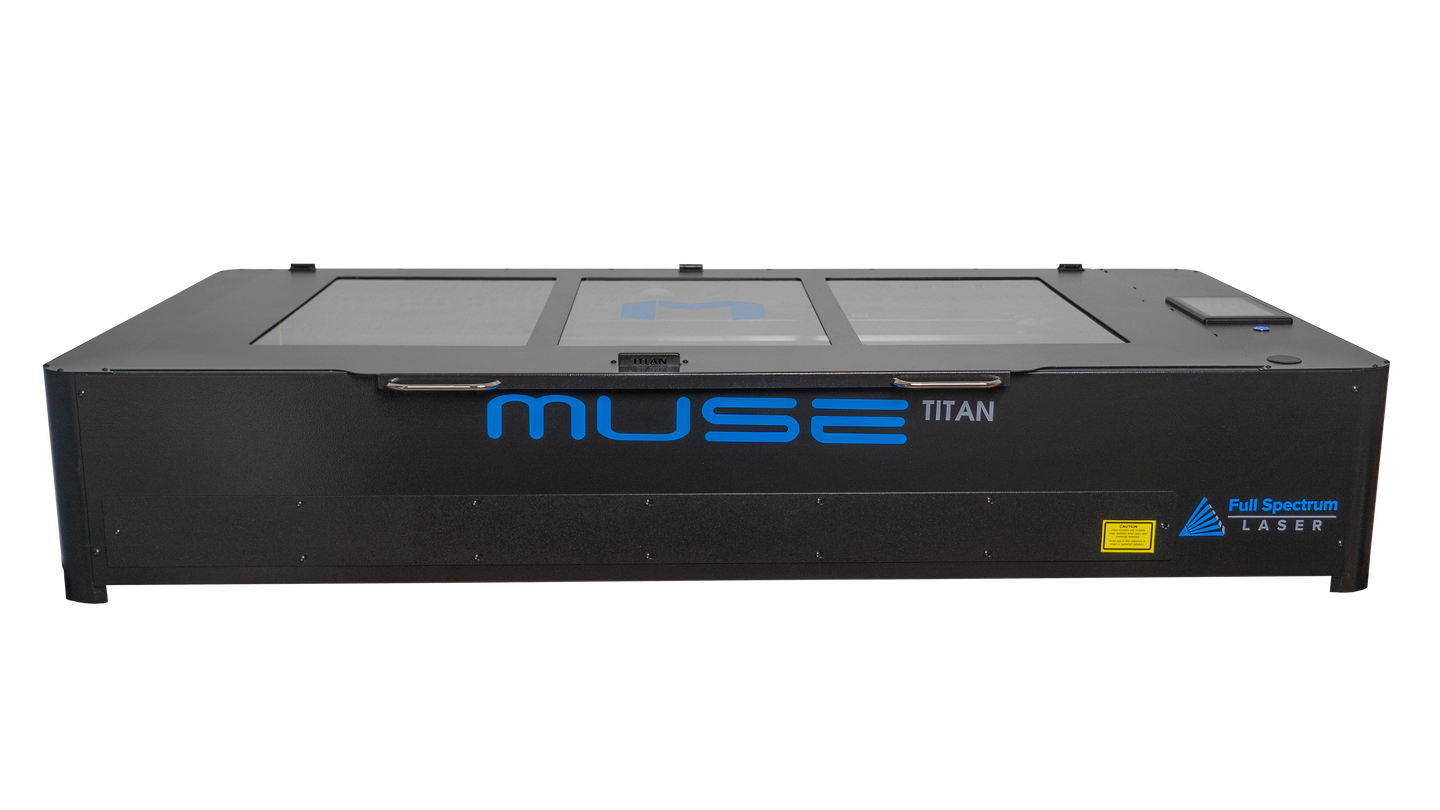

Muse Titan v3 48x24 CO2 Laser with AI 3D Camera

SKU MUSETITAN
$8,495.00
$8,495.00

NOTE: TechForge Direct is an authorized dealer for Full Spectrum Laser within the United States. This product is sold new, in original manufacturer packaging, with applicable manufacturer warranty, and is available for sale within the United States only.

CO2 Gantry
Redesigned laser head and optics for better performance; Integrated cooling with temperature sensor for a more efficient operation; New linear rails on X-axis and Y-axis for improved accuracy.

Estimated shipping time

Order cutoff: 5:00 PM Eastern Time
Handling time: 1 to 3 business days
Transit time: 3 to 7 business days
Total delivery time: 4 to 10 business days

These are estimates, not guarantees. We do not hold stock — your equipment is ordered from the manufacturer once you order. If your item is on back-order, or the manufacturer confirms a longer lead time, we will contact you promptly and you may cancel for a full refund with no fee.

Free shipping is curbside or dock-to-dock delivery to a commercial address, or parcel delivery for smaller items. Liftgate, residential, limited-access and inside delivery, and rigging, are not included — typically $150 to several hundred dollars, quoted in writing and charged only with your prior approval.

Freight deliveries require a scheduled appointment and someone must be present to sign. Need a firm date before you buy? Call (720) 575-1376 or email support@techforgedirect.com with the model number.

What is your Return Policy?

30 days to request a return from the date you receive your order. Email support@techforgedirect.com with your order number and reason. We will assess your request and, once approved, send you an RMA number and detailed instructions. Do not ship anything back before you have an RMA number.

1. Return shipping costs

You as the customer are responsible for paying the return shipping costs of the items in your order. On freight-shipped equipment this can be substantial — we quote the exact amount in writing before you commit, so you decide with the full figure in front of you.

2. Preparing your return

Download and print the return shipping label provided in our email and affix the label to the outside of the package. The item must be unopened, unused and in delivery condition, including all original packaging and accessories, in a condition such that it can be re-sold as new. Machines must not have been powered on or put into service. Photographic evidence is required.

3. Restocking fee

Change-of-mind returns carry a 25% restocking fee, deducted from your refund. On an $8,000 machine that is $2,000.

4. Damaged or incorrect products

Note it immediately when signing for delivery and send photographs to support@techforgedirect.com the day of delivery. We will ensure you get the correct product you ordered, undamaged, as soon as possible, at no cost to you — no return shipping charge and no restocking fee.

5. Refunds

Processed within 7 days of your returned item being received and inspected.

6. Cancellations

Cancel any time before your order ships for a full refund with no fee.

See our full Return and Refund Policy and Cancellation Policy.

Weight: 450.0 lbs
Dimensions: 80.0" × 48.0" × 48.0"

Authorized Full Spectrum Laser dealer
US-based expert support
Financing available
Talk to us: (720) 575-1376

Product Description

CO2 Applications

CO2 lasers operate at 10.6 µm wavelength which is strongly absorbed by organic materials. This makes them the default choice for cutting and engraving wood, acrylic, leather, fabric, paper, rubber, foam, and stone. Engraving quality on wood is outstanding and CO2 is the only practical way to cleanly cut clear acrylic. CO2 is also excellent at removing paint from tumblers and coated surfaces — the beam ablates the coating while leaving the metal substrate untouched.

Best Fit

  • Signage, awards, gifts, and personalization shops
  • Prototyping and production cutting of sheet materials
  • Tumbler and drinkware customization

Common Materials

  • Wood, plywood, MDF, bamboo
  • Acrylic, delrin, mylar, and most plastics (not PVC)
  • Leather, fabric, felt, paper, cardstock, foam, rubber

Typical Outputs

  • Cut parts, engraved wood signs, and acrylic displays
  • Leather goods, fabric patterns, and paper crafts
  • Tumbler paint removal, glass engraving, stone etching

Why Teams Choose CO2

  • Cuts wood, acrylic, leather, fabric, paper, foam, and rubber
  • Excellent engraving quality on wood — photo-realistic detail
  • Removes paint and coatings from tumblers without damaging metal underneath
  • Most applications on non-metals; for metals use UV or fiber

In Stock - Ships in 1-2 weeks (after final QC)

With a 48"x24" workspace and up to a 100W Power, the Muse Titan Laser Cutting and Engraving Machine is the largest desktop laser out there, but it can still fit through a standard doorway.

Now the Muse Titan v3 is even better with new innovations including:

  • Redesigned laser head and optics for better performance
  • Integrated cooling with temperature sensor for a more efficient operation
  • New linear rails on X-axis and Y-axis for improved accuracy
  • Upgraded tempered glass lid for better clarity and higher scratch resistance vs acrylic lid
  • Upgraded telescoping Z axis with swivel mount
  • All new 3D camera algorithms for sub-mm precision

Key Features and Innovations

  • Browser BASED SOFTWARE - Windows, Mac and Linux compatible
  • REMOVABLE FLOOR - enables users to engrave objects larger than the machine itself
  • FOUR WAY PASS-THROUGH - using the removable floor, the feet of the machine enable material to be fed under the machine on any side
  • FRONT TO BACK PASS-THROUGH - new feature without removing the floor but still feed material 48" through machine
  • ALL AXIS STEEL SQUARE LINEAR RAILS - square linear rails on every axis (XYZ) for best accuracy and reliability
  • DUAL Y-AXIS OMEGA DRIVE SYSTEM - uses half the belt length of traditional belt pulley systems for decreased belt stretch for higher accuracy
  • 7" LCD TOUCH SCREEN - allows users to control major functions right from the machine
  • ROTARY ATTACHMENT - (optional) allows for cylindrical objects such as cups to be engraved
  • PRECISION 3D CAMERA - takes 3D images of what's inside your laser for design placement, along with the ability to watch jobs in progress
  • TELESCOPING ALL METAL AIR ASSIST - all metal telescoping air assist design is fire/melt proof (air compressor sold separately)
  • AUTOFOCUS - Automatically focuses your laser so you don't have to
  • TECHNICAL SUPPORT - via phone and email
  • 1 YEAR WARRANTY

Tech Specs

Weight & Dimensions

Workspace Area 48" x 24"
Machine Dimensions 66" x 33" x 14"
Weight 176 lbs
Z-Table Range 3.5" (89mm)

Laser

Laser Classification Class 3R
Laser Type C02
Laser Power 75W/90W/100W
Focus Lens Included 2.0 Inch

Power

Power Supply AC 110v native (220V option available)
Gross Power < 1000W

System

Operation Modes Precision Engraving, Cutting, or a Combination

Materials

Material Cuts Engraves
Acrylic ✓ ✓
Coated Metals x ✓
Fabric ✓ ✓
Glass x ✓
Leather ✓ ✓
Paper ✓ ✓
Rubber ✓ ✓
Stone x ✓
Wood ✓ ✓

Software

Software RetinaEngrave v3.0 - Nothing to download, runs in your browser
Compatibility PC, Mac & Linux
Browser Compatibility Google Chrome (recommended), Safari, Firefox, Edge
File Import Options PDF, JPG, PNG, BMP, TIFF, SVG, DXF, DWG, Works with Any Program that can Print in Windows or Mac or Linux
Minimum Screen Resolution 1024 x 768 Pixels
Wireless Compatibility 802.11n

What's Included

  • 3-Piece Honeycomb Table

Inspire. Design. Create.

Muse Titan has a large cutting area of 48"x24" but can fit through any door way and placed on a standard tabletop. Muse Titan features FSL's newest advances: 3D Scan and 3D Cut Technology, removable bottomless Z floor, the powerful yet easy-to-use self-hosted browser based RetinaEngrave v3.0 laser control and design software, as well as optional rotary and optional encoders on all motor axis.

From creating original art to starting your own small business, Muse offers the best, most innovative technology in the desktop laser market.

Muse Titan Desktop Laser System

Endless Possibilities

  • Large 48"x24" cutting area but fits through almost any doorway or corridor
  • High power 75w/90w/100w tube options for cutting thicker material
  • Patented removable floor and four way pass-through to engrave on material larger than the internal work area
  • Travelling tube gantry design for easy alignment
  • Sleek onboard LCD touchscreen control
  • Cuts up to 1/2 inch material
  • Engraves up to 1000 dpi resolution
  • Optional 5120 dpi motor encoders on X,Y,Z axes for closed loop control reliability and accuracy
  • Optional accessories like the rotary and riser engrave on rounded or larger objects

Motorized Autofocus

A clever mechanical sensor built into the laser head itself provides backup height data when 3D camera data is unavailable. This allows for different focus points to be set ahead of time on materials of varied thickness. This will help you move more quickly between engravings giving you time to get more accomplished.

Intel RealSense™ 3D Camera

2D camera technology can only be used for flat surfaces and cannot compensate for curved or warped surfaces or varying heights. The Muse Titan with Autofocus utilizes Intel's 3D RealSense technology to accurately map millions of 3D data points. Engrave or cut on variable material heights in a single job, including curved surfaces.

Watch your jobs on mobile devices and more! A live view of the camera is available on the touchscreen, within RE3 and on mobile devices.

The Best Laser Control Software on the Market!

The powerful, easy-to-use RetinaEngrave v3.0 software lives right on your laser and is accessed using your favorite web browser and operating system. Simply input the IP address of your machine into your browser address bar and you are ready to go. Best part? There's nothing to download, ever.

Welcome to the future of laser control & design software!

Muse Titan Laser at a Glance

Standard Laser Tube 75W CO2
Laser Tube Upgrades 90W, 100W CO2
X-Y Working Area 48" x 24"
Working Z-Height 3.5"
Removable Floor Yes
Rotary Available Yes
Power Requirements 120V AC

The Perfect Accessories

Choose your cooling system for peak performance of the laser.

Engrave curved objects with a rotary attachment. Work with tumblers, glassware and more.

Increase your laser tube power to accelerate cutting speed and marking ability.

...plus fume extractors, specialty focus lenses and more!

Shipping Weight & Dimensions

Shipping Weight 450.0 lbs
Shipping Dimensions 80.0" x 48.0" x 48.0"

Three Muse CO2 Models to Meet your Needs
